Summary of Contents for Atlona AT-PA100-G2
-

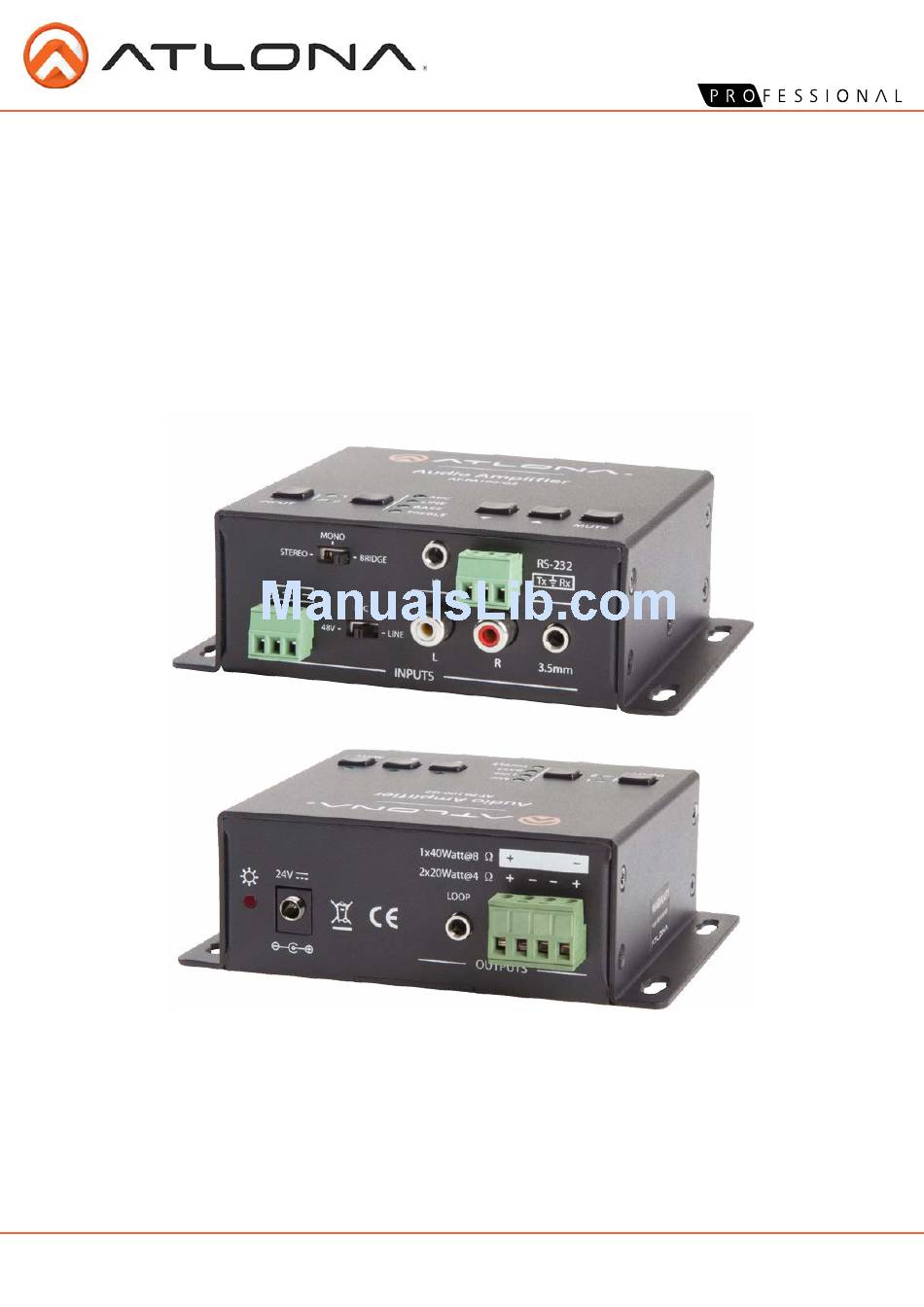

Page 1: User Manual
Atlona Stereo/Mono Audio Amplifier AT-PA100-G2 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
6. MIC Connection ..................6 7. Output Connection ..................7 8. Connection and Installation ..................8 9. RS-232 ..................8-9 10. Safety Information ..................10 11. Warranty ..................11 12. Atlona Product Registration ..................12 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
• 1 x User Manual Features • AT-PA100-G2 is a class D amplifier which uses less energy, doesn’t require heat syncs or power transformers, making it smaller than a class A/B amplifier • Stereo, mono, and bridge audio speaker output connections available through captive screw •... -

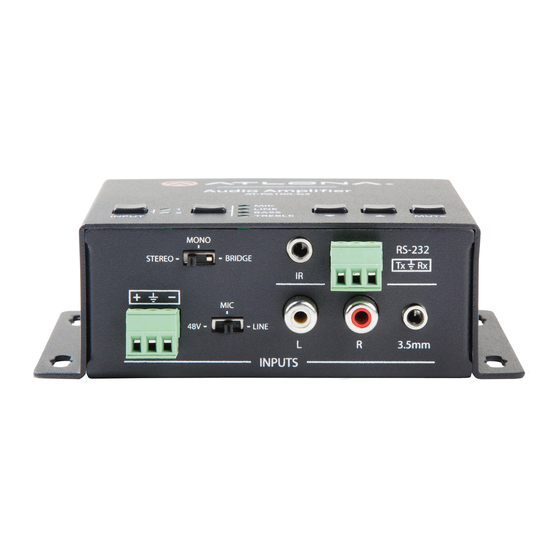

Page 4: Specifications
4. Captive Screw Input: Connect a MIC 5. Audio input switch: Switch between 48V Phantom powered condenser MIC, Dynamic MIC, or LINE 6. L/R audio: Connect Analog audio into this port 7. 3.5mm audio: Connect Analog audio into this port Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
Back Panel 1. Locking 24V Port: Connect included locking power supply here. 2. 3.5mm variable audio loop out: Loop out to another AT-PA100-G2 or audio amplifier with a 3.5mm stereo audio connector 3. Captive Screw Audio: Connect to speakers Note: In a cascading chain, the AT-PA100-G2s will share the source of the 1 AT-PA100-G2. -
Page 6: Mic Connection
Either Unbalanced connection may be used. NOTE: The MIC input has a power saving standby mode. When the MIC does not receive an audio signal for 8 seconds it will go into mute/standby mode. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Output Connection
Dual Channel Mono and will output 20W per channel in this mode. Mono Channel (20W) Mono Channel (20W) Bridged Bridged audio will combine both L and R channels into one and outputs 40W to a Mono single speaker. Channel (40W) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Connection And Installation
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground 9 8 7 6 ---- Not used ---- Not used ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 9 Note: Factory Default settings, when first turned on, are: volume 50, bass 4, and treble 4. Note: The AT-PA100-G2 has last memory, so if the power is lost the volume, bass, and treble settings will remain the same as before the power loss.
-
Page 10: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-PA100-G2. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 11: Warranty
Atlona can also be contacted directly. Visit www.atlona.com for Atlona’s contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns. -
Page 12: Atlona Product Registration
Atlona, Inc Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
