Creating an alias for a logical disk

You can create alias (user-friendly) names for logical disks (LUNs) to help you easily identify them in Simple
SAN Connection Manager.
To create an alias for a logical disk:
1. On the LUN Assignment map, right-click a logical disk (LUN) icon, and then on the shortcut menu, click
Create Alias for Logical Disk.
The Create Alias for Logical Disk dialog box

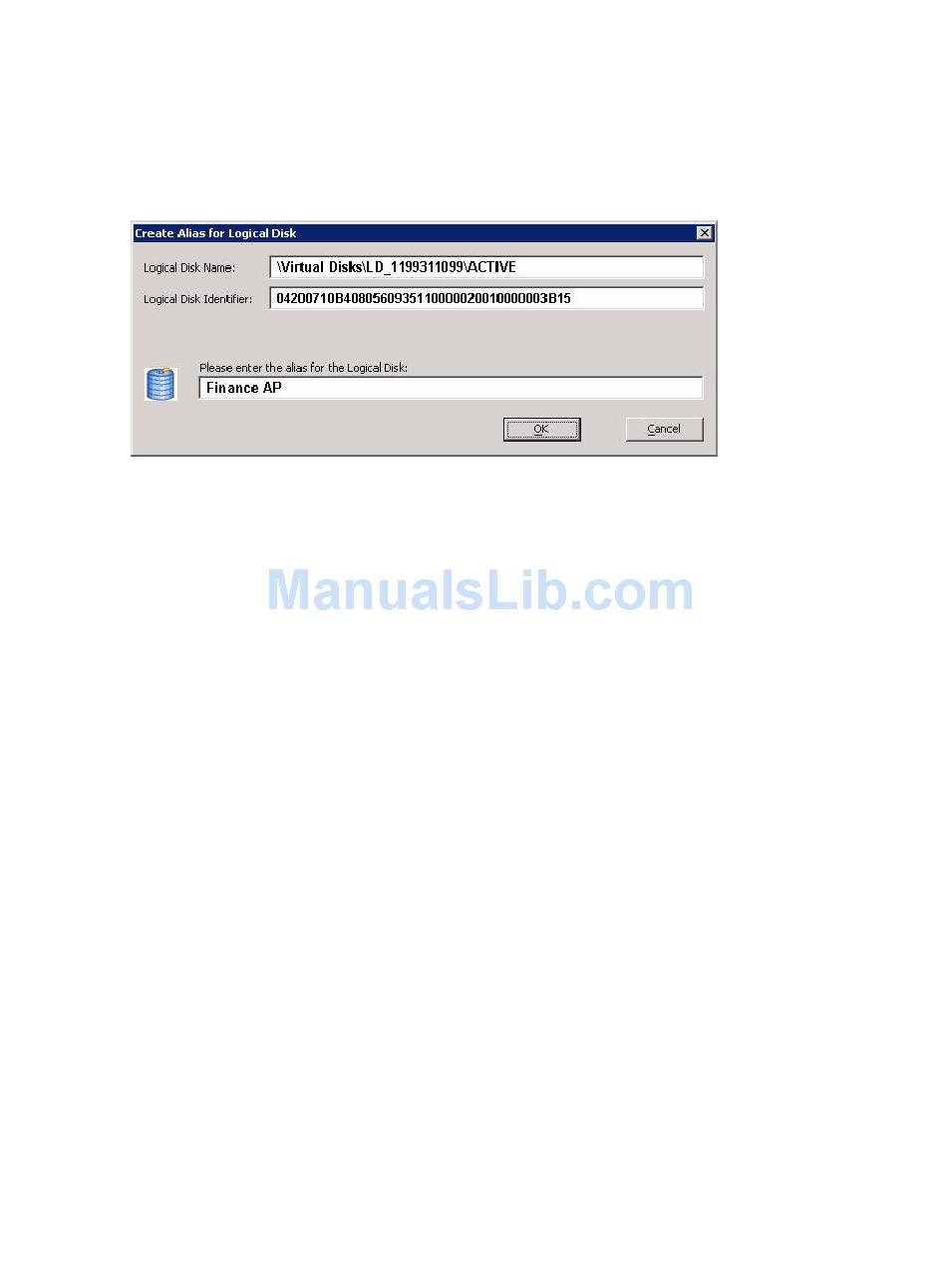

Figure 67

Create Alias for Logical Disk dialog box

2. Enter an alias name to replace the logical disk name, and then click OK.
The LUN Assignment map is updated with the new logical disk alias name.
(Figure 67) shows the logical disk name and identifier.
