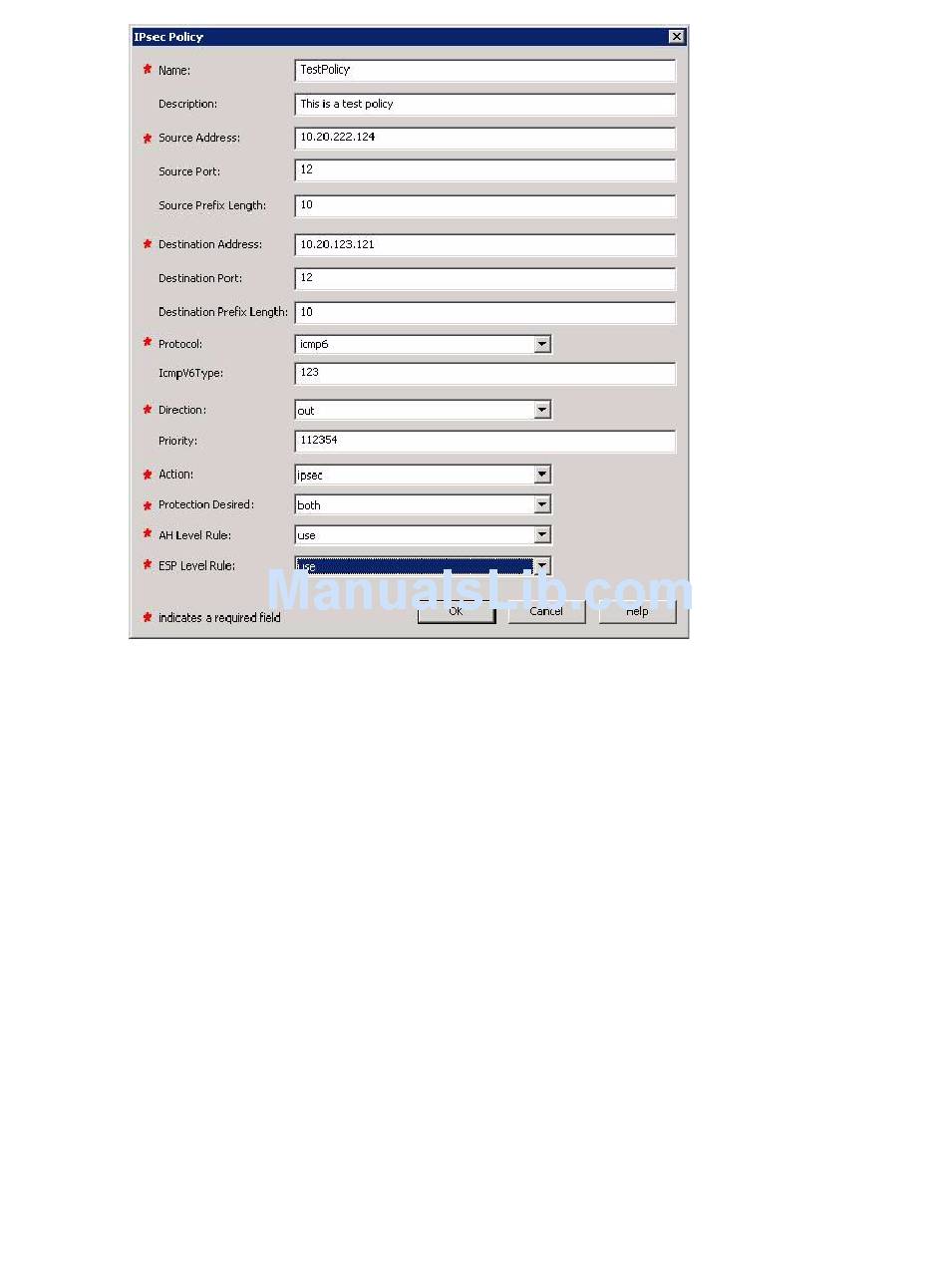

Figure 41

IPsec Policy dialog box

3. Complete the IPsec Policy dialog box as follows:
Name
Description
Source Address
Source Port
Source Prefix Length (Optional) Specify the length of the prefix in the source address by entering a
Destination Address Enter either a valid IPv4 address, a valid IPv6 address, or a valid DNS host
Destination Port
Destination Prefix
Length
Enter a unique alphanumeric name that starts with a letter, does not contain
spaces, and does not exceed 32 characters. You may include the following
special characters: ampersand (&), hyphen (-), circumflex (^), and underscore
(_).
(Optional) Enter a description of the IPsec policy.
Enter either a valid IPv4 address, a valid IPv6 address, or a valid DNS host
name.
(Optional) Enter a number in the range of 1 to 65535.
number in the range of 0 to 64.
name of the host, switch, or gateway receiving data. If you entered an IP address
for the Source Address, the Destination Address must use the same IP version
format.
(Optional) Specify the destination port number by entering a number in the
range of 1 to 65535.
(Optional) Specify the IPv4 or IPv6 subnet mask length by entering a number in
the range of 0 to 64. For IPv4 [0..32]; for IPv6 [0..128].
