e. Unpack and install the disk modules.
CAUTION
Handle disk modules very carefully as they can be damaged easily by shock and vibration.
Strap the ESD wrist strap to your wrist and ground it to the disk array chassis (or suitable ground).
Place the disk module on an ESD conductive sheet when it is removed from its carton. Use ESD
kit P/N 5182-4119 (supplied with each disk array).
Make sure each disk module's label, which shows its slot ID (A0, for example), is present.
The disk modules must be installed in the slot that matches the slot ID on the label. For the slot ID numbers, refer to
the disk array chassis illustrations in chapter 1 of the Hewlett-Packard Model 30/FC High Availability Disk Array
Service Manual (A3661-90002). Make sure that all the disk slots contain disk modules or filler panels to ensure
proper cooling.
– Observe anti-static precautions.
– Locate the slot where the disk module is to be installed (see figure 17).
– Write the slot number the disk is being installed into on the label affixed to the disk module; for example, A1.
– Install the disk module gently but firmly by sliding it into the slot. Rough handling can damage the disk module.
Seat the disk module slowly into the connector.
Disk module's
Rail slot
rail

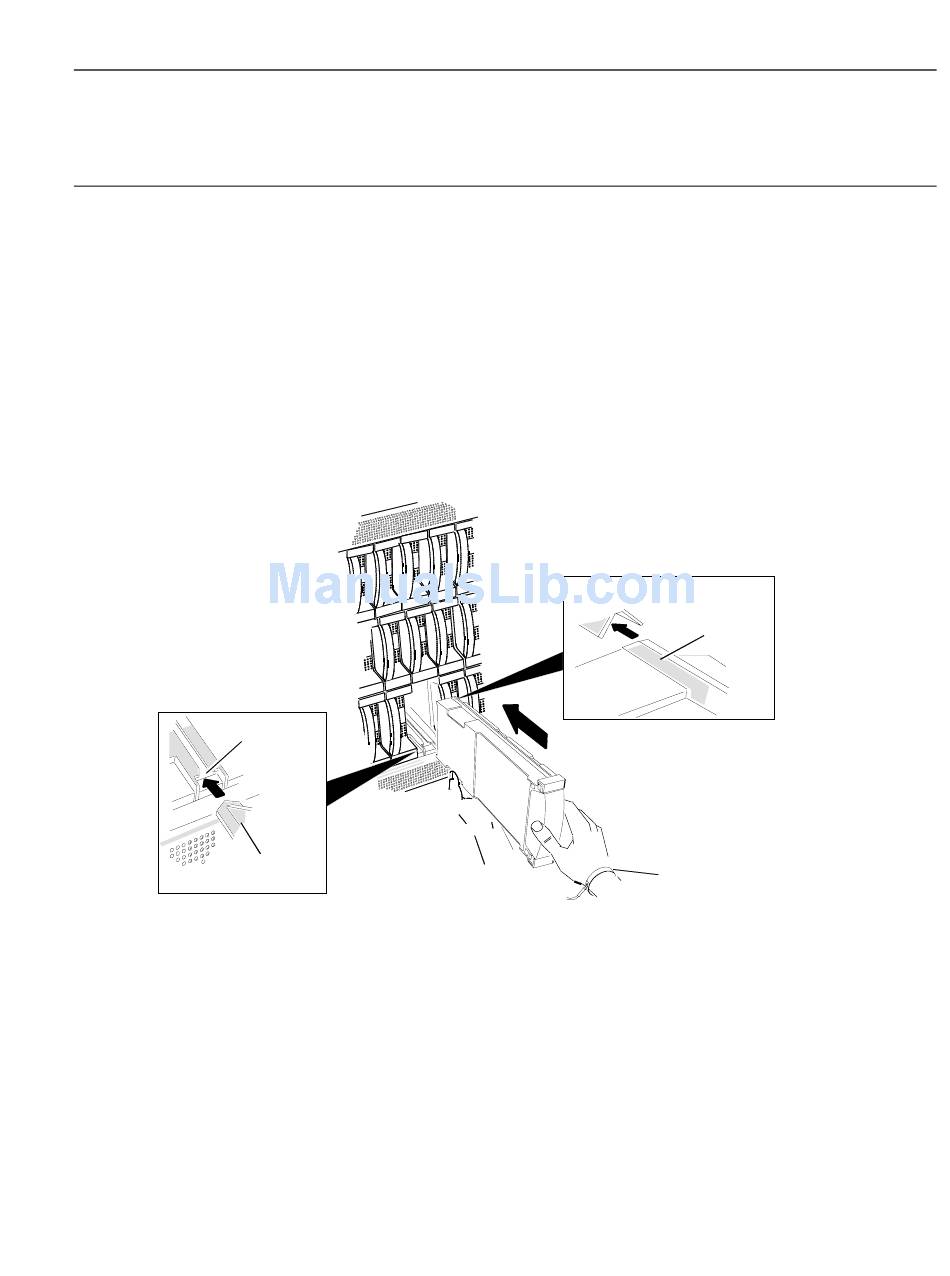

Figure 17. Installing a disk module
Guide slot
22
Disk module's
guide
ESD wrist strap
