Remove the battery backup unit (BBU) from the back of the disk array.

–

Locate the BBU. It is above the power supply units.

–

Grasp the BBU by inserting your thumbs in the holes and your forefingers into the latches.

–

Slide the latches inward and hold.

–

Pull the BBU out of the chassis.

CAUTION

Use caution when removing the BBU. It is very heavy.

Back of storage system

SP B

SP A

BBU

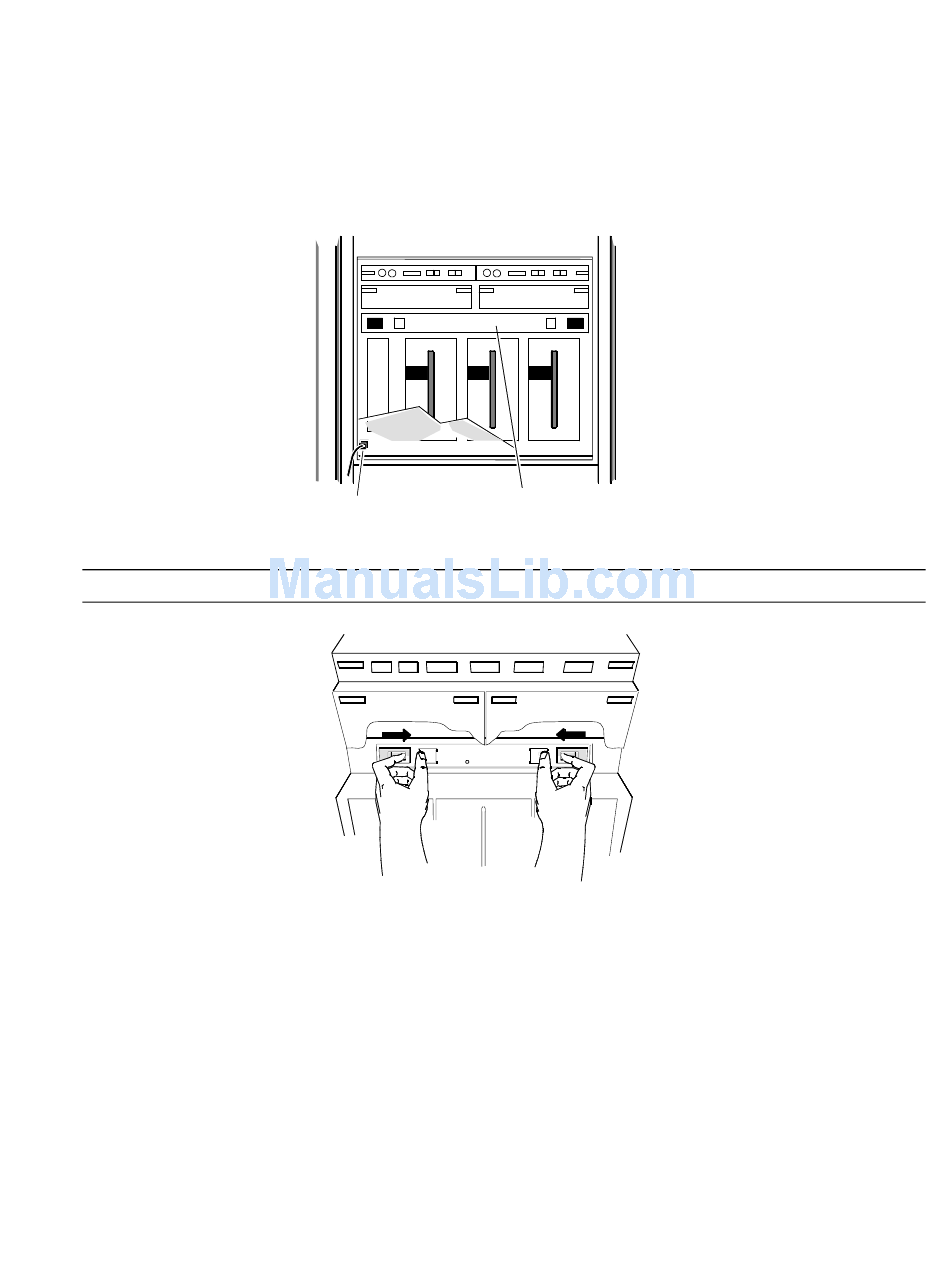

Figure 13. Location of the BBU

Figure 14. Removing the BBU
