HP D5970A - NetServer - LCII Configuration Manual page 49

4. Repeat steps 1 through 3 to assign a drive letter for each array to be shared in the cluster.
Format Logical Drives
1. Click a disk box to select one of the arrays that you just partitioned and assigned a drive letter.
Disk Administrator highlights the selected disk.
2. From the Disk Administrator's Tools menu, choose Format.
A dialog appears with a list of formatting options.
3. In the Format dialog make sure that File System is set for NTFS.
4. In the Volume Label field type a label (name) for the drive.
Choose a descriptive label such as "Shared Drive X.".
HP NetServer Installation Guide

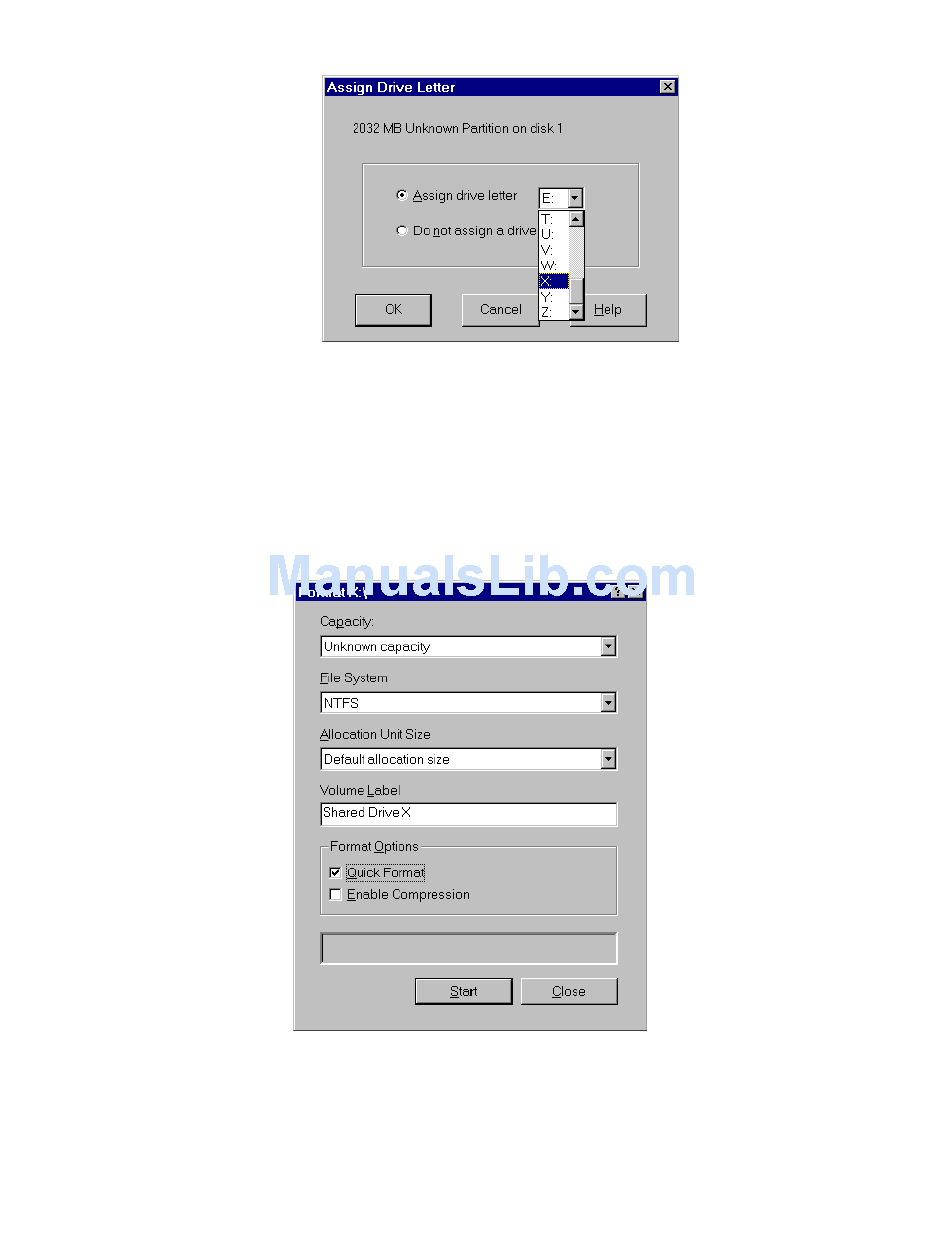

Disk Administrator, Assigning Drive Letters
Disk Administrator, Formatting and Assigning Volume labels
35
