Left Guide Removal - Lexmark T430 Service Manual

4048-1xx

Left guide removal

1. Remove the controller card cage. See
(with card in place) removal" on page
2. Remove the charge roll. See
page 4-38.
3. Remove the top cover assembly. See
removal" on page

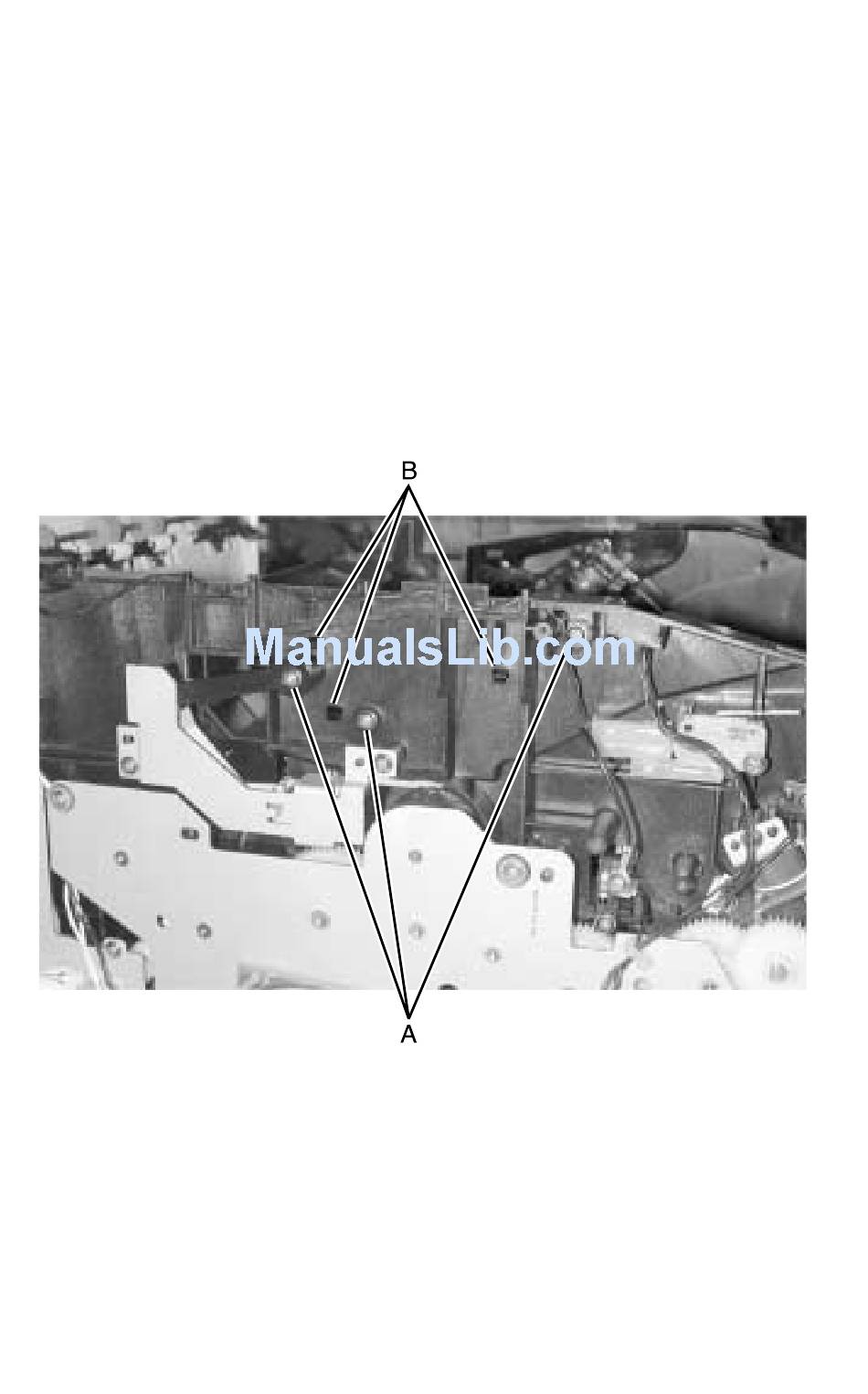

4. Remove the three screws as shown (A).
5. Press the three latches (B) while separating the left guide from
the frame.
6. Remove the HVPS. See
4-40
Service Manual
"Charge roll removal" on
4-11.
"HVPS card removal" on page
"Controller card cage
4-48.
"Top cover assembly
4-75.
