Removing the Bezel Blank
On some models, a bezel blank covering the 5.25-inch external drive bay must be removed before
installing a drive. To remove a bezel blank:
1.
Remove the computer cover and place it upside down on a stable surface.
2.

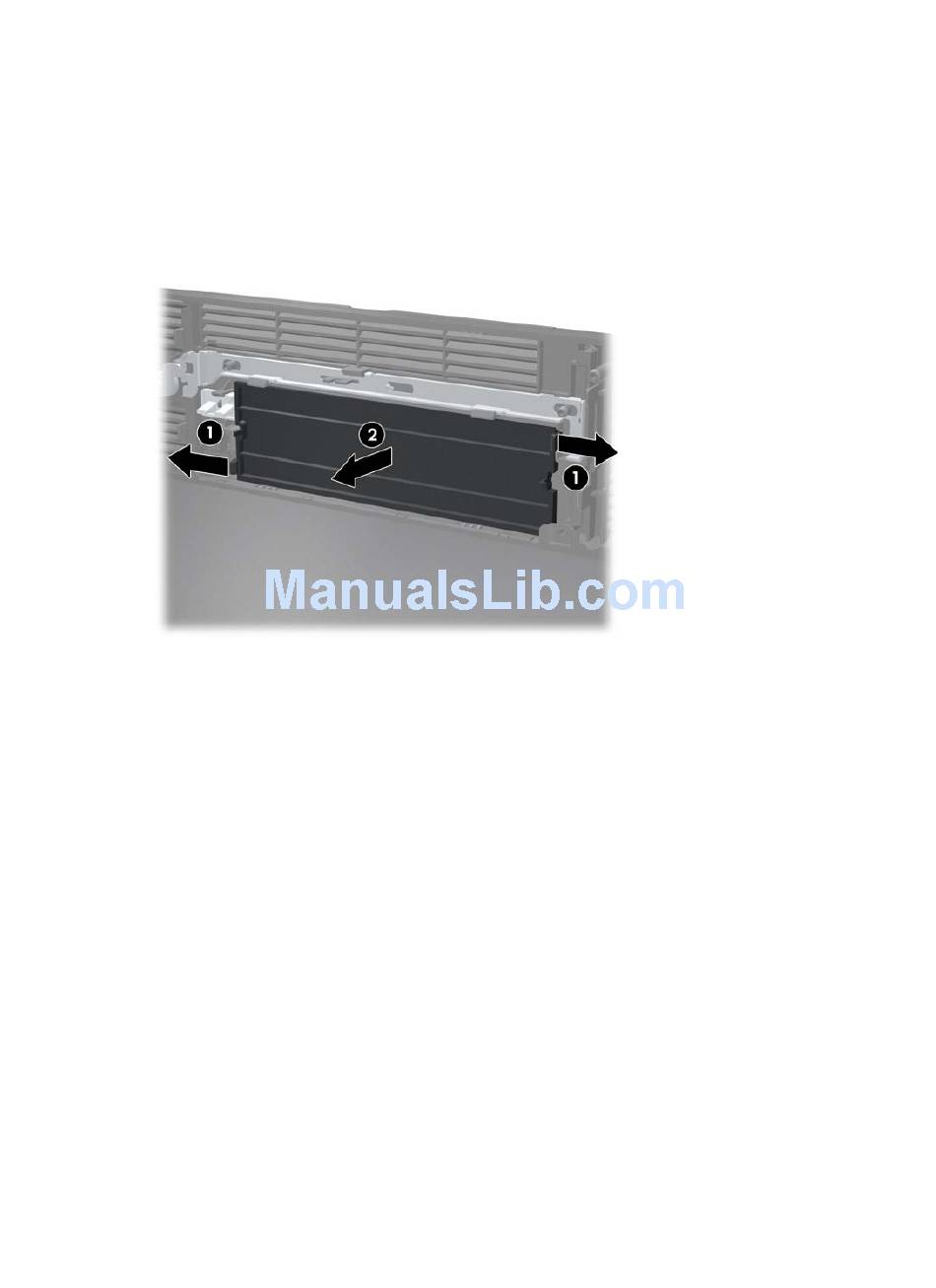

Push outward on the two retaining tabs that hold the bezel blank in place (1) then pull the blank
inward to remove it (2).
Figure 2-3
3.
Replace the computer cover.
ENWW
Removing a Bezel Blank
Removing the Bezel Blank
7
