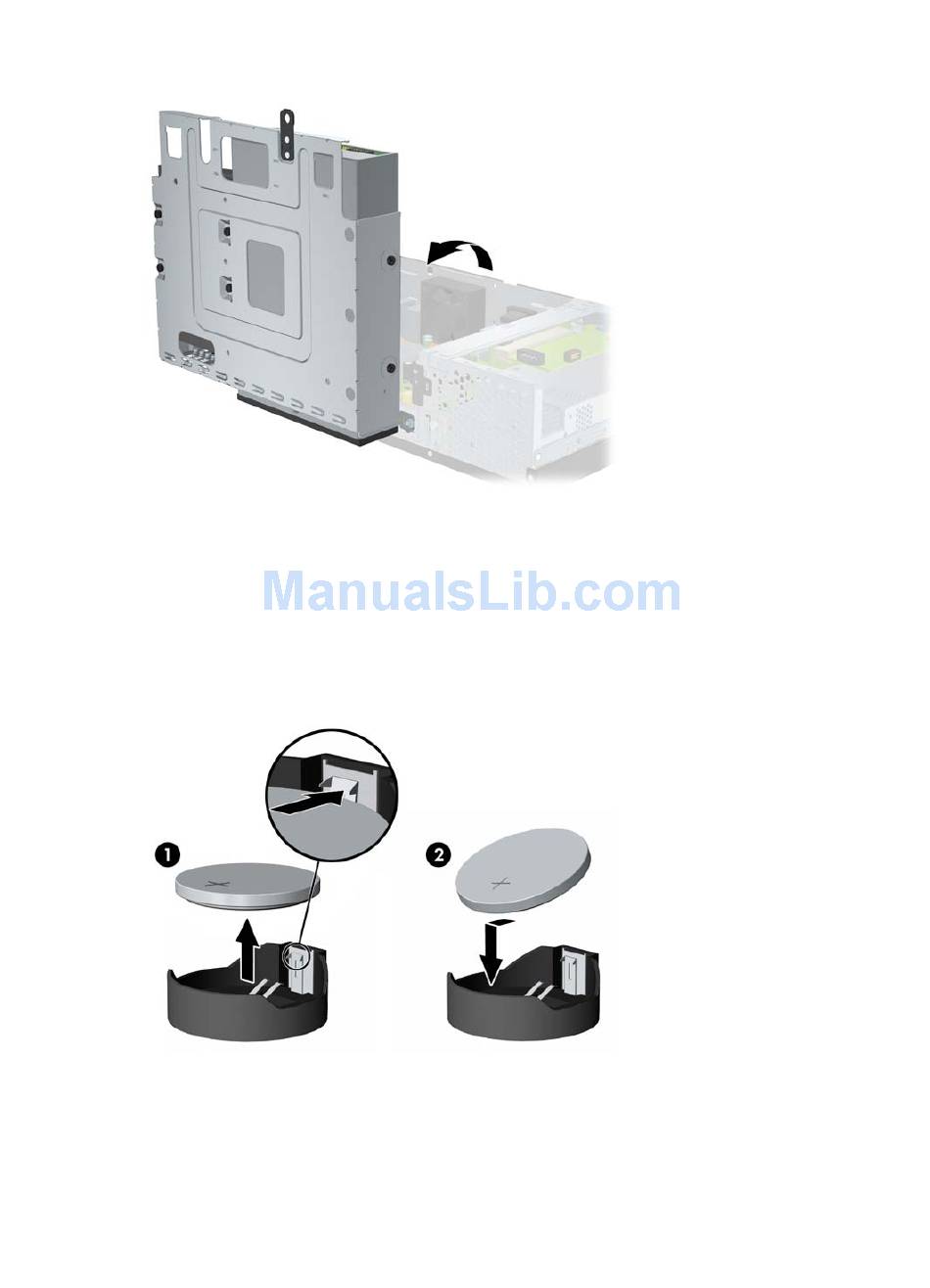

Raise the drive cage to the upright position.

Figure D-1

Locate the battery and battery holder on the system board.

To release the battery from its holder, squeeze the metal clamp that extends above one edge of

the battery. When the battery pops up, lift it out (1).

To insert the new battery, slide one edge of the replacement battery under the holder's lip with the

positive side up. Push the other edge down until the clamp snaps over the other edge of the battery

(2).

Figure D-2
