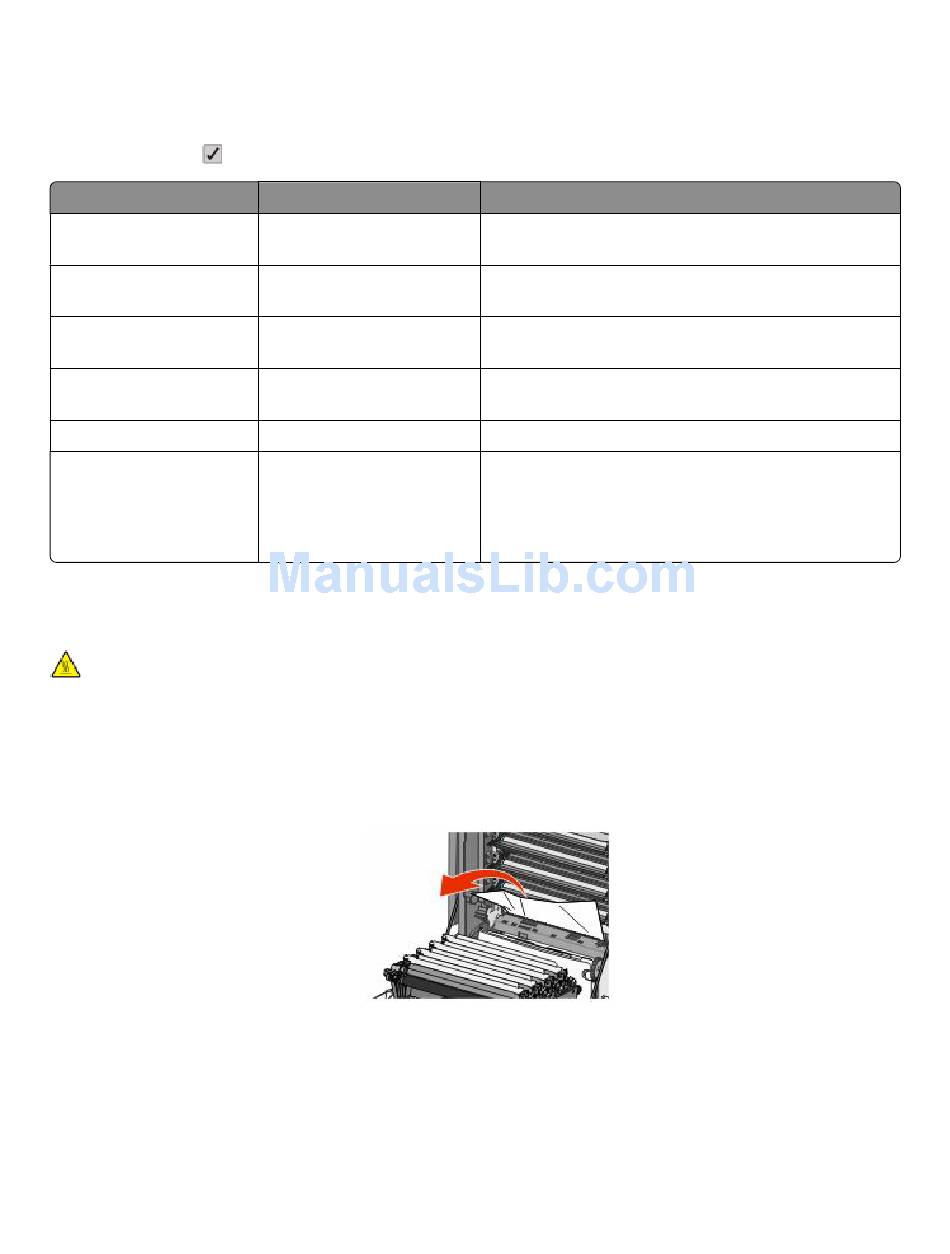

Accessing jam areas

When a jam occurs, a message indicating the jam location appears on the display. Open doors and covers and remove
trays to access jam locations. To resolve any paper jam message, you must clear all jammed paper from the paper
path and then press .
Jam number
200–201
202
203
230
24x
250
200–201 paper jams
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
1
Open the front door.
Warning—Potential Damage: To avoid overexposing the photoconductors, do not leave the front door open
longer than 10 minutes.
2
If the jam is behind the toner cartridge area, pull the jammed paper up and out.
Note: Make sure all paper fragments are removed.
Jam location
In the printer
In the printer
In the printer or standard exit
bin
In the printer
In the paper trays
In the multipurpose feeder
Clearing jams
What to do
Open the front door, remove the photoconductor unit, and
then remove any jams.
Open the front door and top cover, and then remove any
jams.
Open the front door and top cover, and then remove any
jams.
Remove Tray 1, open the front door, and then remove any
jams.
Open each tray, and then remove any jams.
1
Remove all media from the multipurpose feeder.
2
Flex and stack the media.
3
Reload the multipurpose feeder.
4
Adjust the paper guide.
