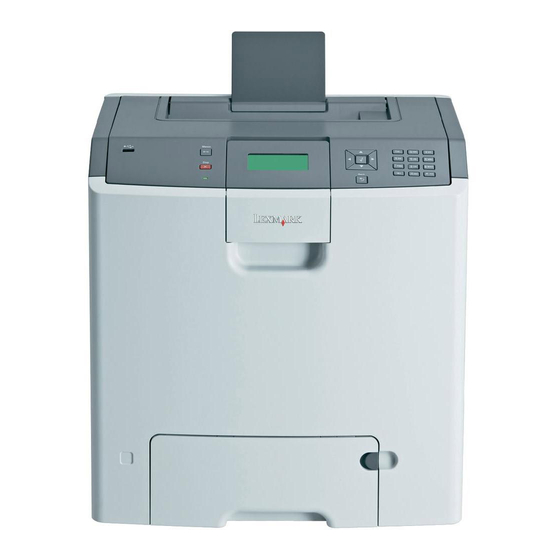

  • Page 1: Technical Reference

    Technical Reference August 2009 www.lexmark.com Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. All other trademarks are the property of their respective owners. © 2009 Lexmark International, Inc.

  • Page 2: Edition Notice

    All rights reserved. Trademarks Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. PCL® is a registered trademark of the Hewlett-Packard Company. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Contents Edition notice..................2 Introduction..................5 Understanding letters after model numbers.......................5 Learning about the printer...............7 Finding information about the printer...........................7 Printer Control Language (PCL) page formatting......8 Printable areas..................................8 Supported paper and envelope dimensions.......................9 Printer Job Language (PJL).............11 PJL commands information.............................11 PostScript (PS) emulation...............12 Paper sizes supported................................12 PostScript paper tray support............................13 PostScript envelope size support..........................15...
  • Page 4 PJL messages for attendance conditions........................53 PJL messages for paper handling..........................67 PJL messages for paper jams............................70 Service errors..................................77 Device attendance messages............................77 Lexmark-unique PJL commands............................77 File and device protection commands........................78 Appendix C: PostScript support.............79 Supplemental operators..............................79 Page device parameters..............................82 User interpreter parameters............................87 System interpreter parameters............................88...

  • Page 5: Introduction

    • Lexmark X738de MFP • Lexmark X738dte MFP Understanding letters after model numbers Some Lexmark printers may have one or more letters after the model name to indicate printer features: Acronym Meaning duplex duplex and e-Task (electronic task) touch-screen interface...
  • Page 6 Acronym Meaning dttn duplex, tandem tray module, and network dtwe duplex, additional tray, wireless, and e-Task touch-screen interface e-Task touch-screen interface hard disk, duplex, and network network network light model network and ImageQuick network and additional tray Duplex printing (two-sided printing) accomplished by means of an optional duplex unit or an internal duplex unit based on the product.

  • Page 7: Learning About The Printer

    Help Description Where to find The Help gives you instructions for using the software. While in any Lexmark software program, click Help, Tips  Help, or Help  Help Topics. Customer support Description...

  • Page 8: Printer Control Language (Pcl) Page Formatting

    Printer Control Language (PCL) page formatting For more information on PCL, refer to the Printer Languages and Interfaces Technical Reference. It contains a complete listing with descriptions of PCL commands. To determine which PCL commands your printer supports, see “Appendix A: PCL support” on page 23. Printable areas The printable areas and logical pages for PCL emulation (both portrait and landscape orientation) are illustrated below.

  • Page 9: Supported Paper And Envelope Dimensions

    Legend: Distance between the top and bottom edge of the physical page and the printable area in portrait, or distance between the left and right edge of the physical page and the printable area in landscape Note: The tables that follow in this chapter list the page sizes and dimensions of each area labeled on the preceding diagram for all paper and envelope sizes your printer supports.
  • Page 10 Selection Paper/envelope Dimensions by area (pels) dimensions Page size Name inches parameters Envelope 7 3/4 98 x 191 3.8 x 7.5 2324 4500 2024 4260 150 120 (Monarch) 9 (Com 9) 225 x 98 8.8 x 3.8 2324 5324 2024 5084 150 120 10 (Com 10) 241 x 105 9.5 x 4.1...

  • Page 11: Printer Job Language (Pjl)

    Printer Job Language (PJL) PJL commands information Your printer supports complete PJL commands, including certain commands that cause the printer to enter PCL emulation, PostScript emulation, and Personal Printer Data Stream (PPDS). For a complete listing with descriptions of PJL commands, see the Printer Languages and Interfaces Technical Reference.

  • Page 12: Postscript (Ps) Emulation

    Paper sizes supported = Supported X = Not supported Paper sizes Printer models Size Literal name Size (mm) Size (inches) Size (points) C734n, X734de MFP, C734dn/dtn/d X736de MFP, w, C736n, X738de MFP, C736dn/dtn X738dte MFP 105.0 x 148.0 4.1 x 5.8 297 x 419 148.0 x 210.0...

  • Page 13: Postscript Paper Tray Support

    PostScript paper tray support When the printer receives one of the operators listed in “Tray selected with tray operators” on page 14, it performs the actions listed as follows. This paper tray selection process ends as soon as a suitable paper source is chosen and paper is fed from this tray.
  • Page 14 Tray selected with tray operators = Supported X = Not supported Printer models Operator Tray selected (corresponding C734n, C734dn/dtn/dw, X734de MFP, X736de image size is set) C736n, C736dn/dtn MFP, X738de MFP, X738dte MFP 11x17tray tray with 279.4 x 431.8-mm (11 x 17-in.) paper...

  • Page 15: Postscript Envelope Size Support

    * Use the point size 612 x 996 to select Other envelope. The envelope is formatted to 612 x 1008 points (8.5 x 14 inches). Literal names supported = Supported X = Not Supported Literal names Printer models Literal name Compatible literal name C734n, C734dn/dtn/dw, X734de MFP, X736de C736n, C736dn/dtn MFP, X738de MFP, X738dte MFP monarchenvelope 3.875x7.5envelope com10envelope 4.125x9.5envelope...

  • Page 16: Postscript Envelope Tray Support

    = Supported X = Not Supported Literal names Printer models Literal name Compatible literal name C734n, C734dn/dtn/dw, X734de MFP, X736de C736n, C736dn/dtn MFP, X738de MFP, X738dte MFP c5envelope 162x229envelope b5envelope 176x250envelope PostScript envelope tray support If manualfeed in statusdict and the ManualFeed page device parameter are false when the printer receives one of the envelopetray operators listed in “Envelopetray operator selections”...
  • Page 17 Envelopetray operator selections = Supported X = Not supported Tray operators Printer models Operator Tray selected (Corresponding image C734n, X734de MFP, X736de size is set) C734dn/dtn/dw, MFP, X738de MFP, C736n, X738dte MFP C736dn/dtn 110x220envelopetray tray with International DL envelopes dlenvelopetray...

  • Page 18: Printer Specifications

    Printer specifications This chapter lists printer specifications and information about hardware, environmental conditions, and power requirements. Airflow requirement The room should meet ASHRAE 62—1989 standards. Noise emission levels The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296. 1-meter average sound pressure, dBA C734 / C736 X734de MFP / X736de MFP /...

  • Page 19: Electrical Specifications

    Electrical specifications Warning—Potential Damage: Lexmark recommends that you do not use voltage converters with printers. Printer model Electrical specification 1, 2 100–127 V at 47–63 Hz, nominal C73x low voltage models 99–137 V, extreme 1, 2 100 V at 47–63 Hz, nominal C73x 100 V model 90–110 V, extreme...

  • Page 20: Physical Specifications

    Depth Weight Printer with optional 550-sheet drawer 576 mm (22.7 in.) 435 mm (17.1 in.) 545 mm (21.5 in.) 29.7 kg (65.5 lb) Input options for Lexmark C734/C734dtn, C736/C736dtn Option name Height Width Depth Weight 169 mm (6.6 in.) 435 mm (17.1 in.) 545 mm (21.5 in.) 4.5 kg (10 lb)

  • Page 21: Clearance Requirements

    X738de (unpacked, with the 909 mm (35.8 in.) 546 mm (21.5 in.) 622 mm (24.5 in 48.3 kg (106.5 lb) with optional 550-sheet drawer) cartridge 44.7 kg (98.5 lb) without cartridge Input options for Lexmark X73x MFP Option Height Width Depth Weight 550-sheet drawer 122 mm (4.8 in.)

  • Page 22: Altitude Specifications And Atmospheric Pressure

    Altitude (above sea level) Printer model Operating Shipping/storage C734n, C734dn/dtn/dw, C736n, C736dn/dtn 0–3048 M (10,000 ft.) 0.25 atmospheric pressure (equal to 10,300 M [34,000 ft.] X734de MFP, X736de MFP, X738de MFP, 0–3048 M (10,000 ft.) 0.25 atmospheric pressure (equal to 10,300 M X738dte MFP [34,000 ft.]...

  • Page 23: Appendix A: Pcl Support

    Appendix A: PCL support PCL emulation commands = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Printer Reset Display Functions-On Display Functions-Off Print Test Page Horizontal Cursor Position &a#C...
  • Page 24 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Set Universal Feed Direction &f#O Set Universal Custom Name &f#W Push / Pop Cursor Position &f#S Macro Control &f#X...
  • Page 25 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Palette Control &p#C Palette Control ID &p#I Select Palette &p#S Transparent Print Data &p#X[data] Flush All Pages &r#F End-Of-Line Text Wrap &s#C...
  • Page 26 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Secondary Font Style )s#S Secondary Font Typeface Selection )s#T Secondary Font Height (Point Size) )s#V Load Font Header...
  • Page 27 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Picture Frame Horizontal Size *c#X (in Decipoints) Picture Frame Vertical Size *c#Y (in Decipoints) Logical Operation Pixel Placement...
  • Page 28 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Echo *s#X Raster Width Destination *t#H Gamma Correction *t#I Render Algorithm *t#J Scale Algorithm *t#K Raster Resolution *t#R...

  • Page 29: Gl/2 Commands

    GL/2 commands = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Arc Absolute Anchor Corner Define Alternate Font Arc Relative Arc Absolute Three Point Bezier Relative Bezier Absolute...
  • Page 30 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Fill Polygon, Odd/Even Fill Polygon, Non-Zero Winding Fill Type Fill Type - 22 Fill Type - 9 Initialize...
  • Page 31 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command Function C736n, C736dn/dtn X738dte MFP Fill Rectangle Absolute Define Raster Fill Rotate Coordinate System Fill Rectangle Relative Arc Relative Three Point Select Alternate Font...

  • Page 32: Appendix B: Pjl Support

    Appendix B: PJL support Common variables for both printer languages = Supported X = Not supported Printer model C734n, C734dn/dtn/dw, X734de MFP, X736de MFP, Variable name C736n, C736dn/dtn X738de MFP, X738dte MFP AUTOCONT AUTOSELECT BINDING BITSPERPIXEL CLEARABLEWARNINGS CONTEXTSWITCH COPIES CPLOCK...
  • Page 33 = Supported X = Not supported Printer model C734n, C734dn/dtn/dw, X734de MFP, X736de MFP, Variable name C736n, C736dn/dtn X738de MFP, X738dte MFP INTRAY5 INTRAY1SIZE INTRAY2SIZE INTRAY3SIZE INTRAY4SIZE INTRAY5SIZE IOBUFFER IOSIZE JOBATTR JOBNAME JOBOFFSET LANG LOWTONER MANUALFEED MEDIASOURCE MEDIATYPE MPTRAY ORIENTATION...

  • Page 34: Printer-Unique Pjl Variables For Both Printer Languages

    = Supported X = Not supported Printer model C734n, C734dn/dtn/dw, X734de MFP, X736de MFP, Variable name C736n, C736dn/dtn X738de MFP, X738dte MFP RENDERMODE REPRINT RESOLUTION RESOURCESAVE RESOURCESAVESIZE TIMEOUT USERNAME WIDEA4 Printer-unique PJL variables for both printer languages = Supported X = Not supported...
  • Page 35 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LBONDOUTBIN LBONDTEXTURE LBONDWEIGHT LBWLOCK LCANCEL LCARDSTOCKLENGTH LCARDSTOCKLOADING LCARDSTOCKOUTBIN LCARDSTOCKTEXTURE LCARDSTOCKWEIGHT LCOLLATION LCOLORBALANCEBLACK LCOLORBALANCECYAN LCOLORBALANCEMAGENTA LCOLORBALANCEYELLOW LCOLORCORRECTION LCOLORSAVER LCOLORTRAPPING...
  • Page 36 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LCUSTOMPAPERHEIGHT LCUSTOMPAPERFEED LCUSTOMTYPE1LENGTH LCUSTOMTYPE1LOADING LCUSTOMTYPE1MEDIA LCUSTOMTYPE1NAME LCUSTOMTYPE1OUTBIN LCUSTOMTYPE1TEXTURE LCUSTOMTYPE1WEIGHT LCUSTOMTYPE2LENGTH LCUSTOMTYPE2LOADING LCUSTOMTYPE2MEDIA LCUSTOMTYPE2NAME LCUSTOMTYPE2OUTBIN LCUSTOMTYPE2TEXTURE LCUSTOMTYPE2WEIGHT LCUSTOMTYPE3LENGTH LCUSTOMTYPE3LOADING...
  • Page 37 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LCUSTOMTYPE4NAME LCUSTOMTYPE4OUTBIN LCUSTOMTYPE4TEXTURE LCUSTOMTYPE4WEIGHT LCUSTOMTYPE5LENGTH LCUSTOMTYPE5LOADING LCUSTOMTYPE5MEDIA LCUSTOMTYPE5NAME LCUSTOMTYPE5OUTBIN LCUSTOMTYPE5TEXTURE LCUSTOMTYPE5WEIGHT LCUSTOMTYPE6LENGTH LCUSTOMTYPE6LOADING LCUSTOMTYPE6MEDIA LCUSTOMTYPE6NAME LCUSTOMTYPE6OUTBIN LCUSTOMTYPE6TEXTURE LCUSTOMTYPE6WEIGHT...
  • Page 38 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LENVELOPEWEIGHT LESCCHAR LFAXRESOLUTION LFAXREDIAL LFAXREDIALFREQUENCY LFAXTRANSMISSIONLOG LFEEDERPAPERTYPE LGLOSSYLOADING LGLOSSYOUTBIN LGLOSSYOUTPUTBIN LGLOSSYTEXTURE LGLOSSYWEIGHT LHEAVYGLOSSYLOADING LHEAVYGLOSSYOUTBIN LHEAVYGLOSSYTEXTURE LHEAVYGLOSSYWEIGHT LHEAVYPAPEROUTBIN LHOLEPUNCHALARM...
  • Page 39 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LINFEEDERSIZE LINKALERT LINMPFEEDERSIZE LJAMRECOVERY LLABELSLENGTH LLABELSLOADING LLABELSOUTBIN LLABELSTEXTURE LLABELSWEIGHT LLEFTMARGINOFFSET LLETTERHEADLENGTH LLETTERHEADLOADING LLETTERHEADOUTBIN LLETTERHEADTEXTURE LLETTERHEADWEIGHT LLIGHTPAPEROUTBIN LMANUALCOLORRGBTEXT LMANUALCOLORRGBGRAPHICS...
  • Page 40 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LMAXSTATUSMSG LMPFEEDERPAPERTYPE LMULTIPAGEBORDER LMULTIPAGEORDER LMULTIPAGEPRINT LMULTIPAGEVIEW LNPAP LOPTIONALOUTBIN1NAME LOPTIONALOUTBIN2NAME LOPTIONALOUTBIN3NAME LOPTIONALOUTBIN4NAME LOPTIONALOUTBIN5NAME LOPTIONALOUTBIN6NAME LOPTIONALOUTBIN7NAME LOPTIONALOUTBIN8NAME LOPTIONALOUTBIN9NAME LOPTIONALOUTBIN10NAME LOUTBINCONFIG...
  • Page 41 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LPOWERSAVER LPPDS LPPDSFORMLINES LPPDSLINESPERINCH LPREPRINTEDLENGTH LPREPRINTEDLOADING LPREPRINTEDOUTBIN LPREPRINTEDTEXTURE LPREPRINTEDWEIGHT LPRINTBUFFER LPRINTHEADIDLETIME LPRINTERUSAGE LPRINTMENUSBUTTON LPRINTQUALITY LPUNCH LREAROUTBINNAME LRECYCLEDOUTBIN LREPEATPRINTLIMIT...
  • Page 42 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LSEPARATORSOURCE LSMALLFONTENHANCER LSSGALVO LSTANDARDOUTBINNAME LSTAPLE LSTAPLESEMPTYALARM LSTAPLETESTBIN LSTAPLETESTSOURCE LSTROKEWIDTH LSUBSTITUTESIZE LTOPBINROTATE LTOPMARGINOFFSET LTRANSPARENCYLENGTH LTRANSPARENCYOUTBIN LTRANSPARENCYTEXTURE LTRANSPARENCYWEIGHT LTRAY1AUTOSIZE LTRAY1PAPERTYPE...

  • Page 43: Common Variables For Pcl Emulation

    = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LTRAY3SENSEDTYPEPAPER LTRAY3SENSEDTYPETRANSPARENCY LTRAY4AUTOSIZE LTRAY4PAPERTYPE LTRAY4SENSEDTYPEPAPER LTRAY4SENSEDTYPETRANSPARENCY LTRAY5AUTOSIZE LTRAY5PAPERTYPE LTYPE1FONTS LUSDEFAULTS LVINYLLABELSLOADING LVINYLLABELSOUTBIN LVINYLLABELSTEXTURE LVINYLLABELSWEIGHT LWRITECOVERAGE Common variables for PCL emulation...

  • Page 44: Printer-Unique Variables For Pcl Emulation

    Printer-unique variables for PCL emulation = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LA4WIDTH LASSIGNFEEDER LASSIGNMANUALENVELOPE LASSIGNMANUALPAPER LASSIGNMPFEEDER LASSIGNTRAY1 LASSIGNTRAY2 LASSIGNTRAY3 LASSIGNTRAY4 LASSIGNTRAY5 LBITMAPROUNDING LCOLOREXTENSIONS LFONTCOMPATIBILITY...

  • Page 45: Printer-Unique Variables For Postscript Emulation

    Printer-unique variables for PostScript emulation = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP LPICTUREGRADE LPSFONTPRIORITY Printer-unique LRESOURCE variables = Supported X = Not supported Printer model...

  • Page 46: Ustatus Unsolicited Status Variables

    USTATUS unsolicited status variables = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Variable name C736n, C736dn/dtn X738dte MFP DEVICE PAGE TIMED PJL messages for auto-continuable conditions = Supported X = Not supported...
  • Page 47 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 30016 37 Insufficient memory to collate Insufficient Collation Area Intervention Required -...
  • Page 48 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 30018 56 Parallel Port Disabled Parallel Port Disabled Intervention Required - 30018...
  • Page 49 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 30034 34 Short Paper Short Paper Intervention Required - 30035 52 Flash Full...
  • Page 50 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 30107 Insert Box M Insert Box M Intervention Required - 30107 Insert staple...
  • Page 51 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 32002 52 Not enough free space in flash Flash Full memory for...
  • Page 52 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 32056 61 Remove defective disk Defective Disk Intervention Required - 35075 80 Scheduled...

  • Page 53: Pjl Messages For Attendance Conditions

    PJL messages for attendance conditions = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 32030 58 Too many bins attached Too Many Bins Attached...
  • Page 54 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40021 Close Cover Printer Cover Open Intervention Required - 40021 Close Cover...
  • Page 55 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40021 Cover Open, Close Top Covers, Close Printer Upper Door Open Door, or Insert...
  • Page 56 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40021 32 Unsupported CMYK* Cartridge Unsupported CMYK* Cartridge Intervention Required - 40021...
  • Page 57 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40028 Install Env Feed or Cancel Job Install Env Feeder or Cancel Job...
  • Page 58 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40036 58 Too Many Disks Installed Too Many Disks Installed Intervention Required -...
  • Page 59 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40038 88 Cartridge low Toner Low Intervention Required - 40038 88 Cartridge Low <CMYK>...
  • Page 60 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40041 Priming Failed. Retry? Priming Failed. Retry? Intervention Required - 40048 OPMSG message...
  • Page 61 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40095 Check duplex connection Check Duplex Connection Intervention Required - 40095 Install Duplex or...
  • Page 62 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40200 88.2x Replace black cartridge Replace Cartridge Intervention Required - 40201 88.yy cyan...
  • Page 63 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40204 84 Photoconductor Photoconductor Low Intervention Required - 40204 84.yy [color] photoconductor...
  • Page 64 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40309 32.yy black cartridge part Cartridge Part Number number unsupported Unsupported by device...
  • Page 65 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40312 40 yellow invalid refill, change Invalid Refill, Change cartridge Cartridge Intervention Required -...
  • Page 66 = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40407 84.41 Magenta PC Unit missing <Color> PC Unit Missing Intervention Required - 40407 84.41 Magenta...

  • Page 67: Pjl Messages For Paper Handling

    = Supported X = Not supported Printer model X734de MFP, C734n, X736de MFP, C734dn/dtn/dw, X738de MFP, Message Status code Return string C736n, C736dn/dtn X738dte MFP Intervention Required - 40412 31.yy Defective yellow cartridge Defective Cartridge Intervention Required - 40412 31.41 Missing or...
  • Page 68 = Supported X = Not supported Printer model C734n, X734de MFP, C734dn/dtn/dw, X736de MFP, C736n, X738de MFP, Message Status code Return string C736dn/dtn X738dte MFP Intervention Required - 40019 Remove paper from all bins Remove Paper From All Bins Intervention Required -...
  • Page 69 = Supported X = Not supported Printer model C734n, X734de MFP, C734dn/dtn/dw, X736de MFP, C736n, X738de MFP, Message Status code Return string C736dn/dtn X738dte MFP Intervention Required - 41xyy Change <source> Change Request <Custom Type Name> <Custom String> <size> <type><size>...

  • Page 70: Pjl Messages For Paper Jams

    = Supported X = Not supported Printer model C734n, X734de MFP, C734dn/dtn/dw, X736de MFP, C736n, X738de MFP, Message Status code Return string C736dn/dtn X738dte MFP Intervention Required - 41xyy 34 Incorrect Media Incorrect Media Intervention Required - 412yy Insert Duplex Pages &...
  • Page 71 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Message Status code C736n, C736dn/dtn X738dte MFP Intervention Required - 4203z Paper Jam Intervention Required - 4204x Paper Jam Intervention Required - 4205x Paper Jam...
  • Page 72 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Message Status code C736n, C736dn/dtn X738dte MFP Intervention Required - 4231z Paper Jam Intervention Required - 4232x Paper Jam Intervention Required - 4233x Paper Jam...
  • Page 73 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Message Status code C736n, C736dn/dtn X738dte MFP Intervention Required - 4246w Paper Jam Intervention Required - 4247wy Paper Jam Intervention Required - 4248w Paper Jam...
  • Page 74 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Message Status code C736n, C736dn/dtn X738dte MFP Intervention Required - 4258w Paper Jam Intervention Required - 4259wy Paper Jam Intervention Required - 4260w Paper Jam...
  • Page 75 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Message Status code C736n, C736dn/dtn X738dte MFP Intervention Required - 4280x Paper Jam Intervention Required - 4280z Paper Jam Intervention Required - 4281w Paper Jam...
  • Page 76 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Message Status code C736n, C736dn/dtn X738dte MFP Intervention Required - 4285z Paper Jam Intervention Required - 4286w Paper Jam Intervention Required - 4286z Paper Jam...

  • Page 77: Service Errors

    C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Message C736n, C736dn/dtn X738dte MFP OPMSG RDYMSG STMSG Lexmark-unique PJL commands = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command C736n, C736dn/dtn X738dte MFP...

  • Page 78: File And Device Protection Commands

    = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Command C736n, C736dn/dtn X738dte MFP LINITIALIZEPRINTER LOPENFILE LPORTROTATE LPRINT testpage • LPRINTDIRECTORY • LPRINTMENUS • LPRINTPCLFONTS • LPRINTPSFONTS • LPRINTTESTPAGE LREADFILE LRENAMEFILE LRUNFILE LWRITEFILE...

  • Page 79: Appendix C: Postscript Support

    Appendix C: PostScript support Supplemental operators = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Operator name C736n, C736dn/dtn X738dte MFP appletalktype buildtime byteorder checkpassword currentfilenameextend currentmanualduplexmode currentuniversalsize defaulttimeouts deletefile devcontrol devdismount devforall...
  • Page 80 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Operator name C736n, C736dn/dtn X738dte MFP dostartpage dosysstart duplexer duplexmode enginesync file filenameforall fileposition firstside fontnonzerowinding hardwareiomode idlefonts ignoresize initializedisk jobname jobsource jobtimeout manualfeed...
  • Page 81 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Operator name C736n, C736dn/dtn X738dte MFP PS3fonts quiet ramsize realformat renamefile resolution revision sccbatch sccinteractive setcoverpage setdefaulttimeouts setdoidlefonts setdojamrecovery setdoprinterrors setdoret setdostartpage setdosysstart setduplexmode...

  • Page 82: Page Device Parameters

    = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Operator name C736n, C736dn/dtn X738dte MFP setmanualduplexmode setpapertray setprintername setquiet setresolution setsccbatch setsccinteractive setsoftwareiomode settumble setuniversalsize setuserdiskpercent softwareiomode tumble userdiskpercent waittimeout Page device parameters...
  • Page 83 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP • ColorBalance • ColorBalanceCyan • ColorBalanceMagenta • ColorBalanceYellow • ColorBalanceBlack • ColorCorrection • ColorSaver • DefaultPoliciesPageSize • EdgeToEdge • LineDetail •...
  • Page 84 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP - IET - IETImagesOnly - IETPictureGrade - None - PictureGrade • SubstituteSize • TonerSaver • Type Duplex EndPage ExitJamRecovery HWResolution...
  • Page 85 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP - PageSize • Mode • Priority Install ManualFeed ManualFeedTimeout MediaColor MediaPosition MediaType MediaWeight NumCopies NupDetails • Border • Columns •...
  • Page 86 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP • 4 - Optional Bin 4 • 5 - Optional Bin 5 • 6 - Optional Bin 6 • 7 - Optional Bin 7 •...

  • Page 87: User Interpreter Parameters

    = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP • SlipSheetSource • Type Staple TraySwitch Tumble UniversalDetails • Orientation • PageSize • Prompt • Type User interpreter parameters = Supported...

  • Page 88: System Interpreter Parameters

    = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Default C736n, C736dn/dtn X738dte MFP MaxFormItem 100000 MaxLocalVM 2147483647 MaxOpStack 100000 MaxPatternItem 20000 MaxScreenItem 48000 MaxSuperScreen 1024 MaxUPathItem 5000 MinFontCompress 2147483647 PageCount UseOldcopypage false...
  • Page 89 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP CurOutputDevice CurPatternCache CurScreenStorage CurSourceList CurUPathCache DisableFastProcs DoPrintErrors DoStartPage EnableExtraFonts EngineBoot EngineCode EngineSpeed EnvironmentSave FactoryDefaults FatalErrorAddress FontResourceDir FontVersion GenericResourceDir GenericResourcePathSep InstalledRam...
  • Page 90 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP MaxImageBuffer MaxOutlineCache MaxPatternCache MaxPermanentVM MaxRasterMemory MaxScreenStorage MaxSourceList MaxUPathCache PageCount PanelCode PrinterCode PrinterName RamSize RealFormat Revision SearchBuiltinFontsFirst SerialNumber StartJobPassword StartupMode StaticRamSize...

  • Page 91: Devices Supported

    Devices supported = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Device C736n, C736dn/dtn X738dte MFP %AppSocketA% %AppSocketB% %AppSocketC% %AppSocketD% %EthernetPhysicalA% %EthernetPhysicalB% %EthernetPhysicalC% %EthernetPhysicalD% %EtherTalkA% %EtherTalkB% %EtherTalkC% %EtherTalkD% %IP_A% %IP_B% %IP_C% %IP_D% %IR_A%...
  • Page 92 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Device C736n, C736dn/dtn X738dte MFP %LocalTalkA% %LocalTalkB% %LocalTalkC% %LocalTalkD% %LPR_A% %LPR_B% %LPR_C% %LPR_D% %ParallelA% %ParallelB% %ParallelC% %ParallelD% %PrintServerA% %PrintServerB% %PrintServerC% %PrintServerD% %RemotePrinterA% %RemotePrinterB% %RemotePrinterC%...

  • Page 93: Device Parameters

    = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, Device C736n, C736dn/dtn X738dte MFP %TokenRingPhysicalC% %TokenRingPhysicalD% %TokenTalkA% %TokenTalkB% %TokenTalkC% %TokenTalkD% %USB_A% %USB_B% %USB_C% %USB_D% Device parameters = Supported X = Not supported Printer model...
  • Page 94 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP PCLSmartSwitch PortLocation PSSmartSwitch Type Device Parameters for the Communication Device %Serial%, %SerialA%, %SerialB%, %SerialC%, %SerialD% Baud CheckParity DataBits DelayedOutputClose Enabled...
  • Page 95 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP Device Parameters for the Communication Device %LocalTalk%, %LocalTalkA%, %LocalTalkB%, %LocalTalkC%, %LocalTalkD% DelayedOutputClose Enabled Filtering HasNames Interpreter LocalTalkType NodeID PCLSmartSwitch PortLocation...
  • Page 96 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP PortLocation PSSmartSwitch Type Device Parameters for the Communication Device %IR%, %IR_A%, %IR_B%, %IR_C%, %IR_D% DelayedOutputClose Enabled Filtering HasNames Interpreter PCLSmartSwitch...
  • Page 97 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP Device Parameters for the Communication Device %TokenTalk%, %TokenTalkA%, %TokenTalkB%, %TokenTalkC%, %TokenTalkD% Address Bridging DelayedOutputClose Enabled Filtering HasNames Interpreter NodeID PCLSmartSwitch...
  • Page 98 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP Type Device Parameters for the Communication Device %RemotePrinter%, %RemotePrinterA%, %RemotePrinterB%, %RemotePrinterC%, %RemotePrinterD% DelayedOutputClose Enabled Filtering HasNames Interpreter PortLocation Type Device Parameters for the Communication Device %PrintServer%,...
  • Page 99 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP Interpreter PortLocation Type Device Parameters for the Communication Device %LexLink%, %LexLinkA%, %LexLinkB%, %LexLinkC%, %LexLinkD% DelayedOutputClose Enabled HasNames Interpreter PortLocation Type...
  • Page 100 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP PortLocation Type Device Parameters for the Communication Device %TokenRingPhysical%, %TokenRingPhysicalA%, %TokenRingPhysicalB%, %TokenRingPhysicalC%, %TokenRingPhysicalD% Address PortLocation Speed Type Device Parameters for the Parameters Device %Engine%...
  • Page 101 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP Second Type Year DateTime DayOfWeekLong DayOfWeekNum DayOfWeekShort Device Parameters for the Parameters Device %disk1% BlockSize Free HasNames InitializeAction LogicalSize Mounted...
  • Page 102 = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP Mounted PhysicalSize Removable Searchable SearchOrder Type Writeable Device Parameters for the Parameters Device %rom% BlockSize Free HasNames InitializeAction LogicalSize Mounted...

  • Page 103: Postscript Message Keys Commands

    PostScript message keys commands = Supported X = Not supported Printer model C734n, X734de MFP, X736de C734dn/dtn/dw, MFP, X738de MFP, C736n, C736dn/dtn X738dte MFP status source Appendix C: PostScript support...

  • Page 104: Index

    21 commands supported 29 dimensions 9 commands physical page PJL, file and device protection 78 PCL emulation 8 PJL, Lexmark-unique 77 physical specifications 20 humidity ranges 22 PostScript, message keys 103 PJL commands commands supported common variables, both...
  • Page 105 supported paper sizes 12 tray operators 13 PostScript commands message keys 103 PostScript operators envelope tray support 16 PostScript parameters system interpreter 88 user interpreter 87 power requirements 19 printable areas 8 printer specifications 20 airflow requirement 18 altitude 22 atmospheric pressure 22 clearance requirements 21 electrical 19...
