2.8.3

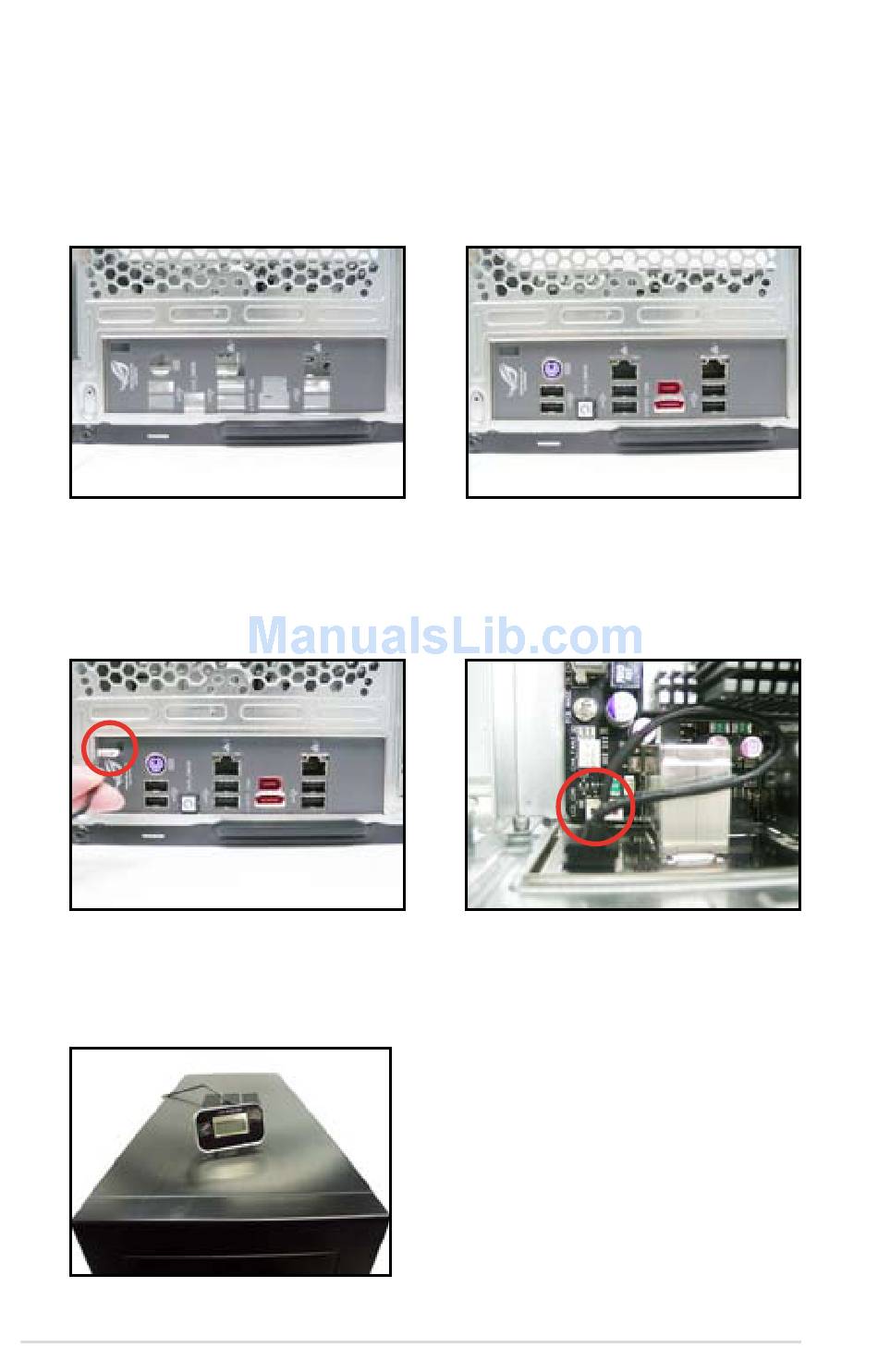

Installing Q-shield and LCD Poster

1. Install the Q-shield to the chassis
by snapping it in place from inside.
3. Thread the LCD Poster cable
through the opening until its
stopper snaps into place.
5. Place the LCD Poster on the
chassis or to wherever you like.
2-38
2. Orient the motherboard and install
it to the chassis. Make sure that the
motherboard external ports fit the
shield openings.
4. Plug the LCD Poster cable into
the onboard connector labeled
LCD_CON.
Chapter 2: Hardware information
