2.5.4

PCI slots

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other
cards that comply with PCI specifications. Refer to the figure below for the location
of the slots.
2.5.5

PCI Express x1 slots

This motherboard supports PCI Express x1 network cards, SCSI cards and other
cards that comply with the PCI Express specifications. Refer to the figure below for
the location of the slots.
•
•
2.5.6

PCI Express x16 slots

This motherboard supports two ATI CrossFire™ PCI Express x16 graphics cards
that comply with the PCI Express specifications. Refer to the figure below for the
location of the slots.

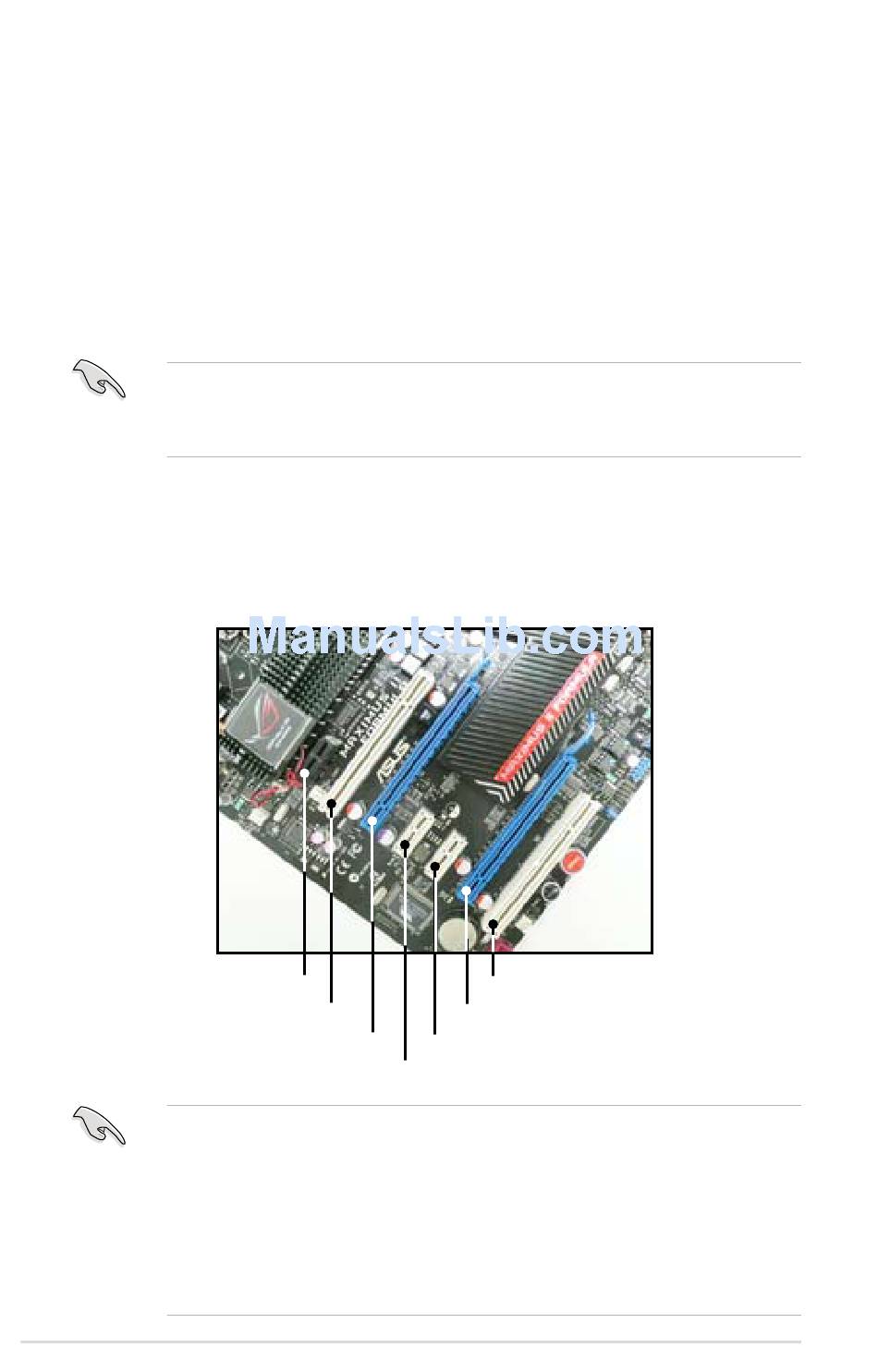

Audio/PCI Express x1 slot
•
•
•
2-18
Install the audio card prior to other compatible cards to the black PCIe x1
slot.
Install a PCIe x1 device to a PCIe x1 slot prior to a PCIe x16 slot.
PCI slot
PCI Express x 16 slot
PCI Express x1 slot
We recommend that you provide sufficient power when running
CrossFire™ mode. See page 2-31 for details.
Install two ATI graphics cards from the same GPU family that support
CrossFire™ mode.
If you install two VGA cards, we recommend that you plug the rear chassis
fan cable to the motherboard connector labeled OPT_FAN1/2/3 for better
thermal environment. See page 2-28 for the connector location.
PCI slot
PCI Express x 16 slot
PCI Express x1 slot
Chapter 2: Hardware information
