2.7

Connectors

2.7.1

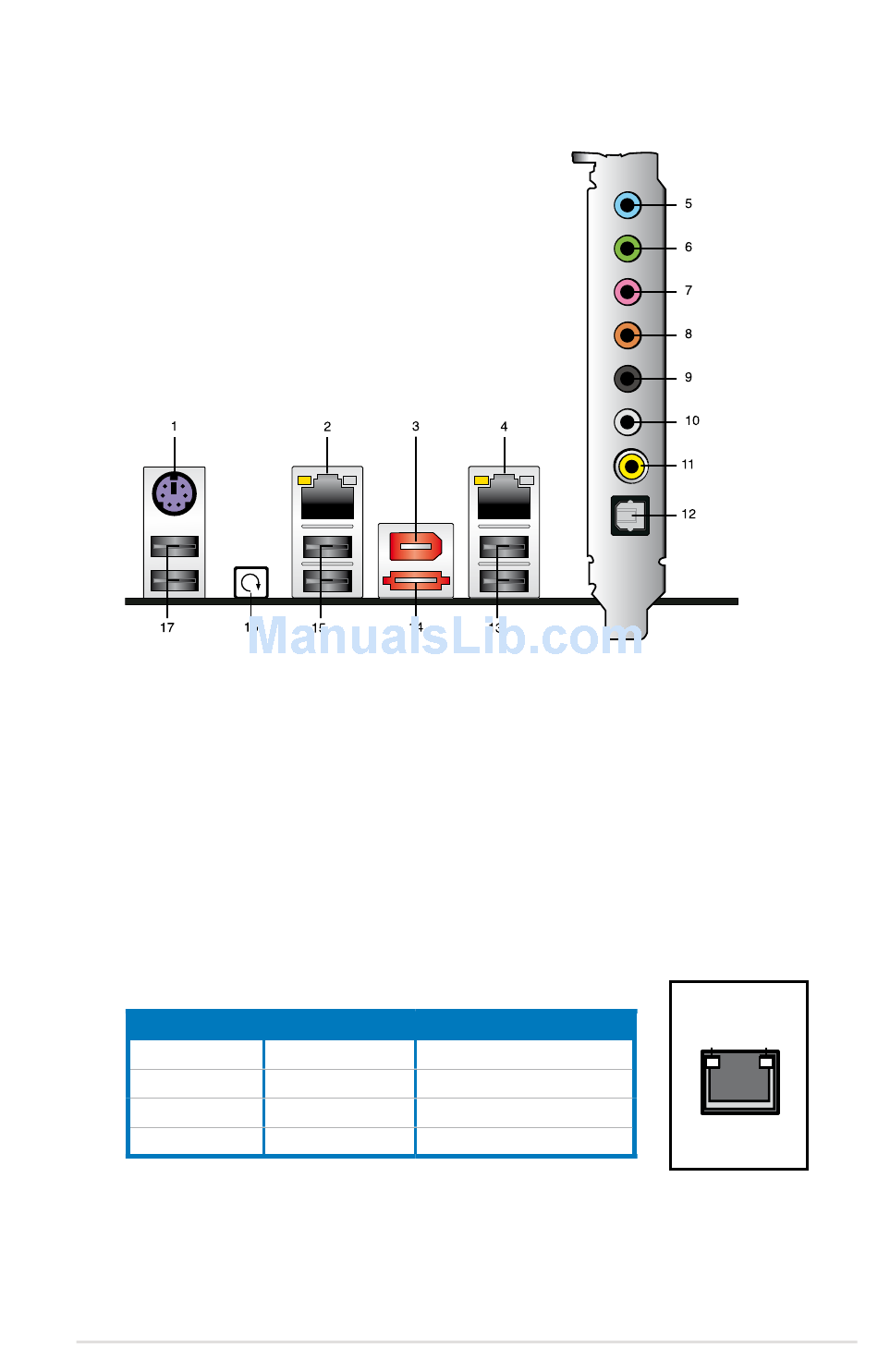

Rear panel connectors

1. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
2. LAN 2 (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
3. IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed
connectivity for audio/video devices, storage peripherals, PCs, or portable
devices.
4. LAN 1 (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
LAN port LED indications
Activity/Link
OFF
YELLOW*
YELLOW*
YELLOW*
* Blinking
ASUS Maximus II Formula
Speed LED Description
OFF Soft-off Mode
OFF During Power ON/OFF
ORANGE 100 Mbps connection
GREEN 1 Gbps connection
ACTIVITY/ SPEED
LINK LED LED
LAN port
2-21
