ASUS Q-Connector (system panel)
You can use the ASUS Q-Connector to connect/disconnect chassis front panel
cables in a few steps. Refer to the instructions below to install the ASUS Q-
Connector.

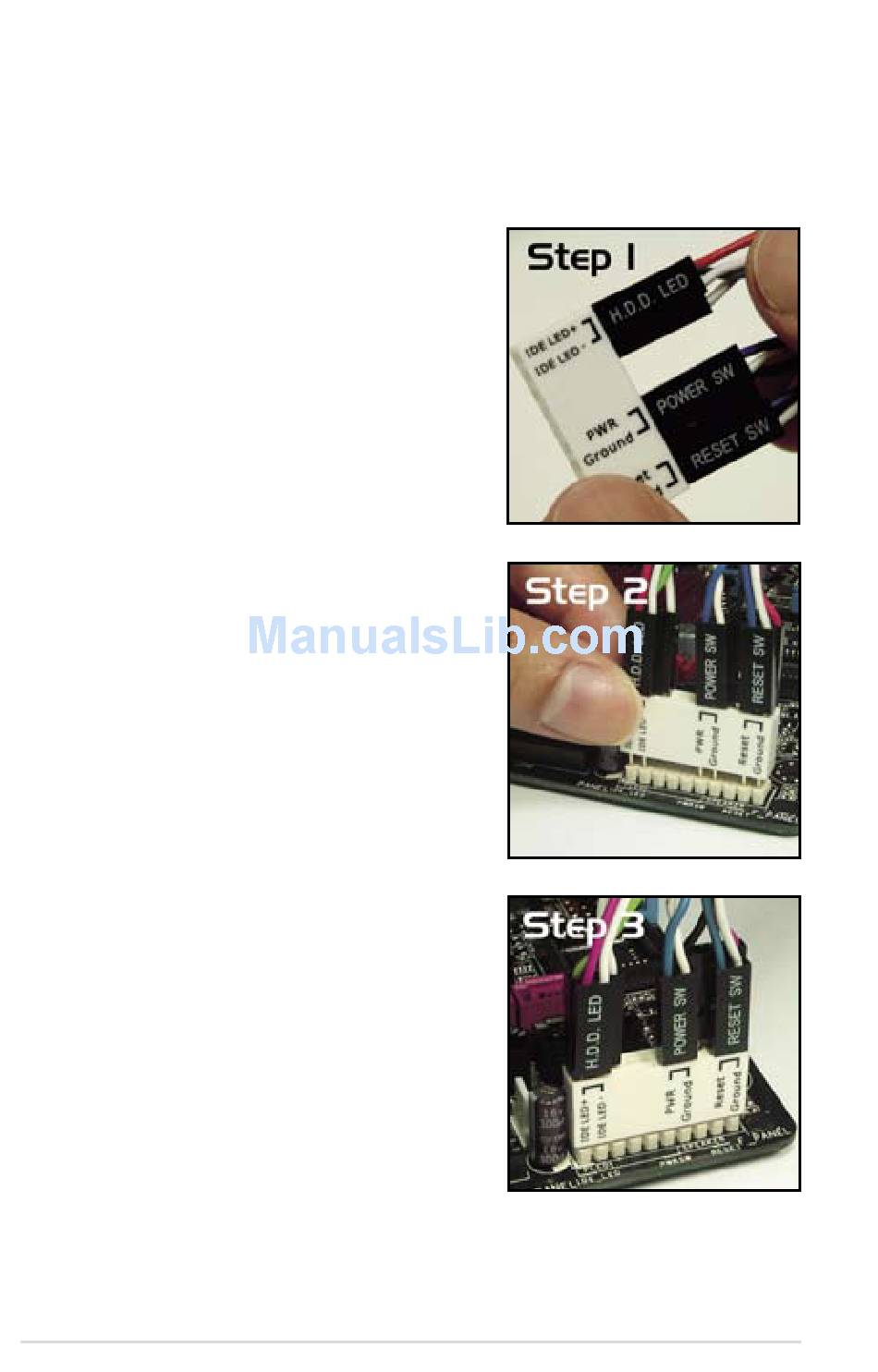

1. Connect the front panel cables to the

ASUS Q-Connector.

Refer to the labels on the Q-Connector
to know the detailed pin definitions, then
match them to the respective front panel
cable labels.
2. Install the ASUS Q-Connector to the
system panel connector, making sure
the orientation matches the labels on the
motherboard.
3. The front panel functions are now enabled.
The figure shows the Q-Connector properly
installed on the motherboard.
