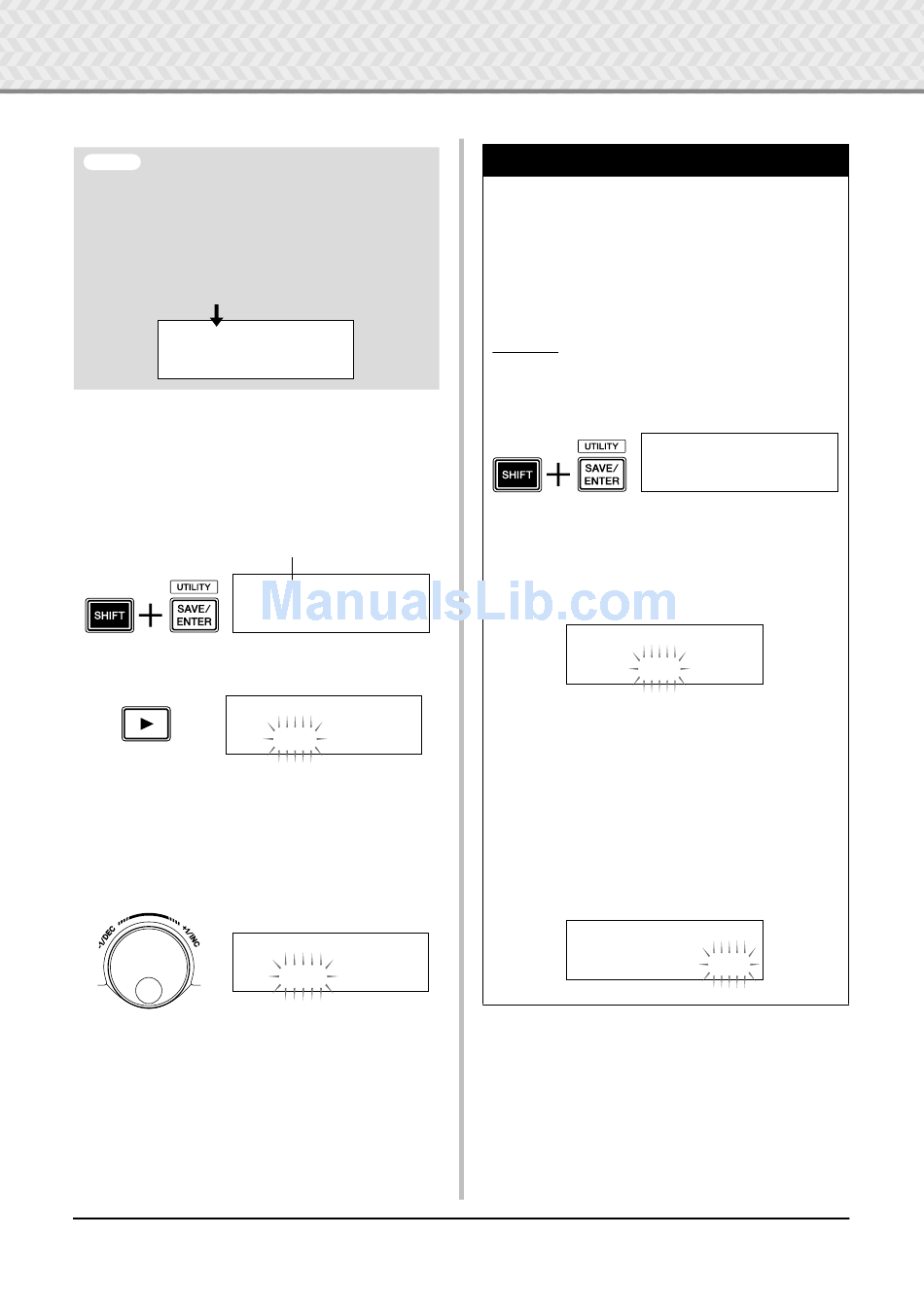

2 Time to Play
NOTICE
*
• An asterisk " " will appear next to "
once the volume is changed, indicating that the kit has
been edited. This asterisk will disappear after the Store
operation (p. 32) is carried out. If a different drum kit is
selected, etc., before carrying out the Store operation,
the current settings will return to their original condition.
If you want to keep changes made to the data, make sure
you carry out the Store operation.
KIT3*~~™tom1~~~˙
"~~Volume=110~~‚
4
Change the Output Sound Quality
Use the Master Equalizer found on Utility Page 5 to change
the output sound quality. Overall settings for the DTX500 are
set in the Utility pages.
First, press the [SHIFT] + [SAVE/ENTER] buttons to view
the Utility pages.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
>
Press the [ ] button five times to view Utility Page 5.
UTIL5~MasterEQ
"Lo=+~2~Hi=+~2~‚
Now use the Master Equalizer (two-band shelving type) set-
ting to change the sound quality.
"Lo=" is for the low-range gain setting (+0dB to +12dB) and
"Hi=" for the high-range gain setting (+0dB to +12dB).
< >
Press the [ ]/[ ] buttons to move the flashing cursor to the
item you want to set, then rotate the jog dial to set its value.
UTIL5~MasterEQ
"Lo=+~8~Hi=+~0~‚
You can also adjust or set the individual pad voices,
tuning, reverb type/level, and other settings that fine
tune the DTX500 (p. 26).
14
DTX500 Owner's Manual
KIT3
" in the display
Utility (Page 1)

Adjusting the Hi-hat

Hi-hat adjustment is used to determine the point at which
the hi-hat closes when the hi-hat pedal (foot controller) is
pressed. You can also set the threshold at which foot
'splashes' are produced.
* This setting is only valid when a foot controller is con-
nected to the HI HAT CONTROL jack. The setting has no
effect on a foot controller connected to any other jack.
Operation
1. Press the [SHIFT] + [SAVE/ENTER] buttons to view
Utility Page 1.
Use this display to adjust the hi-hat.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
2. To set the point at which the hi-hat closes, move the
flashing cursor to the "HHofs=" value then use the
jog dial to adjust the value.
The range of adjustment is -32 to 0 to +32. Smaller
values produce a shallower closing point.
UTIL1~Hi-hat
HHofs=-12~T=~~5‚
To set the ease at which foot splashes are produced,
move the flashing cursor to the "T=" value then use
the jog dial to adjust the value.
Settings include "off" and a range of 1 to 127. Larger
values make foot splashes that are long and easier to
produce. When this is set to "off," foot splashes are
not produced.
* Too high a value will make foot splashes too easy to pro-
duce, resulting in the continuous production of foot
splashes when the pedal is held down continuously.
UTIL1~Hi-hat
HHofs=-12~T=~20‚
