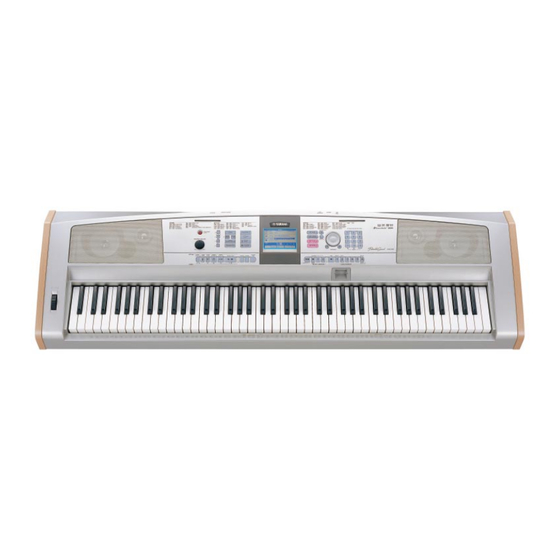

Summary of Contents for Yamaha Portable Grand DGX-305
Page 1
USER DATA BACKUP ..51/56 SYSTEM BOOTING FLOWCHART ........61/62 (起動フローチャート) MIDI IMPLEMENTATION CHART .......... 63 PARTS LIST (総回路図) OVERALL CIRCUIT DIAGRAM DGX-305 20040601-63000 001720 DGX-505 20040601-88000 HAMAMATSU, JAPAN LW-16 20040601- 9000 Copyright (c) Yamaha Corporation. All rights reserved. PDF- K7062 ’04.06...
Page 2
IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated.
Page 3
• 22W INTRO/ENDING/rit., MAIN/AUTO FILL • Fingering: Multi fingering Power Supply • Style Volume • Adaptor: Yamaha PA-5D AC power adaptor • Batteries: Six “D” size, R20P (LR20) or equivalent Card Slot batteries • 3.3V SmartMedia™ Dimensions (W x D x H) Education Feature •...
Page 5
DGX-305/DGX-505 (パネルレイアウト) PANEL LAYOUT Front Panel @7 @8 @9 #1 #2 #3 *The above illustration indicates the layout for the DGX-505, which is also used for the DGX-305. (※イラストはDGX-505です。 DGX-305も同様のレイアウトです。 ) q [STANDBY/ON] switch ([電源切/入] スイッチ) w [MASTER VOLUME] control ([全体音量] コントロール) e [TOUCH] button ([タッチレスポンス] ボタン)...
Page 11
JK802 JK801 SUSTAIN LCD CONTRAST BACK LIGHT VR801 JACK VR111 STANDBY/ON SMART PITCH MEDIA DISPLAY BEND 320 X 240 SW501 CN111(3P) CN802(4P) CN801(5P) CN1(26P) CN501(4P) CN103(2P) CN102(4P) CN302(3P) CN202(4P) CN301(5P) CN201(14P) CN801(26P) XD0-3 D0-7 DC/DC 6MHz CONVERTER +22~26V IC111 (3P) CR301 BATTERY M38K0...
Page 12
DGX-305/DGX-505 (分解手順) DGX-305 DISASSEMBLY PROCEDURE 注意: 1)フラットケーブルの接点が裏面から透けて見え Caution: 1) Flat cable’s contacts are visible from the back. ます。コネクタにケーブルの表、裏を逆に挿し Pay attention not to insert and install the cable 込まないように注意して取り付けてください。 to the connector inversely.(Photo.1) (写真 1) 2) Be sure to attach the removed filament tape 2)一度剥がしたフィラメントテープは、取り外す...
Page 13
DGX-305/DGX-505 DM シート (所要時間:約 4 分) DM Circuit Board (Time required: About 4 minutes) 下ケース Ass y を外します。 (1 項参照) 3-1. Remove the lower case assembly. [180A]のネジ4本を外して、 DMシートを外します。 (See procedure 1.) (図 5) 3-2. Remove the four (4) screws marked [180A]. The DM circuit board can then be removed.
Page 14
DGX-305/DGX-505 AM シート (所要時間:約 4 分) AM Circuit Board (Time required: About 4 minutes) 下ケース Ass y を外します。 (1 項参照) 6-1. Remove the lower case assembly. [180D]のネジ7本を外して、 AMシートを外します。 (See procedure 1.) (図 5) 6-2. Remove the seven (7) screws marked [180D]. The AM circuit board can then be removed.
Page 18
DGX-305/DGX-505 MK-76H シート、MK-76L シート MK-76H Circuit Board, MK-76L Circuit Board (所要時間:約 8 分) (Time required: About 8 minutes for each) 18-1. Remove the lower case assembly. 18-1 下ケース Ass y を外します。 (1 項参照) (See procedure 1.) 18-2 E0からB3までの白鍵/黒鍵を外します。 (17項参照) [220A]のネジ14本を外して、 MK-76Lシートとキー 18-2.
Page 19
DGX-305/DGX-505 DGX-505 DISASSEMBLY PROCEDURE (分解手順) Caution: 1) Flat cable’s contacts are visible from the back. 注意: 1)フラットケーブルの接点が裏面から透けて見え Pay attention not to insert and install the cable ます。コネクタにケーブルの表、裏を逆に挿し to the connector inversely.(Photo.1) 込まないように注意して取り付けてください。 2) Be sure to attach the removed filament tape (写真...
Page 20
DGX-305/DGX-505 接点バネ (+) 、 (−) と接点バネの外し方 Spring Terminal Spring Terminal (+) and (-) 接点バネ(+)と(−) 2-1. Remove the Lower case assembly. (See procedure 1) 2-1. 下ケース Ass y を外します。 (1 項参照) 2-2. Remove the battery harness soldered to the spring 2-2. 接点バネ(+)...
Page 21
DGX-305/DGX-505 PB シート、ホイール Ass y PB Circuit Board, Wheel Assembly (所要時間:約 9 分) (Time required: About 9 minutes) 下ケース Ass y を外します。 (1 項参照) 5-1. Remove the lower case assembly. [180C]のネジ 2 本を外して、PB シートとホイール (See procedure 1.) Ass y を外します。 (図 5) ※ホイール...
Page 22
DGX-305/DGX-505 〈 Bottom View 〉 LCD Unit(液晶ユニット) [180F] [180F] [180J] [180J] [180F] [180K] (+バインドBタイト) [180]: Bind Head Tapping Screw-B 3.0x8 MFZN2Y (EP600250) (図7) Fig.7 JACK Circuit Board JACK シート (Time required: About 10 minutes) (所要時間:約 10 分) 10-1 下ケース Ass y を外します。 (1 項参照) 10-1.
Page 25
DGX-305/DGX-505 MK-88L、MK-88C、MK-88H シート MK-88L Circuit Board, MK-88C Circuit Board, MK-88H Circuit Board (所要時間:約 16 分) (Time required About 16 minutes) 18-1 下ケース Ass y を外します。 (1 項参照) 18-1. Remove the lower case assembly. 18-2 A-1 から B2 までの白鍵/黒鍵を外します。 (17 項参 照) (See procedure 1.) 18-2.
Page 26
DGX-305/DGX-505 (LSI 端子機能表) LSI PIN DESCRIPTION YMW767-V (X3271A00) CPU ....................26 S1D13305F00B100 (XQ595A00) LCD CONTROLLER ............27 µPD789022GB-A15-8E (XZ560100) CPU ................27 M4A3-32/32-10VC48 (X3831A00) CPLD ................28 YMW767-V (X3271A00) CPU DM: IC101 NAME FUNCTION NAME FUNCTION Ground Ground 2 TESTN (SCMD) TEST Pin Power supply PLLBPN...
Page 27
DGX-305/DGX-505 S1D13305F00B100 (XQ595A00) LCDC (LCD Controller) DM: IC201 NAME FUNCTION NAME FUNCTION Data bus output for 4 bit dot VRAM address bus XECL S driver enable, chain clock XSCL Data bus shift clock Ground /VWR VRAM read/write X driver latch pulse /VCE Memory control Frame signal for X/Y driver...
Page 28
DGX-305/DGX-505 M4A3-32/32-10VC48 (X3831A00) CPLD DM: IC801 NAME FUNCTION NAME FUNCTION Data bus Data bus Test data in Test mode select 5 CLK0/I0 Clock/Input 29 CLK1/I1 Clock/Input No connect No connect Ground Ground Test clock Test data out Data bus Data bus Power supply Power supply No connect...
Page 29
DGX-305/DGX-505 (IC ブロック図) IC BLOCK DIAGRAM (IS003200) NJM2360AM (X0200A00) NJM4580E TE2 (X2331A00) HD74LV32AFPEL (X4174A00) DC-DC Converter Dual Operational Amplifier 74LVX32SJX DM: IC402 DM: IC203 (X4176A00) SN74LV32ANSR Quad 2 Input OR DM: IC107 +DC Voltage Output A Supply Inverting Output B Input A Inverting Non-Inverting...
DGX-305/DGX-505 DM Circuit Board to RELAY-CN01 not installed to JACK-CN801 to PB-CN111 to PNR -CN06 LCD Unit to JACK -CN802 to PNL to AM -CN01 -CN104 Component side (部品側) to SM-CN1 Pattern side (パターン側) 2NA-WC52410...
DGX-305/DGX-505 AM Circuit Board PHONES/ DC IN 12V OUTPUT to TW(L) to Battery to TW(R) to PSW-CN501 to Speaker (Woofer) to Backlight assembly to DM-CN101 to MVR-CN601 Component side (部品側) MVR Circuit Board MASTER VOLUME to AM-CN205 (部品側) (パターン側) Component side Pattern side AM : 2NA-WC52370 MVR : 2NR-WC52450...
DGX-305/DGX-505 AM Circuit Board Pattern side (パターン側) ENC Circuit Board Rotary Encoder to PNR-CN07 (部品側) (パターン側) Component side Pattern side ENC : 2NA-WC52450...
DGX-305/DGX-505 PNL Circuit Board to DM-CN602 DEMO TOUCH FUNCTION LESSON HARMONY L / R MODE LESSON REPEAT & LEARN METRONOME DUAL PERFORMANCE ASSISTANT PORTABLE GRAND SPLIT START / STOP TEMPO / TAP SCORE LYRICS MAIN / AUTO FILL INTRO / ENDING / rit. SYNC START SYNC STOP ACMP...
DGX-305/DGX-505 PNL Circuit Board (パターン側) Pattern side PSW Circuit Board STANDBY / ON to AM-CN102 Component side (部品側) Pattern side (パターン側) 2NA-WC52450...
DGX-305/DGX-505 PNR Circuit Board to DM-CN601 FILE CONTROL SONG EXECUTE EASY SONG ARRANGER STYLE VOICE DELETE RESET CATEGORY MEMORY STYLE LEFT RIGHT EXIT BANK DISPLAY CLEAR SONG MEMORY REGIST. MEMORY to ENC-CN901 (部品側) Component side PB Circuit Board PITCH BEND to DM-CN302 (部品側)...
DGX-305/DGX-505 MK-88H Circuit Board (DGX-505) to MK-88C to RELAY -CN83 (部品側) Component side MK-88L Circuit Board (DGX-505) to RELAY-CN81 to MK-88C Component side (部品側) MK-88H : 2LPK8-X0000A0 MK-88L : 2LPK8-X0002A0...
DGX-305/DGX-505 RELAY Circuit Board not installed(DGX-305) to MK-88C(DGX-505) to DM-CN701 not installed(DGX-305) to MK-88L(DGX-505) not installed(DGX-305) to MK-76L-CN5(DGX-305) to MK-88H(DGX-505) not installed(DGX-505) to MK-76H-CN1(DGX-305) to MK-76L-CN4(DGX-305) to MK-88C(DGX-505) not installed(DGX-505) Component side (部品側) (パターン側) Pattern side 2NA-WC52530...
Page 45
DGX-305/DGX-505 TEST PROGRAM *If you execute the test No.47, factory Set, then preset data may be lost. A. PREPARATION 1) PA-5D or PA-51 (AC adaptor) is used. 2) Measuring instruments : frequency counter, level meter (with JIS-C filter) Note : Connect a stereo plug to the [PHONES/OUTPUT] jack at 33 ohms. 3) Jigs : foot switch (FC-4 or FC-5), USB cable, PC (Install a USB-MIDI driver in PC and finish a through setup.), Smartmedia B.
Page 46
DGX-305/DGX-505 TEST No. LCD (initial) Test Functions and Judgment Criteria Output the sine wave by changing the channels in sequence from C2 to G4.[32 notes] Check the sound by hearing that there is not noise or abnormal sound. After auto-scaling is finished, individual keys can be played. (If playing two or more keys simultaneously, the first pressed key has priority to make a sound.) Connect the frequency counter to the [PHONES/OUTPUT] jack.
Page 47
DGX-305/DGX-505 テストプログラム ※テストナンバー 47 の Factory Set を実行すると、設定したデータが失われます。 A. 測定条件 1) ACアダプターはPA-5Dを使用。 測定器: 周波数カウンター、レベル計(JIS-Cフィルター使用) 注) 特に指示のない限りステレオプラグを用い、33Ω負荷を接続して[PHONES/OUTPUT]端子にて測定します。 治具:フットスイッチ(FC-4またはFC-5) 、USBケーブル、PC(USB-MIDIドライバーをインストールし、スルーの設定を 済ませておきます。)、スマートメディア B. テストプログラムの起動 C2#とF2とG2#の鍵盤を同時に押さえながら、[電源]スイッチをONにします。 DGX-305 切 入 DGX-505 切 入 C. テストの進め方 1) テストプログラムが起動されると、LCDに が表示されます。 2) 数字ボタンの[-], [+]ボタンを押して、テストプログラムの項目を選択します。 3) [START/STOP]ボタンを押して、テストを実行します。 結果がOKの場合は、再度[スタート/ストップ]ボタンを押してテスト項目表示に戻します。 数字ボタンの[-], [+]ボタンを押して、次のテスト項目を選択します。 OKだったテスト項目には、テスト項目名の前に*が表示されます。 結果がNGの場合は、[デモ]ボタンまたは鍵盤の最低音(一番左端の白鍵)を押してテスト項目表示に戻します。 [電源]スイッチをOFFにして、テストプログラムを終了します。 D.
Page 49
DGX-305/DGX-505 (表1) Table 1 SW名 表示 ノート番号 SW Name Display Note No. DIAL UP Dial up Dial Down DIAL DOWN Touch TOUCH Harmony HARMONY Dual DUAL SPLIT Split DEMO Demo Lesson Mode LESSON MODE Lesson L/R LESSON L/R Rep & Learn REP &...
Page 50
DGX-305/DGX-505 INITIALIZATION This function erases all backup data in the instrument’s flash memory and restores the initial default settings. The following initialization procedures are provided. Backup Clear To clear data backed up to the internal flash memory – panel user setting, registration memory, user songs, style files – turn the power on by pressing the [STANDBY/ON] switch while holding the highest white key on the keyboard.
Page 51
Also, see Help on how to use the Musicsoft Downloader. <Free download pages for the Musicsoft Downloader> http://music.yamaha.com/downloadTypeMusicsoftDownloader.html *2 “External style files” are style files that you can download from the Internet or acquire from other sources. This instrument...
Page 52
DGX-305/DGX-505 A. BULK SEND 1 Press the [FUNCTION] button to call up the FUNCTION display. 2 Use the CATEGORY [ ] and [ ] buttons to select the "Bulk Send". The name of the previous item in the list appears to the upper left, and the name of the next item in the list appears to the upper right of the currently selected item.
Page 53
DGX-305/DGX-505 B. SMARTMEDIA Inserting a SmartMedia Card Insert a SmartMedia* card into the card slot, Check that the file control icon appears in being careful to insert it with the proper ori- the MAIN display. entation. The gold connector terminals on the SmartMedia card should be facing upward.
Page 54
DGX-305/DGX-505 Change the Media Select Setting to SmartMedia In order to perform any SmartMedia operations you will first need to make sure that the FUNCTION display Media Select item is set to SmartMedia. If the FUNCTION Display Media Select item is set to SmartMedia and a SmartMedia card is properly inserted in the instrument’s card slot the file control icon will appear in the MAIN display.
Page 55
DGX-305/DGX-505 Saving Data Three types of data are saved to one “User Data File” by this operation: user song, style file (style number 136), and registration memory data. When you save a user song the style file and registration memory are also saved automati- cally.
Page 61
Initialize LCD data to LCDC Initialize USB Opening screen If the opening screen does not will appear appear, LCD or LCDC may be (YAMAHA Logo) defective. Sound may be produced by MIDI (USB). Send a message to Check media Flash ROM...
Page 62
DGX-305/DGX-505 起動フローチャート Power ON 割り込み機能設定 タイマカウント 優先順位 各種レジスタ設定 鍵盤受信開始 (MKS) ポートの初期化 MKS ACK=L,H MKS /IC=L MKS ACK=H USB CPU /IC=L LCD /IC=L LCD DISP=L 割り込み解除 外部RAMへの ワークRAM初期化 アクセスが発生する USB CPU /IC=H LCD /IC=H テスト モード? MKS /IC=H テスト プログラム 表示 LCD DISP=H ここまでこない CPUまたはCPU周辺 テストに入れない (ROM/RAM/Flash) の不良 鍵盤又はMKSの不良 LCD-Cにコマンド 鍵盤で音を鳴らすことが可能 LCD初期化 及びデータ送信 USBマイコン 初期化...
Page 64
DGX-305/DGX-505 NOTE: 1 By default (factory settings) the instrument ordinarily func- <Reverb Type> F0H, 43H, 1nH, 4CH, 02H, 01H, 00H, tions as a 16-channel multi-timbral tone generator, and mmH, llH, F7H incoming data does not affect the panel voices or panel •...
Page 88
DGX-305/DGX-505 PART NO. DESCRIPTION 部 品 名 REMARKS REF NO. RANK ダ イ オ ー ド D0001 VB941200 Diode 1SS133,1SS176 -0004 VB941200 Diode 1SS133,1SS176 ダ イ オ ー ド LD001 WC762200 LED Red L E D SONG LD002 WC762200 LED Red L...
Page 89
Keyboard Stand LW-16 PARTS LIST CONTENTS (目次) OVERALL ASSEMBLY ..........2 (総組立) Notes : DESTINATION ABBREVIATIONS A : Australian model M : South African model B : British model O : Chinese model C : Canadian model Q : South-east Asia model D : German model T : Taiwan model E : European model...
