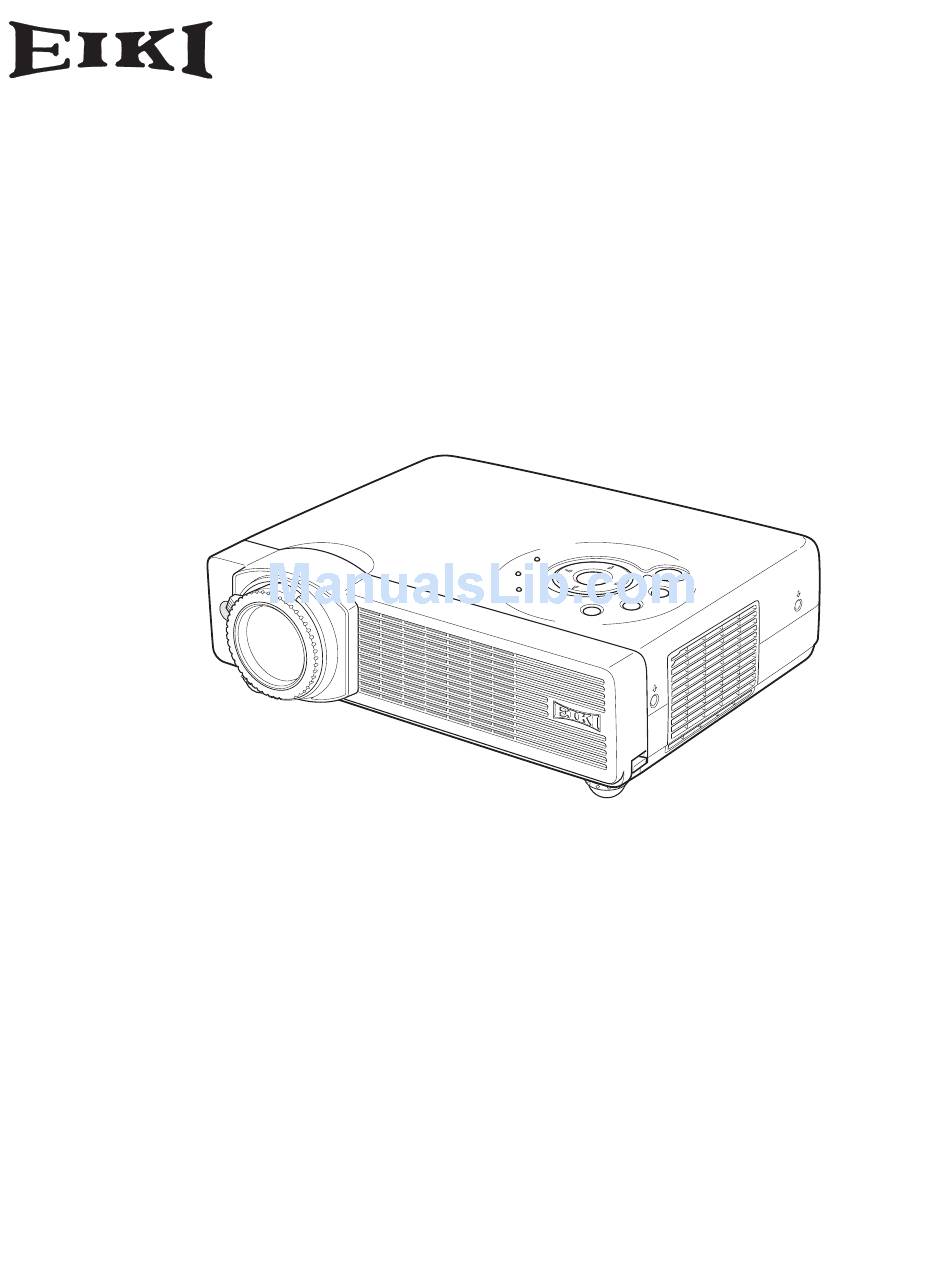

MULTIMEDIA PROJECTOR
LC-XB28
MODEL
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-XB28 and is the answer not in the manual?

Questions and answers

Related Manuals for Eiki LC-XB28

Summary of Contents for Eiki LC-XB28

  • Page 1 MULTIMEDIA PROJECTOR LC-XB28 MODEL OWNER’S MANUAL...
  • Page 2 Enlgish The following are corrections to the owner's manual. Please refer to this sheet for the information on the corresponding pages shown below. Page13 Positioning the Projector A : B = 9 : 1 3.3' (1.0m) Screen Size (W x H) mm...
  • Page 3 Deutsch An der Bedienungsanleitung wurden die folgenden Korrekturen vorgenommen. Für Informationen über die nachstehend aufgeführten Seiten wird auf dieses Blatt verwiesen. Seite13 Positionieren des Projektors A : B = 9 : 1 Bildgröße (B x H) mm Bildseitenverhältnis 4 : 3 Zoom (min.) Zoom (max.) Seite56...
  • Page 4 Français Les rectifications suivantes sont des rectifications au mode d’emploi. Veuillez consulter cette page pour toutes informations concernant les pages ci-dessous. Page13 Positionnement du projecteur A : B = 9 : 1 Taille d’écran (L x H) mm Taux d’aspect 4 : 3 Zoom (min.) Zoom (max.) Page56...
  • Page 5 Italiano Le seguenti sono modifiche al manuale d’uso. Controllare i numeri di pagina qui di seguito per le informazioni del caso. Pagina13 Posizionamento del proiettore A : B = 9 : 1 Grandezza dello schermo (L x A) mm Rapporto larghezza altezza 4 : 3 Zoom (min.) Zoom (max.) Pagina56...
  • Page 6 Español Las siguientes son correcciones del manual del usuario. Consulte esta hoja por información acerca de las páginas correspondientes indicadas a continuación. Página13 Colocación del proyector A : B = 9 : 1 Tamaño de la pantalla (An x Al) mm Relación de pantalla 4 : 3 Zoom (mín.) Zoom (max.)

  • Page 7: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ◆ Compact Design This projector is designed compact in size and weight.

  • Page 8: Table Of Contents

    Safety Instructions ....5 Air Circulation Installing the Projector in Proper Position Moving the Projector Compliance ......7 Part Names and Functions .

  • Page 9: To The Owner

    0.7'(20cm) – If the projector is not to be used for an extended time, unplug the projector from the power outlet. READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

  • Page 10: Safety Instructions

    Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector.

  • Page 11: Air Circulation

    – When carrying a projector, use a suitable carrying case. – Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for their information.

  • Page 12: Compliance

    Telephone No. : 800-242-3454 (949-457-0200) The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada : AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 13: Part Names And Functions

    Part Names and Functions Front w e r t Back Bottom q Power Cord Connector w Infrared Remote Receiver e Zoom Lever r Focus Ring t Projection Lens y Lens Cover (See page 46 for attaching.) u Air Intake Vent i Top Controls and Indicators o Air Intake Vent !0 Terminals and Connectors...

  • Page 14: Rear Terminal

    COMPUTER IN 2 / MONITOR OUT. w SERVICE PORT This jack is used to service this projector. e AUDIO IN Connect the audio output from video equipment connected to r or i to this jack. (When the audio output is monaural, connect it to L (MONO) jack.)

  • Page 15: Top Control

    (p31) t POWER indicator Blink red until the projector gets ready to be turned on. It turns red when the projector is in the stand- by mode. It remains green while the projector is under operation. (p52) ON - OFF...

  • Page 16: Remote Control

    Point the remote control toward the projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front of the projector. q POWER ON-OFF button Turn the projector on or off. (p18, 19) w VIDEO button Select VIDEO input source.

  • Page 17: Remote Control Battery Installation

    Part Names and Functions Remote Control Battery Installation Remove the battery compartment lid. Pull up and remove the lid. To ensure safe operation, please observe the following precautions : – Use (2) AAA, LR03 type alkaline batteries. – Replace two batteries at the same time. –...

  • Page 18: Installation

    Positioning the Projector This projector is designed to project on a flat projection surface and can focus from 4.3’(1.3m) - 32.8’(10.0m). Refer to the figure and the table below for the screen size and the distance between the projector and the screen.

  • Page 19: Connecting The Ac Power Cord

    NOTE ON THE POWER CORD AC power cord must meet requirement of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer.

  • Page 20: Connecting To A Computer

    • If you wish to use PAGE buttons on the remote control, connect USB port of your computer to the USB socket of the projector. (p9 and 42) • When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

  • Page 21: Connecting To Video Equipment

    • The S-VIDEO jack has priority over the VIDEO jack under the condition of connecting both the S-VIDEO jack and the VIDEO jack when selecting AUTO in the Input Menu. • When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected. Note:...

  • Page 22: Connecting To Component Video Equipment

    MONITOR OUT MONITOR OUT ✔ Note: • When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected. • See p58 for ordering the optional parts. Note: When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

  • Page 23: Basic Operation

    After the count-down, the input source that was selected last and the Lamp mode status icon (see page 42) will appear on the screen. If the projector is locked with a PIN code, PIN code Input Dialog Box will appear. Enter the PIN code as instructed below.

  • Page 24: Turning Off The Projector

    POWER indicator blinking red. You can turn it on again after the POWER indicator lights red. • When the On start function is on, this projector is turned on automatically by connecting the AC power cord to an AC outlet.

  • Page 25: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages regarding each adjustment and setting procedure. Press the MENU button to display the On-Screen Menu. Press the Point 7 8 buttons to select a Menu icon to adjust.

  • Page 26: Menu Bar

    Tint / Color temp. / White balance (R/G/B) / Sharpness / Gamma / Progressive / Film] (p36, 37) Basic Operation Setting Menu Used to set the projector's operating configurations. (p39-44) Sound Menu Used to adjust volume or mute sound. (p23)

  • Page 27: Zoom And Focus Adjustment

    Basic Operation Zoom and Focus Adjustment Rotate the Zoom Lever to zoom in and out. Rotate the Focus Ring to adjust the projected picture focus. Keystone Adjustment If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment. Press the KEYSTONE button on the top control, the remote control or select Keystone in the Setting Menu (p39).

  • Page 28: No Show Function

    No Show Function Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as “User” in the Logo item (p40), the screen changes each time you press the NO SHOW button as follows.

  • Page 29: Computer Input

    Computer Input Input Source Selection Direct Operation Choose either Computer 1 or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below.

  • Page 30: Computer System Selection

    Computer System Selection This projector automatically tunes to various types of computers based on VGA, SVGA, XGA or SXGA with its Multi-scan system and Auto PC Adjustment. If Computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional setting.

  • Page 31: Auto Pc Adjustment

    To store adjustment parameters Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, the setting can be done just by selecting Mode in the PC System Menu (p25). See “Store” on page 28.

  • Page 32: Manual Pc Adjustment

    Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 5 independent memory areas to memorize those parameters manually adjusted. It allows you to recall the setting for a specific computer.
  • Page 33 Display area Select the resolution at the Display area dialog box. Display area H Adjust the horizontal area displayed by this projector. Press the Point 7 8 buttons to decrease/increase value and then press the SELECT button. Display area V Adjust the vertical area displayed by this projector.

  • Page 34: Image Level Selection

    Select an image level among Standard, Real, Blackboard(Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control. Standard Normal picture level preset on this projector. Real Picture level with improved halftone for graphics. Blackboard(Green) Picture level suitable for the image projected on a blackboard.

  • Page 35: Image Level Adjustment

    Computer Input Image Level Adjustment Press the MENU button to display the On-Screen Menu. Press the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon. Press the Point d button to move the red frame pointer to the item that you want to adjust, and then press the SELECT button.

  • Page 36: Screen Size Adjustment

    Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Press the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon.

  • Page 37: Video Input

    When selecting Auto automatically detects incoming video signal, and adjusts itself to optimize its performance. The projector selects connection in the following order: 1st S-Video 2ndVideo The S-VIDEO jack has priority over the VIDEO jack under the condition of connecting both the S-VIDEO jack and the VIDEO jack.

  • Page 38: Input Source Selection (Component, Rgb Scart 21-Pin)

    Input Source Selection (Component, RGB Scart 21-Pin) Direct Operation Choose Computer 1 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below. Menu Operation Press the MENU button to display the On-Screen Menu.

  • Page 39: Video System Selection

    When Video System is PAL-M or PAL-N, select system manually. PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If the projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N.

  • Page 40: Image Level Selection

    Select a desired image level among Standard, Cinema, Blackboard (Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control. Standard Normal picture level preset on this projector. Cinema Picture level adjusted for the picture with fine tone. Blackboard(Green) Picture level suitable for the image projected on a blackboard.

  • Page 41: Image Level Adjustment

    Video Input Image Level Adjustment Press the MENU button to display the On-Screen Menu. Press the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon. Press the Point d button to move the red frame pointer to the item that you want to adjust and then press the SELECT button.
  • Page 42 L2 ..Select “L2” for a still picture. Film This function is effective on 3-2 pulldown video source. With this function on, the projector reproduces pictures faithful to the original film quality. Reset To reset the adjusted data, select Reset and press the SELECT button.

  • Page 43: Screen Size Adjustment

    Video Input Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Press the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon.

  • Page 44: Setting

    Setting Setting This projector has Setting menu that allows you to set up the other various functions described as follows; Press the MENU button to display the On-Screen Menu. Press the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.
  • Page 45 After capturing the projected image, go to the Logo function and set it to “User”. Then the captured image can be displayed when turning on the projector next time or pressing the NO SHOW button. (p23) To capture the image, select [Yes]. To cancel the Capture function, select [No].
  • Page 46 Terminal The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 9) Select Computer 2 or Monitor Out with the Point 7 8 buttons. Computer 2 ..computer input Monitor Out .
  • Page 47 Press and hold both the MENU and IMAGE buttons together for 10 seconds or more. After changing the code, make sure the remote control operates properly. This projector is equipped with the USB port for interactive operation between the projector and computer. Select proper and available port.
  • Page 48 This function prevents the projector from being operated by an unauthorized person and provides the following settings for security options. Off ...the projector is not locked with the PIN code. On1 ...requires to enter the PIN code every time turning on the projector.
  • Page 49 L1 ..normal operation L2 ..slower operation than the normal (L1) , but takes longer to cool down the projector. In this mode, cooling time after turning off the projector will be extended longer than in the normal mode.

  • Page 50: Maintenance And Cleaning

    Maintenance and Cleaning Warning Indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red.

  • Page 51: Cleaning The Air Filters

    Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean the air filters following the steps below.

  • Page 52: Cleaning The Projection Lens

    Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface. When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches.

  • Page 53: Lamp Replacement

    Maintenance and Cleaning Lamp Replacement When the life of the projection lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the lamp with a new one promptly. WARNING: TURN OFF THE UV LAMP BEFORE...

  • Page 54: Lamp Replace Counter

    Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service.

  • Page 55: Appendix

    Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described in "Connecting to a Computer" and “Connecting to Video Equipment” on page15–17.
  • Page 56 High voltages are used to operate this projector. Do not attempt to open the cabinet. If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Give the model number and explain about the problem. We will advise you how to obtain service.

  • Page 57: Indicators And Projector Condition

    The projector is preparing for stand-by or the projection lamp is ✽ being cooled down. The projector cannot be turned on until cooling is completed. The projector is ready to be turned on with the POWER ON-OFF ✽ button. ✽...

  • Page 58: Menu Tree

    Menu Tree Computer Input / Video Input Input Computer 1 Computer 2 Video Sound Sound Volume Mute Quit Computer Input System MODE 1 MODE 2 SVGA 1 - - - - ✽Systems displayed in the System Menu vary depending on an input signal. PC Adjust Auto PC Adj.
  • Page 59 On start On / Off Lamp mode Normal Auto Eco1 Eco2 Remote control Code 1 Code 2 Mouse / Projector Key lock Projector Remote Control Quit PIN code lock PIN code change Quit L1 / L2 Lamp counter reset Yes / No...

  • Page 60: Compatible Computer Specifications

    Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 130 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN H-Freq. RESOLUTION DISPLAY...

  • Page 61: Technical Specifications

    Appendix Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System High Definition TV Signal Scanning Frequency Optical Information Projection Image Size (Diagonal)
  • Page 62 Accessories Owner's Manual AC Power Cord Remote Control and Batteries VGA Cable Lens Cover with String and Screw PIN Code Label ● The specifications are subject to change without notice. ● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

  • Page 63: Configurations Of Terminals

    Appendix Configurations of Terminals COMPUTER INPUT/COMPONENT INPUT/MONITOR OUTPUT TERMINAL (ANALOG) Terminal : HDB15-PIN Pin Configuration SERVICE PORT CONNECTOR Terminal : Mini DIN 8-PIN Pin Configuration 8 7 6 USB CONNECTOR (Series B) Pin Configuration Optional Parts The parts listed below are optionally available. When ordering those parts, give the item name and Model No. to the sales dealer.

  • Page 64: Pin Code Number Memo

    PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No.
  • Page 65 Printed in Japan Part No. 610 326 5414 (1AA6P1P5022-- KD6B) A-key to better communications Canada EIKI CANADA - Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com...
