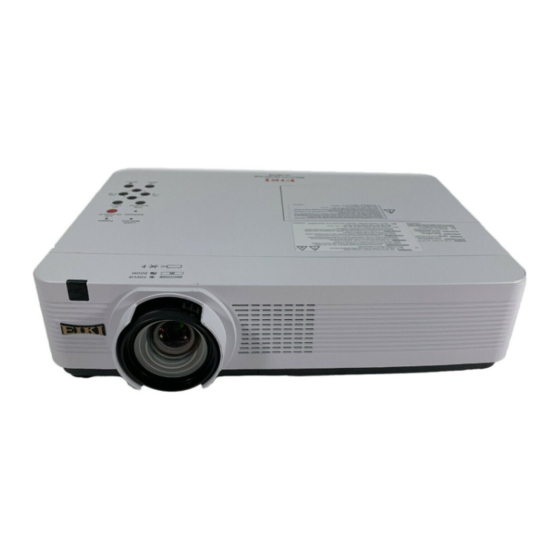

Eiki LC-XB250 Owner's Manual

Multimedia projector
Hide thumbs Also See for LC-XB250:
Table of Contents

Advertisement

Quick Links

Download this manual
Multimedia Projector
MODEL LC-XB250
Network Supported
 Wired LAN
Refer to the Owner's Manuals
below for details about network
function.
 Network Set-up and Operation
 PJ Network Manager
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-XB250 and is the answer not in the manual?

Questions and answers

Moses
July 9, 2025

Can it be connected to mobile phones?

0

Subscribe to Our Youtube Channel

Related Manuals for Eiki LC-XB250

Summary of Contents for Eiki LC-XB250

  • Page 1 Multimedia Projector Network Supported  Wired LAN Refer to the Owner's Manuals below for details about network MODEL LC-XB250 function.  Network Set-up and Operation  PJ Network Manager Owner's Manual...

  • Page 2: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.  Compact Design ...

  • Page 3: Table Of Contents

    Table of Contents Features and Design . . . . . . . . . . . . . . . . . . .2 Auto PC Adjustment Manual PC Adjustment Table of Contents .

  • Page 4: To The Owner

    To the Owner Before installing and operating this projector, read this Safety Precaution manual thoroughly. This projector provides many convenient features and wARNING: THIS APPARATUS MUST BE EARTHED .  functions. Operating the projector properly enables TO REDUCE THE RISK OF FIRE OR ...

  • Page 5: Safety Instructions

    Safety Instructions All the safety and operating instructions should be read Do not install the projector near the ventilation duct of before the product is operated. air-conditioning equipment. Read all of the instructions mentioned here and retain This projector should be operated only from the type them for later use.

  • Page 6: Air Circulation

    Safety Instructions Installing the Projector in Proper Air Circulation Position Openings in the cabinet are provided for ventilation. To Install the projector properly. Improper Installation ensure reliable operation of the product and to protect it may shorten the lamp life and cause a fire hazard. from overheating, these openings must not be blocked or covered.

  • Page 7: Compliance

    If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : LC-XB250 Trade Name : EIKI Responsible party : EIKI International,Inc. Address : 30251 Esperanza Santa Margaria CA 92688-2123 Telephone No. : 800-242-3454 (949-457-0200) AC Power Cord Requirement The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

  • Page 8: Part Names And Functions

    Part Names and Functions ① Infrared Remote Receiver Front ② Zoom Ring ③ Focus Ring ④ Projection Lens CAUTION Do not cover the light beam in front of the lens. High temperature from light beam may damage the lens. ⑤ Lens Cap (See page 62 for attaching.) CAUTION Do not turn on a projector with lens cap attached.

  • Page 9: Rear Terminal

    Part Names and Functions Rear Terminal ⑤ ④ ① ③ ② ⑥ ⑦ ⑪ ⑩ ⑨ ⑧ ⑦ CONTROL PORT ① LAN Connection Terminal When controlling the projector with RS-232C, Connect the LAN cable (refer to the owner’s manual connect the control equipment to this connector of "Network Set-up and Operation").

  • Page 10: Top Control

    Part Names and Functions Top Control ⑨ ⑤ ④ ⑧ ⑦ ③ ② ① ⑥ ① SELECT button ⑦ AUTO SETUP button – Execute the selected item (p.21). Execute the setting of Auto setup (includes Input – Expand or compress the image in the Digital zoom search, Auto PC adj.

  • Page 11: Remote Control

    Part Names and Functions Remote Control ① ON/STAND-By button Turn the projector on or off. (pp.18-20) ② AUTO SET button Execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu. (pp.23, 47) ③...

  • Page 12: Remote Control Battery Installation

    Part Names and Functions Remote Control Battery Installation Open the battery Install new batteries Replace the compartment lid. into the compartment. compartment lid. Two AAA size batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

  • Page 13: Installation

    Installation Positioning the Projector For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. Note:  • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image. • All measurements are approximate and may vary from the actual sizes. 23.7’(7.23m) 15.8’(4.81m) 11.8’(3.6m) 186" 7.8’(2.39m) 2.3’(0.69m) 124"...

  • Page 14: Connecting To A Computer

    Installation Connecting to a Computer Cables used for connection • VGA Cables (Mini D-sub 15 pin) * • Audio Cables • DVI cable • VGA-DVI cable (*One cable is supplied; other cables are not supplied with the projector.) Monitor Output Monitor Output Monitor Input Audio Output External Audio Equipment VGA-DVI cable cable cable cable Audio Input Audio cable...

  • Page 15: Connecting To Video Equipment

    Installation Connecting to Video Equipment Cables used for connection • Video and Audio Cable (RCA x 3) • S-VIDEO Cable • Audio Cable (Cables are not supplied with the projector. ) External Audio Equipment Video and Audio Output Audio Input (Video) S-Video Output Video and audio cable S-Video cable Audio cable (stereo) AUDIO IN AUDIO OUT (stereo)

  • Page 16: Connecting To Component Video Equipment

    Installation Connecting to Component Video Equipment Cables used for connection • Audio Cables • Scart-VGA Cable • VGA Cable • Component Cable • Component-VGA Cable (Cables are not supplied with this projector.) External Audio Equipment RGB Scart Component Video Output 21-pin Output Audio Output Monitor Input (Y, Pb/Cb, Pr/Cr) Audio Input Component cable Scart-VGA...

  • Page 17: Connecting The Ac Power Cord

    Installation Connecting the AC Power Cord This projector uses nominal input voltages of 100-240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 18: Basic Operation

    Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red. Open the lens cap (see pages 8, 62). http://www.eiki.com Press the ON/STAND-BY button on the top control or on the remote control. The POWER indicator lights The preparation display will disappear green and the cooling fans start to operate.
  • Page 19 Basic Operation Enter a PIN code Use the Point buttons to enter a number. Press the ▲▼ PIN Code Input Dialog Box Point button to fix the number and move the red frame ► pointer to the next box. The number changes to “ ”.

  • Page 20: Turning Off The Projector

    Basic Operation Turning Off the Projector Press the ON/STAND-BY button on the top control or on the remote control, and Power off? appears on the screen. Press the ON/STAND-BY button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running.

  • Page 21: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Top Control Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment POINT buttons and setting procedure, refer to respective sections in this (arrowhead)

  • Page 22: Main Menu

    Basic Operation Main Menu For detailed functions of each menu, see “Menu Tree” on pages 68-69. Main Menu Sub-Menu            Input Used to select an input source from Computer 1, Computer 2, Video or S-video. (pp.27-28,38-39).

  • Page 23: Zoom And Focus Adjustment

    Basic Operation Zoom and Focus Adjustment Rotate the Zoom Ring to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Focus Ring Zoom Ring Auto Setup Function Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search, Auto PC adj.

  • Page 24: Sound Adjustment

    Basic Operation Sound Adjustment Top Control Direct Operation VOLUME+/- Volume buttons Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Remote Control Mute Press the MUTE button on the remote control to select On...

  • Page 25: Remote Control Operation

    Basic Operation Remote Control Operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER 1/2, VIDEO, S-VIDEO and Remote Control COMPONENT buttons COMPUTER 1/2...
  • Page 26 Basic Operation NO SHOw button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as User in the Logo selection (p.

  • Page 27: Computer Input

    Computer Input Input Source Selection {(RGB: Computer 1/Computer 2(Analog)} Direct Operation Choose either Computer 1(RGB) or Computer 1(Scart) or Computer 2(Analog) by pressing the INPUT button on the top control or press the COMPUTER 1 button or Computer 2 on the remote control. Before using INPUT button, correct input source should be selected through Menu operation as described below.

  • Page 28: Input Source Selection {Computer2: Rgb(Pc Digital), Rgb(Av Hdcp)

    Computer Input Input Source Selection {Computer2: RGB(PC digital), RGB(AV HDCP)} Direct Operation Choose Computer 2 (PC digital) or Computer 2 (AV HDCP) by pressing the INPUT button on the top control or press the COMPUTER 2 button on the remote control. Before using INPUT button, correct input source should be selected through Menu operation as described below.

  • Page 29: Computer System Selection

    Computer Input Computer System Selection This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 71-72.) One of the following messages may appear when: When the projector cannot recognize the...

  • Page 30: Auto Pc Adjustment

    Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical to conform to your computer. Menu Operation PC adjust Menu Auto PC adj . Press the MENU button to display the On-Screen Menu.

  • Page 31: Manual Pc Adjustment

    Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
  • Page 32 Computer Input Reset Mode free To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures. Mode free To clear the stored data, select Mode free and then press the Point ►...

  • Page 33: Image Mode Selection

    Computer Input Image Mode Selection Remote Control Direct Operation IMAGE button Select the desired image mode among Dynamic, Standard, Dynamic Real, Cinema, Blackboard(Green), Colorboard, Image 1, Image 2, Image 3 and Image 4 by pressing the IMAGE Standard button on the remote control. Real Cinema IMAGE button...

  • Page 34: Image Adjustment

    Computer Input Image Adjustment Press the MENU button to display the On-Screen Image adjust Menu Menu. Use the Point buttons to select Image ▲▼ adjust and then press the Point ► or the SELECT button. Use the Point buttons to select the desired item ▲▼...

  • Page 35: Screen Size Adjustment

    Computer Input Store To store the adjusted data, select Store and press the Point ► button or the SELECT button. Use the Point buttons ▲▼ to select one from Image 1 to 4 and press the SELECT button. A confirmation box appears and then select yes. Stored data can be called up by selecting an Image (1–4) in the Image Mode Selection on page 33.
  • Page 36 Computer Input Custom adj . Adjust the screen scale and position manually with this function. Press the Point ► button at Custom and the Custom is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust. Scale H/V ..Adjust the Horizontal/Vertical screen scale.
  • Page 37 Computer Input Keystone This function is used to adjust keystone distortion of the Keystone projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Keystone To correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.23).

  • Page 38: Video Input

    Video Input Input Source Selection (Video, S-video) Direct Operation Top Control Computer 1(RGB) / Choose Video or S-video by pressing the INPUT button on (Component) / (Scart) the top control, or the VIDEO button or the S-VIDEO button on the remote control. Before using INPUT button, correct input source should be Computer 2 (PC digital) / selected through menu operation as described below.

  • Page 39: Input Source Selection (Component, Scart)

    Video Input Input Source Selection (Component, Scart) Direct Operation Choose Computer 1(Component) or Computer 1(Scart) by pressing the INPUT button on the top control or press the COMPUTER 1 or the COMPONENT button on the remote control. Before using INPUT button, correct input source should be selected through Menu operation as described below.

  • Page 40: Video System Selection

    Video Input Video System Selection AV System Menu (Video or S-video) Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Input and ▲▼ then press the Point or the SELECT button. ► Use the Point buttons to select Video, S-video ▲▼...

  • Page 41: Image Mode Selection

    Video Input Image Mode Selection IMAGE button Direct Operation Remote Control Dynamic Select the desired image mode among Dynamic, Standard, Real, Cinema, Blackboard (Green), Colorboard, Image Standard 1, Image 2, Image 3 and Image 4 by pressing the IMAGE button on the remote control. Real Menu Operation Cinema...

  • Page 42: Image Adjustment

    Video Input Image Adjustment Press the MENU button to display the On-Screen Image adjust Menu Menu. Use the Point buttons to select the Image ▲▼ adjust and then press the Point or the SELECT ► button. Use the Point buttons to select the desired item ▲▼...
  • Page 43 Video Input Sharpness Press the Point button to decrease the sharpness of the ◄ image; press the Point button to increase the sharpness ► of the image (from 0 to 15). Gamma Use the Point buttons to adjust the gamma value to ◄►...

  • Page 44: Screen Size Adjustment

    Video Input Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Screen Menu Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Screen and ▲▼...
  • Page 45 Video Input Keystone This function is used to adjust keystone distortion of the Keystone projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Keystone To correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.23).

  • Page 46: Setting

    Setting Setting This projector has a Setting menu that allows you to set up Setting Menu the other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point buttons to select the ▲▼ Setting and press the Point or the SELECT button ►...
  • Page 47 Setting Auto setup Auto setup This function enables Input search, Auto Keystone correction and Auto PC adjustment by pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. Settings for those functions can be altered as follows: Input search This function detects the input signal automatically.
  • Page 48 Setting Background Select the background screen when no input signal is detected. Press the Point buttons to switch between ▲▼ each option. Blue . . . Project a blue background User . . . Project an image captured in the Logo setting. Black .
  • Page 49 Setting Capture This function enables you to capture an image being Capture projected to use it for a starting-up display or interval of presentations. Select Capture and press the SELECT button. A confirmation box appears and select yes to capture the projected image.
  • Page 50 Setting Enter a Logo PIN code Enter a Logo PIN code Use the Point buttons to enter a number. Press the ▲▼ Point button to fix the number and move the red frame ► pointer to the next box. The number changes to “ ”.
  • Page 51 Setting Power management Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Time left before Lamp is off. Select one of the following options: Ready ....
  • Page 52 Setting Standby mode This function is available when operating the projector via X: disabled O: enabled network. Eco .... Select Eco when you do not use the projector Serial command via network. The projector’s network function Network Monitor Out will stop when turning off the projector. Audio Out Network ..
  • Page 53 Setting Closed Caption Closed caption Closed caption is a function that displays the audio portion of a TV program as text on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4.
  • Page 54 Setting Lamp life control Lamp control Lamp control This function allows you to change brightness of the screen. Auto ..Brightness according to the input signal. Normal ..Normal brightness Eco 1 ..70%-80% of the normal brightness. Eco 2 ..50% of the normal brightness. Lamp life control Select the lamp operation when the total lighting time of a lamp exceeds the recommended total hours of use.
  • Page 55 Setting Key lock Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock This function locks the top control and remote control buttons to prevent operation by unauthorized persons.
  • Page 56 Setting Enter a PIN code Enter a PIN code Use the Point buttons to enter a number. Press the ▲▼ Point button to fix the number and move the red frame ► pointer to the next box. The number changes to “ ”.
  • Page 57 Setting Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector. Off....Normal speed. Set this function to Off when using the projector in non-high altitude environment.
  • Page 58 Setting Total power savings Total power savings This function displays the saved amount of power and the exhausted CO2 of the projector. Use the Point ▲▼ buttons to select Total power savings and then press the Point ► or the SELECT button to access the submenu items. Total power savings..Show the total accumulated power savings of the projector and display the total amount of CO2 exhausted from the projector.

  • Page 59: Information

    Information Input Source Information Display The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. Direct Operation The information menu changes each time you press the Remote Control INFO. button on the remote controller as follows. page 1/2 ...

  • Page 60: Maintenance And Cleaning

    Maintenance and Cleaning wARNING indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the wARNING Top Control indicator is blinking red .

  • Page 61: Replacing The Filters

    Maintenance and Cleaning Replacing the Filters Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, replace the filters immediately.

  • Page 62: Attaching The Lens Cap

    Maintenance and Cleaning Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, replace the lens cap. Attach the lens cap according to the following procedures. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place.

  • Page 63: Lamp Replacement

    Maintenance and Cleaning Lamp Replacement When the projection lamp of the projector reaches its end Top Control of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the LAMP REPLACE lamp with a new one promptly. The timing when the LAMP indicator REPLACE indicator should light is depending on the lamp mode.

  • Page 64: Lamp Handling Precautions

    ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Model No . of your projector : LC-XB250 ● Replacement Lamp Type No . : POA-LMP148 ●...

  • Page 65: Appendix

    Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 14-16. – Make sure all equipment is connected to AC outlet and the power is turned on. –...
  • Page 66 Appendix No image . – Check the connection between your computer or video equipment and the projector. See pages 14-16. – See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output when connecting to a projector.
  • Page 67 Appendix The image is distorted or runs off . – Check PC adjust menu or Screen menu and adjust them. See pages 31-32, 35-36. PIN code dialog box appears – PIN code lock is being set. Enter a PIN code (the “1234” or numbers at start-up .

  • Page 68: Menu Tree

    Appendix Menu Tree Computer Input/Video Input Input Computer 1 Component RGB (Scart) Computer 2 RGB (PC digital) RGB(AV HDCP) RGB (Analog) Video S-video Sound Volume 0–63 Mute On/Off On/Off MIC gain 0-63 Standby MIC OUT On/Off Computer Input System Mode 1 Mode 2 Image Adjust Contrast...
  • Page 69 Appendix Video Input Computer Input/Video Input Setting System Auto Language 21 languages provided. 1080i Menu position 1035i Auto setup Input search Off/On1/On2 720p Auto PC adj. 575p On/Off 480p Auto keystone 575i Auto 480i Manual System Auto Background Blue/User/Black SECAM Display On/Countdown off/Off NTSC...

  • Page 70: Indicators And Projector Condition

    Appendix Indicators and Projector Condition Check the indicators for projector condition. Indicators Projector Condition LAMP POWER WARNING REPLACE red/green yellow The projector is off. (The AC power cord is unplugged.) The projector is in stand-by mode. Press the ON/STAND-BY button ...

  • Page 71: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN H-Freq . V-Freq .
  • Page 72 Appendix When the input signal is digital from DVI terminal, refer to the chart below. ON-SCREEN H-Freq . V-Freq . ON-SCREEN H-Freq . V-Freq . RESOLUTION RESOLUTION DISPLAy (KHz) (Hz) DISPLAy (KHz) (Hz) D-VGA 640 x 480 31.47 59.94 D-SXGA1 1280 x 1024 63.98 60.02...

  • Page 73: Technical Specifications

    Appendix Technical Specifications Mechanical Information Projector Type Multi-media Projector Dimensions (W x H x D) 13.78" x 3.44" x 10.02" (350.0 mm X 87.5 mm X 254.4 mm ) (Not including protrusions) Net Weight 7.50 lbs (3.4 kg) Feet Adjustment 0˚ to 12˚ Panel Resolution LCD Panel System 0.63"...

  • Page 74: Optional Parts

    Appendix Accessories Owner’s Manual (CD-ROM) Quick Reference Guide AC Power Cord Remote Control and Batteries VGA Cable Lens Cap with String PIN Code Label Soft Carrying Case Filter Cover for Ceiling Mount Network Application (CD-ROM) ● The specifications are subject to change without notice. ●...

  • Page 75: Pj Link Notice

    Appendix Pj Link Notice This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1. For PJ Link password, see the owner’s manual of “Network Set-up and Operation.”...

  • Page 76: Configurations Of Terminals

    Appendix Configurations of Terminals COMPUTER IN 1 /COMPONENT IN / MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) Red (R/Cr) Input/Output +5V Power/----- Green (G/Y) Input/Output Ground (Vert.sync.) Blue (B/Cb) Input/Output Ground/----- DDC Data /----- ----- Ground (Horiz.sync.) Horiz.

  • Page 77: Pin Code Number Memo

    Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No . Factory default set No: 1 2 3 4* Logo PIN Code Lock No .

  • Page 78: Dimensions

    Appendix Dimensions Unit: mm(inch) Screw Holes for Ceiling Mount Screw: M4 Depth: 12.0(0.472) 216.5 (8.52) 208.0 (8.19) 86.0 (3.38) 46.0 (1.81) 64.0 (2.52) 40.7 (1.60) 57.9 (2.28) 350 (13.78) 176.3 (6.94) 79.7 (3.14) 42.1 (1.66) 47.0 (1.85) 60.0 (2.36) 74.1 (2.92) 256.0 (10.08) 81.1 (3.19) 209.0 (8.23)
  • Page 79 U.S.A. Canada EIKI International, Inc. EIKI CANADA - Eiki International, Inc. 30251 Esperanza P.O. Box 156, 310 First St. - Unit 2, Rancho Santa Margarita Midland, ON, L4R 4K8, Canada CA 92688-2132 Tel : 800-563-3454 (705)-527-4084 U.S.A. Fax : 800-567-4069 (705)-527-4087...
