Alliance Laundry Systems UW50P-4 Installation & Maintenance

Alliance Laundry Systems UW50P-4 Installation & Maintenance

Pocket hardmount we-6 control
Hide thumbs Also See for UW50P-4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
Washer-Extractors
Pocket Hardmount
WE-6 Control
UW50P-4
P031I
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. F232158
www.comlaundry.com
September 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UW50P-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems UW50P-4

Summary of Contents for Alliance Laundry Systems UW50P-4

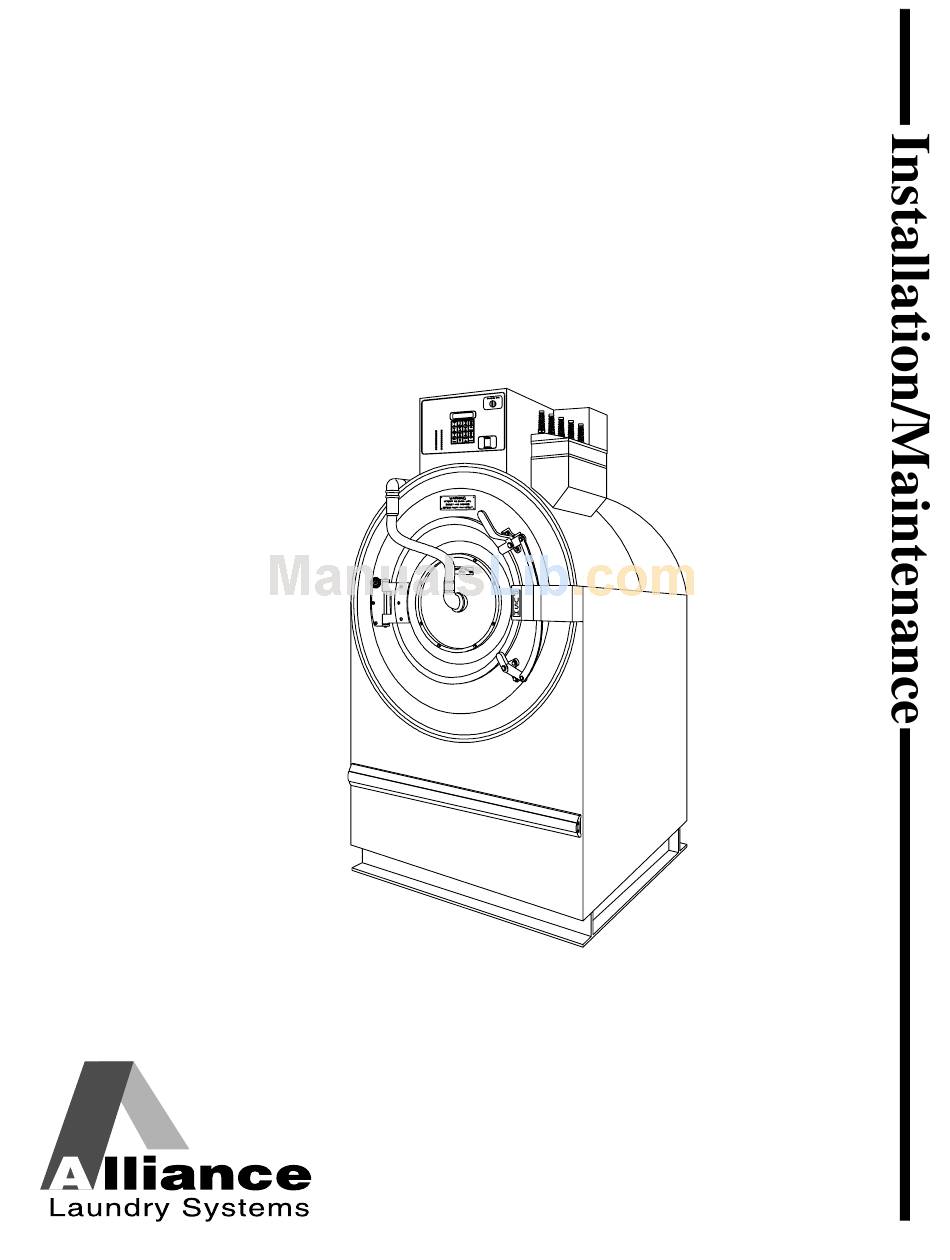

  • Page 1 Washer-Extractors Pocket Hardmount WE-6 Control UW50P-4 P031I Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. F232158 www.comlaundry.com September 2002...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction... Nameplate Location...
  • Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232158...

  • Page 5: Nameplate Location

    Nameplate F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction Replacement Parts If literature or replacement parts are required, contact the source from which the machine was purchased or...
  • Page 6 Notes F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 7: Safety Information

    F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information Important Safety Instructions To reduce the risk of fire, electric shock, serious injury or death to persons when...
  • Page 8 If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 19. Replace worn power cords and/or loose plugs. 20. Be sure water connections have a shut-off valve and that fill hose connections are tight.

  • Page 9: Installation

    Supply compartments shall be filled at beginning of each load. Supplies shall not be flushed into Injection* washer until the proper water level has been reached. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation...
  • Page 10 Size Maximum Pressure Drain Connect I.D. Size Shipping Volume Table 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT UW50 36 in. (915 mm) 40 in. (1015 mm) 63 in. (1600 mm) 1350 lbs. (612 kg) 1410 lbs.
  • Page 11 1 in. (1600 mm) (25 mm) 28.5 in. (725 mm) 35.62 in. 36 in. (905 mm) (915 mm) 56 in. (1420 mm) 15.5 in. (395 mm) PHM517N F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 12: Machine Foundation

    UW50-4 1575±2220 7.0±9.9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT A base designed to elevate the UW50 to a comfortable and more accessible height for loading and unloading laundry may be used. Care must be exercised in the design of such a base due to the force exerted by the machine during extract (222 Gs).

  • Page 13: Mechanical Installation

    Refer to Figure 2. Be sure the bolt threads also extend 2 inches above the floor. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT TYPICAL METHOD OF MOUNTING PHM178N Installation...
  • Page 14 31.62 in. (51 mm) (803 mm) 35.62 in. (905 mm) MOUNTING BOLT LAYOUT Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 0.75 in. (19 mm) 4.81 in. (122 mm) 9 in. (229 mm) 36 in.

  • Page 15: Drain Connection

    NOTE: Make sure to retighten the anchor bolts after a few days of operation. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Drain Connection Providing an adequate drain arrangement and capacity is essential. Ideally, the machine should dump through a 3 inch pipe directly into a sump or floor drain.
  • Page 16 At the rear of the machine, on a centerline 15-1/2 inches from the floor, is a 3 inch PVC pipe connection for the drain. Drainage is by gravity. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 21 in. (530 mm)

  • Page 17: Water Connection

    3/4 in. Faucet Lines Figure 9 F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Each of the hoses should have a screen filter installed to keep rust and other foreign particles out of the solenoid valves. These connections should be supplied by a hot and a cold water line at least 3/4 inch size for each.

  • Page 18: Electrical Installation

    National Electric Code or other applicable codes. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Use wire sizes indicated in the Electrical Specifications chart for runs up to 50 feet (15 m). Use next larger size for runs of 50 to 100 feet (15 to 30 m).

  • Page 19: Electrical Connection Data

    The machine must be connected to the proper electrical supply shown on the identification plate attached to the side of the control module. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Max. Amps TO CONTROL MODULE Wire Size...

  • Page 20: Grounding

    2. Open manual water shut-off valves to the machine. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3. Turn on electric power. 4. Select Cycle 01 by pressing “0” and “1” on the keyboard and press START.

  • Page 21: Maintenance

    Before performing any maintenance, make sure that the main power to the machine is switched off and locked out. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Maintenance Monthly 1. Check V-belt for wear, proper tension and alignment.

  • Page 22: Care And Maintenance Of Stainless Steel

    © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5. Salty or acidic solutions should not be allowed to evaporate and dry on stainless steel. They may cause corrosion.

  • Page 23: Daily Preventive Maintenance Checklist

    NOTE: Unload the washer-extractor promptly after each completed cycle to prevent moisture buildup. NOTE: Leave loading door open after each completed cycle to allow moisture to evaporate. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Week Of Observe All Safety Warnings! daily maintenance procedures.

  • Page 24: Weekly Preventive Maintenance Checklist

    Start an unloaded cycle to fill the washer-extractor. b. Verify that door and door gasket do not leak. c. Verify that the drain valve is operating. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Checks Observe All Safety Warnings! weekly maintenance procedures.

  • Page 25: Monthly Preventive Maintenance Checklist

    9. Clean interior of washer-extractor, both basket and shell, by wiping with a water-soaked sponge or cloth. 10. Use compressed air to clean moisture and dust from all electrical components. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Checks Observe All Safety Warnings! monthly maintenance procedures.

  • Page 26: Quarterly Preventive Maintenance Checklist

    3. Verify that the drain motor shield is in place and secure. 4. Check all painted surfaces for bare metal. Repair, if necessary. 5. Clean steam filter, if applicable. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Checks Observe All Safety Warnings! quarterly maintenance procedures.

  • Page 27: Removal From Service

    Disconnect steam hoses from machine. F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5. Remove the machine from its foundation pad. a. Keep all panels in place to provide stability when moving the machine.
  • Page 28 Notes F232158 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
