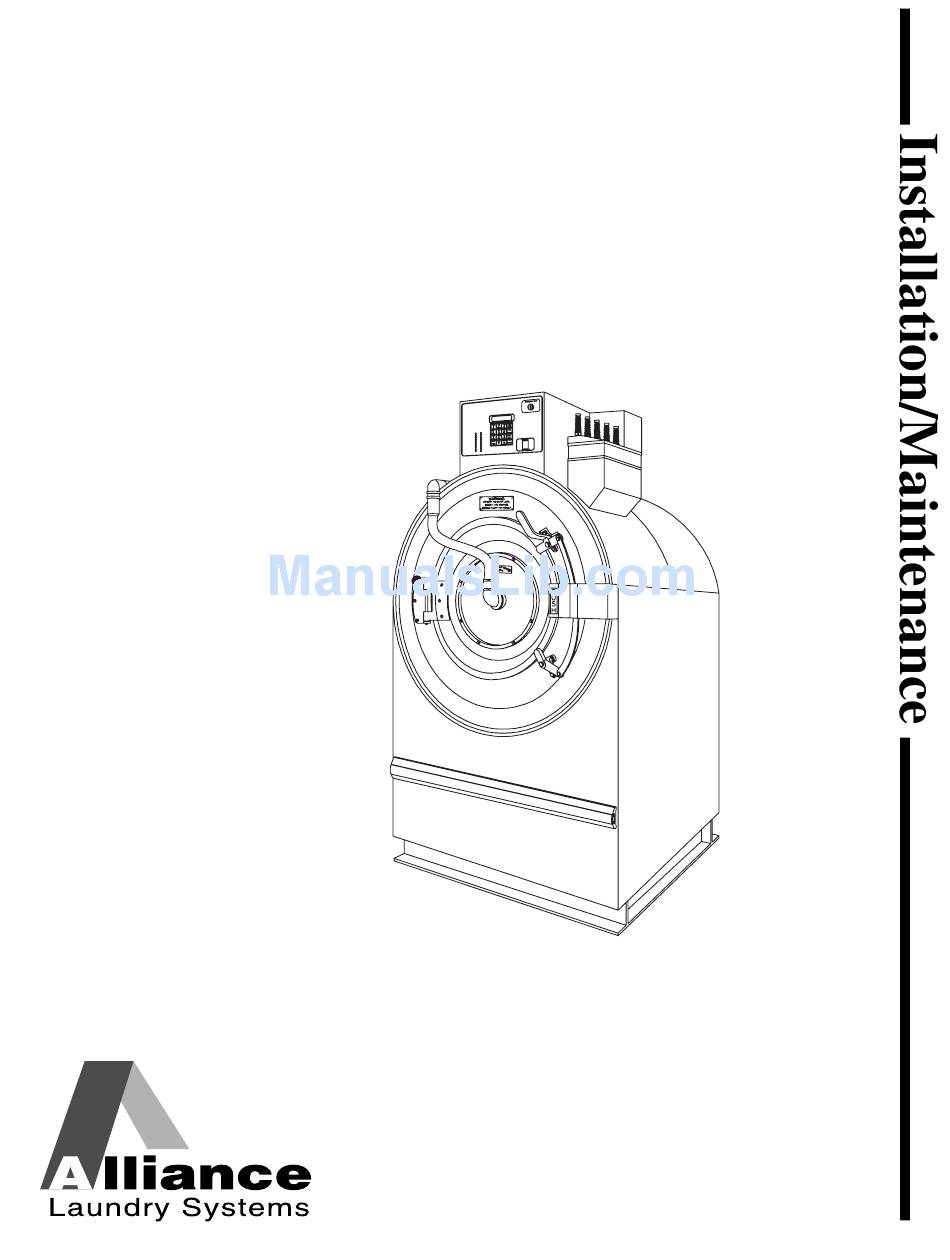

Washer-Extractors
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Pocket Hardmount
www.comlaundry.com
3-Speed
UW35P3
UW35S3
UW60P3
UW60S3
P031I
Part No. F232086R3
January 2007
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alliance Laundry Systems UW35P3
Summary of Contents for Alliance Laundry Systems UW35P3
- Page 1 Washer-Extractors Pocket Hardmount 3-Speed UW35P3 UW35S3 UW60P3 UW60S3 Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. P031I Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. F232086R3 www.comlaundry.com...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232086...
-
Page 5: Safety Information
8. Do not reach into the washer if the wash drum is moving. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 6 19. Keep washer in good condition. Bumping or dropping the washer can damage safety features. If this occurs, have washer checked by a qualified service person. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 7 SW020 CAUTION Be careful around the open door, particularly when loading from a level below the door. Impact with door edges can cause personal injury. SW025 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 8: Key To Symbols
Moving mechanical machine. Guards should always be in place when the parts can crush and/or sever body parts. machine is in operation. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 9: Safety Decals
If questions regarding safety arise, contact the manufacturer immediately. Use manufacturer-authorized spare parts to avoid safety hazards. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 10: Operator Safety
Operating the machine with severe out-of-balance loads could result Chemicals. Keep stainless steel surfaces free of ● in personal injury and serious equipment chemical residues. damage. SW039 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 11: Machine Location
Always disconnect power and water supplies before a service technician performs any service procedure. Where applicable, steam and/or compressed air supplies should also be disconnected before service is performed. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 12 Notes F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 13: Installation
A hemispherically-shaped spray nozzle inside the door glass produces a fan-action water spray which disperses rinse water throughout the load. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 14: Model Identification
A record of each machine is on file with the manufacturer. The serial number decal is located at the rear of the machine. Refer to Figure 1. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 15: Model Number Familiarization Guide
Washer-Extractor Speed Capabilities 3 = 3 Speeds Electrical Characteristics See Electrical Specifications Chart in this section. Design Series 0001 Option Identification (varies from machine to machine) P030I Figure 2 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 16: Specifications And Dimensions
Average water consumption per cycle, gal (l) 45 (170) 61 (231) 24 (91) 29 (110) COLD Average hot water used per hour, gal (l) 78 (295) 102 (386) F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 17 Electrical heating element size, kW Time required to raise bath temperature 10°F, min 2.4 (3.6) 2.4 (3.7) (10°C, min) 2.7 (4.1) 2.7 (4.1) HIGH 3.1 (4.7) 3.0 (4.6) F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 18: Machine Dimensions
1409 64-1/2 1638 30-1/2 7-5/8 15-1/2 43-5/8 1108 1397 Overhang dimensions for the optional starch dispenser are as follows: UW35, 3-7/8 inches; UW60, 1-3/4 inches. Table 1 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 19 (Overall) (Overall) PHM667N PHM667N Supply Valve Box Steam Connection (optional) Supply Dispenser Water Inlet Valves Door Handle Power Input Area (inside) Spray Rinse Nozzle Drain Figure 3 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 20: Machine Foundation
This base must be adequately tied in to the existing floor. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 21: Mounting Bolt Hole Locations
26 1/8 in. 2 in. 2 in. (664 mm) (51 mm) (51 mm) 30 1/8 in. (765 mm) UW35 PHM659N Figure 4 IMPORTANT: Drawing is not to scale. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 22 2 in. 2 in. 31 5/8 in. (51 mm) (51 mm) (803 mm) 35 5/8 in. (905 mm) UW60 PHM660N Figure 5 IMPORTANT: Drawing is not to scale. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 23: Mechanical Installation
Fill with 6 inches of reinforced concrete. Embed the mounting bolts or base frame as the concrete is Figure 6 poured. Ensure that the bolt threads extend 2 inches above floor level. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 24 NOTE: Check and retighten the locknuts after five Typical to ten days of operation and every month thereafter. 30 1/8 in. (765 mm) UW35 PHM570N Figure 8 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 25: Drain Connection Requirements
IMPORTANT: The top of the vent must be 1 foot Rear of Machine (30.48 cm) lower than the bottom of the dispenser. Drain Pipe Steel Grate Drain Trough Strainer Waste Line Figure 11 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 26: Water Connection
Pressure of 30 – 85 psi (2 – 5.7 bar) provides best performance. Although the washer-extractor will function properly at lower pressures, increased fill times will occur. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 27: Electrical Installation
The machine must be connected to the Water Supply Faucets proper electrical supply shown on the identification plate attached to the side of the control module. Figure 12 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 28 L3. See Figure 13. (L3) (L1) (L2) Black Blue PHM671N PHM671N Grounding Lug: Connect to proven earth ground Power Input Block Figure 14 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 29 550-575 Not available in this voltage. 208-240 3x30 3x10 380-415 3x10 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. Table 7 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 30: Steam Requirements (Steam Heat Option Only)
Recommended pressure, psi (bar) 30 – 80 (2.0 – 5.4) Maximum pressure, psi (bar) 80 (5.4) Table 8 NOTE: Failure to install the supplied steam filter may void the warranty. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 31: Chemical Injection Supply System
Ensure an eye-rinse facility and an emergency shower are within easy reach. Check at regular intervals for chemical leaks. SW016 PHM672N PHM672N Injection Point PVC Pipe Chemical Dispenser Pump Outlet Figure 15 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 32: Connecting External Liquid Supplies To The Washer-Extractor
Base Figure 16 Chemical Injection Supply System Number of dry supply compartments Number of liquid supply connections Liquid supply connection size, in (mm) 5/8 (15.9) Table 9 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 33 Installation PHM674N Strain Relief for Liquid Chemical Supply Lines Dry Supply Insert Supply Dispenser Lid Four Way Water Valve Dry Supply Cups Supply Dispenser Figure 17 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 34 5” models provide 200-240 VAC fused at 500 mA. SUPPLY 4 Any injection system pump which requires 110VAC must be powered by a separate external power SUPPLY 5 source. P043I Figure 18 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 35: Control Function Test
Attempt to open the door while the cycle is in the mains contactor and the motor. progress. The door should not open. If the door lock and interlock are not functioning properly, call a service technician. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 36 Notes F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 37: Maintenance
NOTE: Unload the washer-extractor promptly after each completed cycle to prevent moisture buildup. Leave loading door open at the end of each completed cycle to allow moisture to evaporate. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 38: Weekly
Figure 19.) If water does not leak out during the prewash segment, drain valve is closed and functioning properly. PHM675N PHM675N Bearing Lubrication Decal Figure 19 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 39 ● change belt span length. The UW 3-speed 7.125 4.75 belt tension should be set according to the 5.25 data listed in the table below. Table 11 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 40 10. Use compressed air to ensure that all electrical components are free of moisture and dust. PHM676N PHM676N Deflection Span Length Figure 20 PHM677N Drive Motor Drive Pulley Belt Straightedge Driven Pulley Figure 21 F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 41: Quarterly
5. Clean steam filter, where applicable. a. Turn off steam supply and allow time for the valve to cool. b. Unscrew nut. c. Remove element and clean. d. Replace element and nut. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 42: Care Of Stainless Steel
Never use ordinary steel wool or steel brushes on chemicals into the washer-extractor. See the stainless steel. Use stainless steel wool or soft Figure 15 in the Installation section. non-metal bristle brushes. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 43: Daily Preventive Maintenance Checklist
NOTE: Unload the washer-extractor promptly after each completed cycle to prevent moisture buildup. NOTE: Leave loading door open after each completed cycle to allow moisture to evaporate. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 44: Weekly Preventive Maintenance Checklist
Start an unloaded cycle to fill the washer-extractor. b. Verify that door and door gasket do not leak. c. Verify that the drain valve is operating. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 45: Monthly Preventive Maintenance Checklist
8. Clean interior of washer-extractor, both basket and shell, by wiping with a water-soaked sponge or cloth. 9. Use compressed air to clean moisture and dust from all electrical components. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 46: Quarterly Preventive Maintenance Checklist
3. Verify that the drain motor shield is in place and secure. 4. Check all painted surfaces for bare metal. Repair, if necessary. 5. Clean steam filter, if applicable. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 47: Removal From Service
Allow time for residual water in the machine to drain. Then disconnect drain hose from the machine. F232086 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
