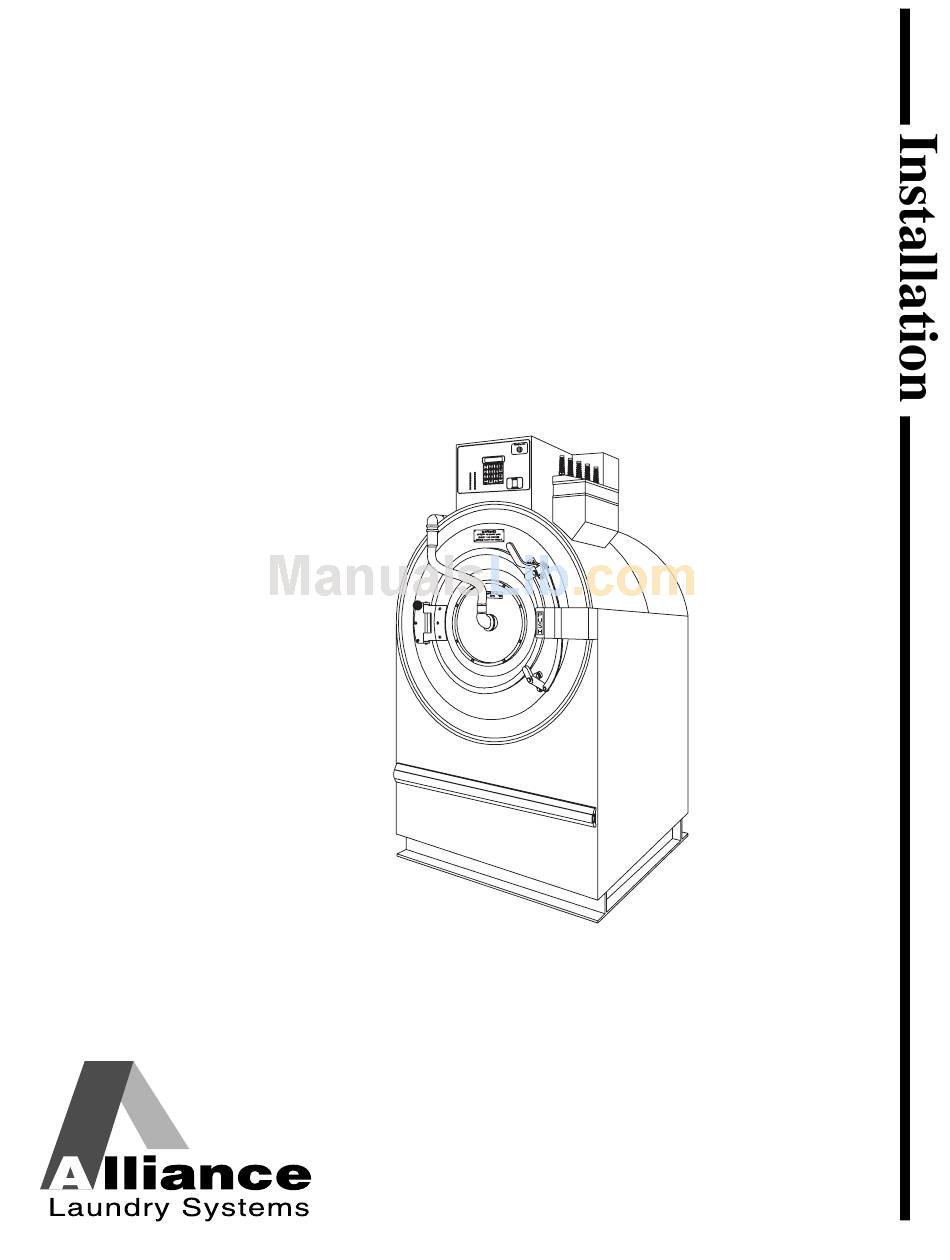

Washer-Extractors
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
UW Pocket Hardmount
www.comlaundry.com
2 Speed
P029I
P031I
Part No. F232085R6
January 2007
