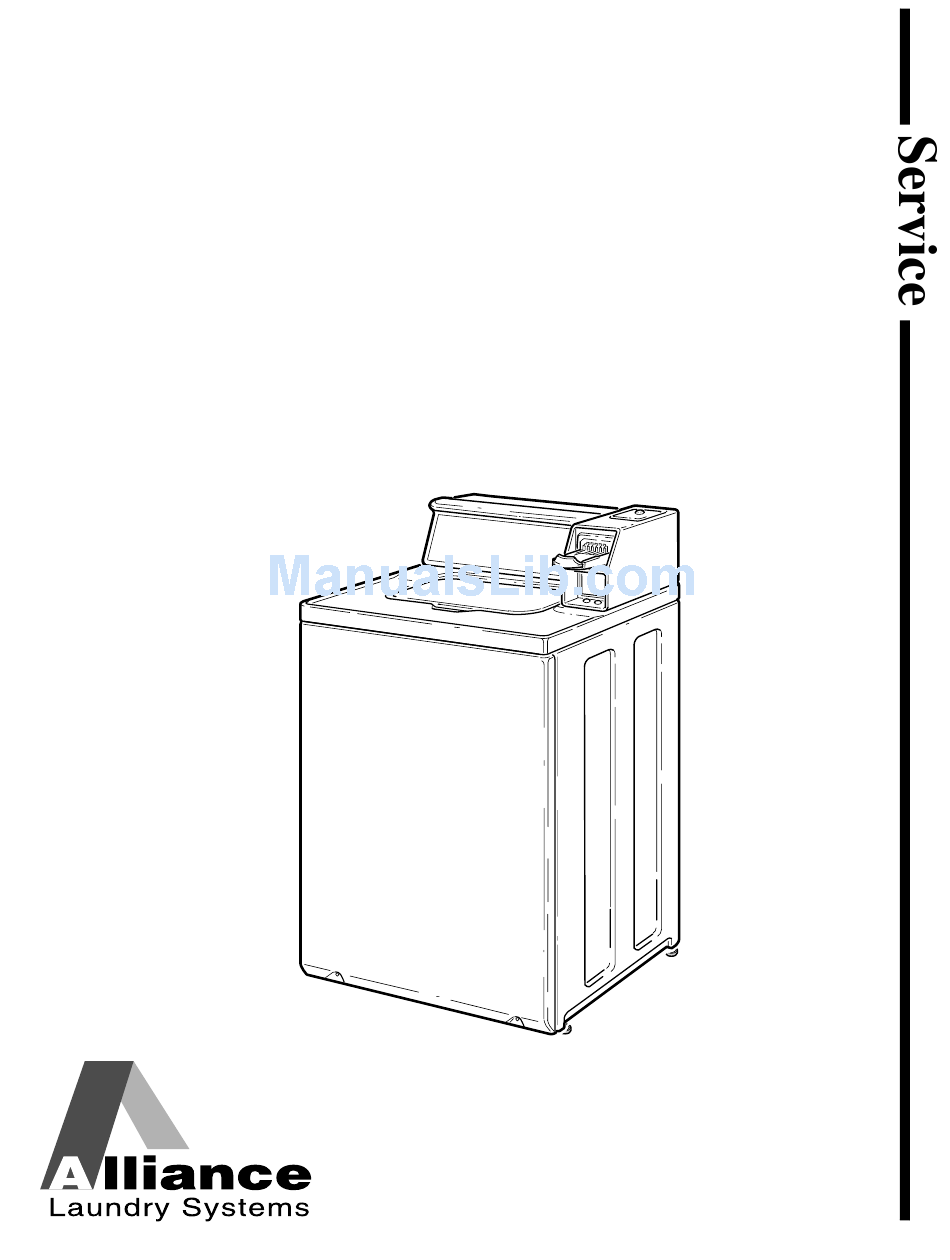

  • Page 1 Commercial Automatic Washer Metered and Nonmetered Refer to Page 6 for Model Numbers H002C Part No. 39201R2 www.comlaundry.com July 2001...

  • Page 2: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 3 Models HWT620*C, SWT620*C, SWT621*C, SWT620*D and SWT621*D .........99 Models SWT720*A and SWT721*A ....100 Models SWTA21*M, SWTB20*M, SWTB21*J, SWTB21*M, SWTC20*M, SWTC21*M, SWTF20*M, SWTF21*M, SWTH21*J, SWTH21*M and SWTJ21*M ......101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 4: Section 1 - Safety Information

    • Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the product is properly grounded and to reduce the risk of fire, electric shock, serious injury or death. W006R1 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 5: Locating An Authorized Servicer

    Locating an Authorized Servicer Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs. Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized technician and using authorized factory parts.

  • Page 6: Section 2 - Introduction

    When calling or writing about your product, be sure to mention model and serial numbers. Model and serial numbers are located on nameplate(s) as shown. NAMEPLATE W363PE3A 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 7: Model Identification

    * Add Letter To Designate Color. L – Almond W – White Key: 1 = 1 Speed Motor, 2 = 2 Speed Motor, P = Porcelain Washtub, S = Stanless Steel Washtub © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 8 * Add Letter To Designate Color. L – Almond W – White Key: 1 = 1 Speed Motor, 2 = 2 Speed Motor, P = Porcelain Washtub, S = Stanless Steel Washtub 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 9: How Your Washer Works

    The pressure switch then causes the wash fill to stop © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 10 This reduces the belt to pulley contact and allows slipping between the belt and pulley. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 11: Section 3 - Troubleshooting

    • Refer to appropriate wiring diagram. 3. NO WARM WATER POSSIBLE CAUSE TO CORRECT No hot water. • Refer to Paragraph 1. No cold water. • Refer to Paragraph 2. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 12: Water Fill Does Not Stop At Proper Level

    • Timer is designed to pause when going from spin into rinse to allow the washtub to stop spinning before filling, make sure that timer has advanced into fill portion of rinse cycle. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 13: Motor Does Not Run

    • Refer to Paragraph 9. Bind in pump. • Replace pump. Loading door is open or door switch is inoperative. • Close door or test switch and replace if inoperative. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 14: Constant Agitation

    Check that all these components are able to move freely. will not turn. Correct binding component. Incorrect voltage. Contact local utility company, or have a qualified electrician check power supply. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 15: Slow Spin Or No Spin

    Excessive wear on brake pads, or missing brake Replace brake pads and brake assembly. pads. Shorted or incorrect wiring. Refer to appropriate wiring diagram. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 16: Washer Stops In Cycle; Quits After A Couple Loads; Is Intermittent

    • Remove washer front panel and install drain hose into cabinet. hose retainer clip in back of cabinet. Inoperative water pump. • Replace pump. Obstruction in outer tub outlet hose. • Remove obstruction. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 17: Excessive Vibration

    • Replace gasket. Obstruction in drain causing water to come over top • Remove obstruction. of outer tub cover. Tub-to-pump hose leaking at clamp. • Tighten clamp. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 18: Section 4 - Grounding

    W011GE3A Figure 1 18. POWER CORD TO CONTROL HOOD, CONTROL HOOD TO THE CONTROL PANEL FRAME Refer to Figure 2 GROUND WIRES GROUND W489SE3A WIRES Figure 2 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 19: Control Hood Wire Harness To Top Left Rear Corner Gusset Of Cabinet

    WIRE CORNER GUSSET GROUND SCREW GROUND WIRES W490SE3A Figure 3 20. WIRE HARNESS TO MOTOR Refer to Figure 4 GROUND WIRE HARNESS CONNECTION BLOCK W329SE3C Figure 4 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 20: Section 5 - Service Procedures

    NOTE: Refer to appropriate wiring diagram when Figure 5 reconnecting wire harnesses, ground and switch leads. PRESSURE DISCONNECT SWITCH BLOCKS PRESSURE DISCONNECT HOSE BLOCKS GROUND WIRES GROUND WIRES INDICATOR W489SE3B LIGHT Figure 6 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 21 IMPORTANT: When installing pressure switch, blow air into hose before connecting hose to switch to remove any moisture that may have accumulated in hose. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 22 (2) Press in on locking tabs and unplug harness will not be issued. disconnect blocks from backside of ELECTRONIC CONTROL CONTROL ATTACHING SCREWS (2 per side) W493SE1A Figure 8 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 23: Timer Assembly

    SCREW 22. TIMER ASSEMBLY a. TIMER REMOVAL (Metered Models): NOTE: DO NOT attempt to repair timer. (1) Unlock and remove meter case service W334SE1A door. Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 24 Refer to Figure 11. CLUTCH W238SE1A LOCKING TIMER TABS Figure 11 GROUND WIRE GROUND WIRE TERMINAL TIMER BRACKET ATTACHING SCREWS TERMINAL BLOCK PLUG W237SE1A Figure 10 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 25 (3) Pull timer and plate out of timer case as far as wires will permit. NOTE: Disconnect ground wire from ground terminal on timer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 26 DOOR SWITCH RATCHET METER NO. 310P4 CASE 1/4" RATCHET LOCKING EXTENSION TOOL 7/16" SOCKET LOCKNUT SWITCH BRACKET W408SE1B FRONT OF METER Figure 13 CASE W485SE1A Figure 14 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 27 Refer to Figure 16. disconnect plugs. NOTE: Multiplier is held inside meter case by two Velcro strips. SERVICE DOOR SWITCH BRACKET METER CASE W408SE3A Figure 15 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 28 Refer to Figure 17. BACK END OF COIN DROP COIN DROP FRONT FACE PLATE COIN DRAWER HOUSING W410SE3A Figure 17 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 29 Figure 18. meter case. Refer to Figure 18. BACK END OF COIN DROP COIN DROP FRONT FACE PLATE METER CASE COIN DRAWER HOUSING COIN-RETURN W411SE3A STOPS Figure 18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 30 Figure 19. opening. Refer to Figure 19. COIN DROP COIN DROP FRONT FACE PLATE SERVICE DOOR OPENING METER CASE W412SE3A Figure 19 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 31 Figure 22. (4) Grasp top of coin drop front face plate between the two drops, as shown in Figure 21. COIN-RETURN STOPS W415SE1A Figure 22 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 32 (9) Reconnect wires by referring to the wiring diagram located inside the control hood. (10) Reinstall service door switch and wire harness into meter case bracket. Refer to Figure 15. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 33: Meter Or Timer Case Assembly

    (13) Remove carriage bolts and locknuts holding meter case to cabinet top. (14) Carefully remove meter case and gasket from cabinet top. TIMER CASE ATTACHING HARDWARE W240SE1A Figure 25 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 34: Drain Hose Elbow

    NOTE: Reverse procedures when installing loading door. LOADING DOOR HINGE ATTACHING SCREWS ELBOW ATTACHING SCREWS HOSE DRAIN CLAMP W242SE1A HOSE Figure 26 RIGHT LEFT HINGE HINGE W287SE1A Figure 27 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 35 Section 5 Service Procedures Procedure One DOOR FRONT W288SE3A Procedure Two DOOR FRONT W289SE3A Procedure Three DOOR FRONT W290SE3A Figure 28 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 36: Agitator

    Place tool over drive bell, making sure indent on jaws line up with wide slots on drive bell. Refer to Figure 31. AGITATOR W247SE1A Figure 29 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 37 No. 36765P, to inside sealing lips of seal. Refer i. Using an adjustable wrench, turn large nut on to Figure 34. tool COUNTERCLOCKWISE to pull drive bell from transmission output shaft. Refer to Figure 32. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 38 Place new drive bell seal onto hub and carefully W423SE1A push into position using large end of No. 293P4 Figure 36 Seal Tool. Refer to Figure 35. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 39 NOTE: Do not push agitator onto drive bell any further than necessary. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 40: Front Panel

    Remove brace from front panel by swinging one end toward bottom of front panel and remove brace. CABINET TOP HOLD DOWN SCREWS HOLD DOWN CLIP FRONT PANEL SCREWS W496SE3A Figure 37 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 41: Cabinet Top Assembly

    (5) Remove two cabinet top hold down screws. remove any moisture that may have accumulated in Refer to Figure 37. the hose. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 42 NOTE: Refer to appropriate wiring diagram when rewiring mixing valve solenoids. CORNER PRESSURE GUSSET HOSE DOOR SWITCH GROUND WIRE MIXING VALVE WIRE HARNESS DISCONNECT BLOCKS W497SE3B Figure 39 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 43: Motor And Mounting Bracket

    If idler spring is overstretched, washer operation will be affected. SWITCH ATTACHING SCREW MOTOR MOUNT LOCKING ATTACHING SCREWS BELT IDLER SPRING CONNECTION PUMP HOSES BLOCK MOTOR W476SE3C SWITCH Figure 40 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 44 PUMP EMBOSSES MOTOR SHAFT (Clean shaft and apply a thin film of lubricant, No. 03637P) PUMP EMBOSS CAPACITOR MOTOR ASSEMBLY W477SE3A Figure 41 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 45 Running a pump without water will ruin the seals. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 46 LEVER SCREW WASHER CAPACITOR CLAMP SHOULDER BOLT MOTOR MOUNT SCREW MOTOR MOUNT IDLER POST SHAFT WASHER BELT IDLER PULLEY RETAINER RING PUMP ASSEMBLY SCREW TLW1022P Figure 42 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 47: Motor Drive Pulley

    Lay motor assembly on its side. NOTE: To remove pulley, support motor shaft (to prevent bending shaft) and drive out pulley roll pin (through Serial No. 001113645). Refer to Figure 42. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 48: Idler Lever And Pulley

    Refer to Figure 43. motor mounting bracket. SWITCH SHIELD ATTACHING ATTACHING SCREW SCREW LOCKING MOTOR MOUNT ATTACHING SCREWS BELT IDLER SPRING CONNECTION PUMP BLOCK HOSES W476SE3B MOTOR SWITCH Figure 43 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 49: Mixing Valve Assembly

    Refer to Figure 44. NOTE: When installing mixing valve, tab on bottom flange must be placed in positioning hole in mounting bracket. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 50: Door Switch

    NOTE: Refer to appropriate wiring diagram when rewiring switch. g. Remove two screws holding switch to switch holder. Refer to Figure 45. h. Remove switch from switch holder. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 51: Washtub And Balance Ring

    (bending) loading door switch lever. FILLER HOSE HOSE CLAMP LOADING DOOR SWITCH LEVER OUTER TUB COVER HOLD DOWN W478SE3C TABS Figure 46 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 52 PRESS GASKET COVER INTO GROOVE USING GASKET YOUR FINGERS 273P4 TUB COVER GASKET TOOL HOLD DOWN TABS W479SE3A Figure 47 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 53 THIS AREA AND PULL OUT AND AWAY FROM TUB AND AT THE SAME TIME LIFT UP ON TUB COVER TO REMOVE COVER OFF TUB FLANGE OUTER TUB W480SE3A Figure 48 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 54 Then carefully push balance ring down into washtub until all pins snap into their respective holes. SLOTS WASHTUB SCREWS BALANCE RING W500SE3A PINS Figure 49 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 55: Hub And Seal Kit Assembly

    (6) With tub cover tilted at approximately 45 small chain may be used for additional support. degree angle, insert the positioning pin into Refer to Figure 38. notch on outer tub flange. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 56 Figure 32. as not to damage tub flange or porcelain. IMPORTANT: If large nut is turned clockwise when pulling drive bell, you will twist off quarter inch bolt. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 57 Carefully place new hub assembly on splined transmission tube. IMPORTANT: Firmly push hub assembly down against outer tub seal and hold in this position during the next three steps. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 58 30 seconds. holes in gasket. n. Secure washtub to hub assembly, using cap screws and gaskets from 27202P Screw and Gasket Kit (supplied in kit). 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 59: Outer Tub

    (bending) loading door assembly. switch lever. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 60 DO NOT reuse the old insert as hex nut may loosen during the washer operation. m. Remove hub from splines on transmission tube. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 61: Drive Pulley, Helix And Brake

    Refer to disengage from slots in cabinet top. Figure 53. f. METERED MODELS: (1) Unlock and remove meter case service door. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 62 PIVOT DOME BRAKE DRIVE ASSEMBLY PULLEY WELDMENT ASSEMBLY COUNTERWEIGHT TRANSMISSION ASSEMBLY LEG PLATE SCREW AND LOCKWASHER W447SE3B Figure 54 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 63 Refer to Figure 55. CAP SCREW WASHER HELIX DRIVE PULLEY COUNTERWEIGHT THICK WASHER THIN TRANSMISSION WASHER ASSEMBLY W448SE3B Figure 55 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 64 DOME DO NOT LUBRICATE SCREW WASHER (Thin) WASHER (Thick) DRIVE PULLEY APPLY NO. 03200P HELIX LUBRICANT HERE WASHER CAP SCREW FRICTION RING WASHER BASE W449SE3B Figure 56 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 65: Weldment And Bearing Assembly

    (1) Unlock and remove meter case service (4) Turn on electrical power to washer and start door. washer in the final spin. (2) Remove timer bracket cap screw. Refer to Figure 9. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 66 No. 265494P Silicone Lubricant to both sides of skirt. each brake pad where it will contact brake assembly. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 67: Transmission Assembly

    Using a rocking motion (back and forth) carefully lift agitator off drive bell. d. Remove two screws from bottom edge of front panel. Refer to Figure 37. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 68 One by one, disengage each of m. Remove hub from splines on transmission tube. the eight hold-down tabs from outer tub flange and remove cover. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 69 Grasp outer tub and lift complete tub module y. Lift transmission assembly out of upper assembly straight up and out of washer cabinet. bearing. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 70 90 to 130 inch-pounds (10.30 to 14.87 N-m). TRANSMISSION ASSEMBLY APPLY NO. 27604P ANTI-SEEZE COMPOUND TO THESE AREAS BOTH UPPER AND LOWER TRANSMISSION TUBES UPPER BEARING W450SE3C Figure 57 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 71 IMPORTANT: Transmissions produced after 5/95 washer holding drive pinion to input shaft. may be difficult to disassemble. Take extra care not to damage sealing surfaces of transmission case and cover. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 72 Figure 57. IMPORTANT: End of shaft with identification groove must be facing outward. Refer to Figure 58. This is the end that will mate with the helix. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 73 SCREW WASHER WASHER DRIVE PINION SHAFT (Input) REDUCTION GEAR IDENTIFICATION GROOVE SCREW (Place No. 305P4 Pin Tools in TRANSMISSION TRANSMISSION These Holes) COVER ASSEMBLY W334PE3A Figure 58 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 74: Upper Bearing Assembly

    Do not overtighten screws as this could cause stripping or porcelain damage. BALL BEARING CAP SCREW OUTER UPPER BEARING UPPER HOUSING BEARING HOUSING W453SE3A Figure 59 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 75: Friction Ring

    NOTE: Cabinet top is self supporting, however, a small chain may be used for additional support. Refer to Figure 38. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 76 IMPORTANT: When installing module springs, make sure spring hook is fully seated in hole in tub skirt. Refer to Figure 53. FRICTION RING WASHER BASE W454SE3B Figure 60 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 77 Section 5 Service Procedures PRESSURE FILLER HOSE HOSE HOSE CLAMP PRESSURE BULB W483SE3B COVER Figure 61 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 78: Section 6 - Adjustments

    If these locknuts are not tight, washer will not remain stationary during operation. LEVEL WASHER BASE LOCKNUT LEVELING RUBBER FOOT W484SE3A Figure 62 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 79: Pressure Switch

    Carefully reinstall the control panel. e. Reconnect the electrical power to the washer. f. Run the washer through a cycle and observe the water fill level. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 80: Section 7 - Motor Test Procedure

    9. “P” to Blue (2-speed motor) 3 Ohms Refer to Blue to White and Violet to White. (approximate) 10. “P” to Violet (2-speed motor) Closed Open low (6 pole) winding run switch. 39200 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 81: Section 8 - Cycle Sequence Charts

    PP = PERMANENT PRESS CYCLE W = WARM D = DELICATE CYCLE C = COLD X = INDICATOR LIGHT GLOWS N = NORMAL CYCLE TIMER NO. 28716 CYCLE SEQUENCE 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 82: Timer No. 31111P Cycle Sequence

    PP = PERMANENT PRESS CYCLE W = WARM D = DELICATE CYCLE C = COLD X = INDICATOR LIGHT GLOWS N = NORMAL CYCLE TIMER NO. 31111P CYCLE SEQUENCE © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 83: Timer No. 34601P Cycle Sequence

    PP = PERMANENT PRESS CYCLE W = WARM D = DELICATE CYCLE C = COLD X = INDICATOR LIGHT GLOWS N = NORMAL CYCLE TIMER NO. 34601P CYCLE SEQUENCE 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 84: Timer No. 34602 Cycle Sequence

    PP = PERMANENT PRESS CYCLE W = WARM D = DELICATE CYCLE C = COLD X = INDICATOR LIGHT GLOWS N = NORMAL CYCLE TIMER NO. 34602 CYCLE SEQUENCE © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 85: Section 9 - Internal Wiring Of Washer Motor Switch

    W003 WHITE BROWN BLUE YELLOW W310SE3C 4P M YELLOW OVERLOAD PROTECTOR AUX. W211SE3A MOTOR ASSEMBLY (1 SPEED MOTORS) 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 86 W003 WHITE BROWN YELLOW BLUE VIOLET W311SE3D 4P M YELLOW 6P M OVERLOAD PROTECTOR AUX. W224SE3A MOTOR ASSEMBLY (2 SPEED MOTORS) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 87: Section 10 - Wiring Diagrams

    W030 WIRING DIAGRAMS AND SCHEMATICS FOUND ON THE FOLLOWING PAGES ARE FOR MODELS COVERED IN THIS MANUAL. 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 88: Models Hwt020*A, Hwt020*C, Hwt020*M, Swt020*A, Swt020*M, Swt021*A, Swt021*M, Uwt021*A And Uwt021*M

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HWT020*A, HWT020*C, HWT020*M, SWT020*A, SWT020*M, SWT021*A, SWT021*M, UWT021*A AND UWT021*M © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 89: Models Hwt110*A, Hwt110*C, Hwt110*M, Swt110*A, Swt110*M, Swt111*A And Swt111*M

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HWT110*A, HWT110*C, HWT110*M, SWT110*A, SWT110*M, SWT111*A AND SWT111*M 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 90: Models Jwt110*A And Jwt110*M

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS JWT110*A AND JWT110*M © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 91: Models Hwt120*A, Hwt120*C, Hwt120*M, Swt120*A, Swt120*M, Swt121*A And Swt121*M

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HWT120*A, HWT120*C, HWT120*M, SWT120*A, SWT120*M, SWT121*A AND SWT121*M 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 92: Models Swt210*A And Swt210*M

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS SWT210*A AND SWT210*M © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 93: Models Swt220*A, Swt220*M, Swt221*A And Swt221*M

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS SWT220*A, SWT220*M, SWT221*A AND SWT221*M 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 94: Models Swt320*A, Swt320*M, Swt321*A And Swt321*M

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS SWT320*A, SWT320*M, SWT321*A AND SWT321*M © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 95: Models Swt420*A, Swt420*D, Swt420*M

    W030 MODELS SWT420*A, SWT420*D, SWT420*M, SWT421*A, SWT421*D, SWT421*M, SWT520*A, SWT520*M, SWT521*A, SWT521*M, SWT620*M, SWT621*M, SWT720*M AND SWT721*M 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 96: Model Swt620*A

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL SWT620*A © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...

  • Page 97: Models Hwt620*C, Swt620*C, Swt621*C, Swt620*D And Swt621*D

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HWT620*C, SWT620*C, SWT621*C, SWT620*D AND SWT621*D 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 98: Models Swt720*A And Swt721*A

    Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS SWT720*A AND SWT721*A © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39201...
  • Page 99 W030 MODELS SWTA21*M, SWTB20*M, SWTB21*J, SWTB21*M, SWTC20*M, SWTC21*M, SWTF20*M, SWTF21*M, SWTH21*J, SWTH21*M AND SWTJ21*M 39201 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
