Washer-Extractor
Pocket Hardmount

UniLinc Control

Refer to Page 8 for Model Identification
PHM1401C
UniLinc Control
PHM1401C
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. F8138701ENR6
www.alliancelaundry.com
November 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UW35TV and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems UW35TV

Summary of Contents for Alliance Laundry Systems UW35TV

  • Page 1: Unilinc Control

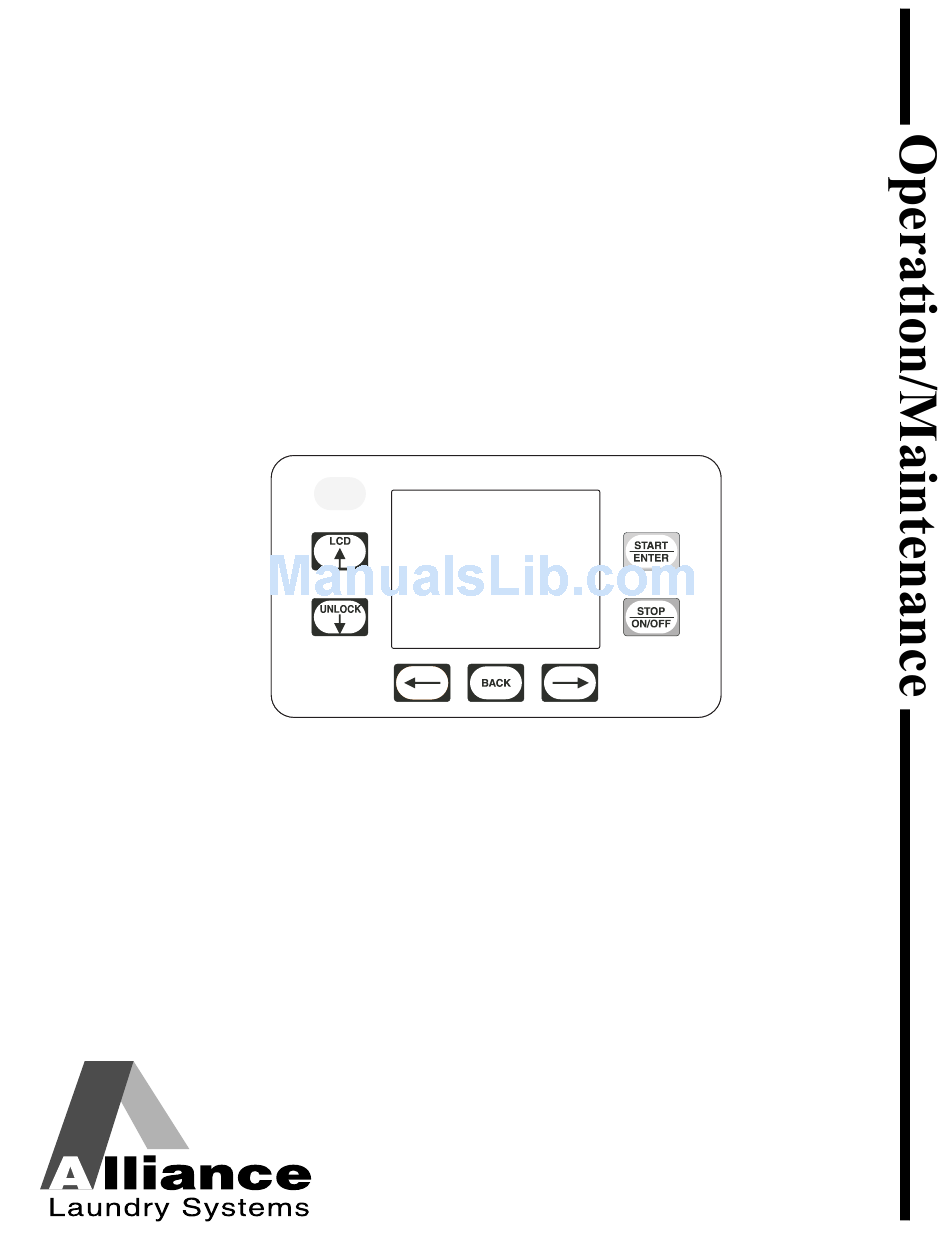

    Washer-Extractor Pocket Hardmount UniLinc Control Refer to Page 8 for Model Identification PHM1401C UniLinc Control PHM1401C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. F8138701ENR6 www.alliancelaundry.com November 2012...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. F8138701 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 4: Safety Information

    8. Do not reach into the washer if the wash drum is moving. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)
  • Page 5 22. Loading door MUST BE CLOSED any time the washer is to fill, tumble or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 6: Safety Decals

    SW020 CAUTION Be careful around the open door, particularly when loading from a level below the door. Impact with door edges can cause personal injury. SW025 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 7: Operator Safety

    Operating the machine with severe out-of-balance loads could result • Chemicals. Keep stainless steel surfaces free of in personal injury and serious equipment chemical residues. damage. SW039 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 8: Machine Location

    Always disconnect power and water supplies before a service technician performs any service procedure. Where applicable, steam and/or compressed air supplies should also be disconnected before service is performed. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 9: Ac Inverter Drive

    AC inverter drive to generate nuisance errors. • Sufficient space to perform service procedures and routine preventive maintenance is especially important for machines equipped with the AC inverter drive. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 10: Introduction

    Introduction Model Identification Information in this manual is applicable to these models: UW35TV UW60TV UW80TV UW100TV UW125TV UW150TV © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 11: Nameplate Location

    ID is and Figure 2. highlighted. 5. Press the keypad. EXAMPLE OF MACHINE NAMEPLATE LOCATION PHM1400C PHM1400C In UniLinc Control At back of machine Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)
  • Page 12 Electrical Characteristics Design Series Option Identification (varies from machine to machine) 0001 UW060TVQU10001 00000000000 200 – 240 50 – 60 500000 EXAMPLE OF NAMEPLATE PHM697N PHM697N Figure 2 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 13: Operation

    Door Latch Handle Door Hinge Door Handle Spray Rinse Tube (optional) Door Box Control Module Door Latch Extension Arm Door Unlock Button Door Latch Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)
  • Page 14 Supply Valve Box Basket Jog Button Supply Dispenser Door Latch Handle Spray Rinse Tube Door Box Side Panel Control Module Rub Rail Door Unlock Button Figure 4 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 15: Unilinc Control

    However, the owner can change the default cycle, or any cycle. For Technical Service Distributor ABC 1-800-555-5555 Cycle41: Cycle01: Cycle02: Supply Set Towels Towels White White Bleach Cycle Menu PHM702N Figure 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 16: Operational Keypad (Unilinc Control)

    Press to start or rapid advance a machine cycle during Run Mode. Also, press to START/ENTER save edited programming values when used in programming menus. Table 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 17: Cycle Display (Unilinc Control)

    Programmed Water Temperature - External Supply Indicators HOT, WARM, COLD or specific temperature Run Screen Indicator Actual Temperature – range of 35-205°F Countdown Timer (2-96°C) Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 18: Operating Instructions (Unilinc Control)

    5. On 150 models, turn handle counterclockwise and swing the door right to open. Door must be opened within 5 seconds of pressing the door unlock button. Refer to Figure 10. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...
  • Page 19 1-800-555-5555 Cycle41: Cycle01: Cycle02: Supply Set Towels Towels White White Bleach Cycle Menu PHM702N Figure 12 10. Press to start the selected cycle. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 20: Shakeout Routine (Unilinc Control)

    Heat Alarm Error PDA Communication Error PHM622N Figure 14 The jog feature is deactivated when the loading door is closed and the jog buttons are not pressed. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 21: Models Equipped With Both Steam And Electric Heating

    2. To select steam heat, make sure the switch is in the down position. To select electric heat, make sure the switch is in the up position. PHM784N PHM784N Figure 15 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 22: Maintenance

    Press the checklists for this purpose. keypad to return to Cycle Menu. The following maintenance procedures must be performed regularly at the required intervals. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 23: Daily (Unilinc Control)

    NOTE: Unload the washer-extractor promptly after each completed cycle to prevent moisture buildup. Leave loading door open at the end of each completed cycle to allow moisture to evaporate. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 24: Monthly (Unilinc Control)

    (± 5 pounds). (Set initial tension toward the high end of this range.) The 150 model uses a swing mount motor with an adjustable spring used for tensioning. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...
  • Page 25 P045I Drive Motor Drive Pulley Belt Straightedge Driven Pulley Figure 21 P044I P044I Deflection Span Length Figure 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 26: Quarterly (Unilinc Control)

    Cycle Menu is displayed. Service Schedule PHM711N Figure 22 The Quarterly Menu contains all quarterly service reminders that need to be performed. Press the keypad to return to Service Menu. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 27: Care Of Stainless Steel

    • Remove discoloration or heat tint from heavy protective coating. Stainless steel fasteners overheating by scouring with a powder or by should be used whenever possible. employing special chemical solutions. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 28: Daily Preventive Maintenance Checklist

    6. Clean water recirculation filter (where applicable). NOTE: Unload the machine promptly after each completed cycle to prevent moisture buildup. Leave loading door open after each completed cycle to allow moisture to evaporate. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 29: Weekly Preventive Maintenance Checklist

    Start an unloaded cycle to fill the machine. b. Verify that door and door gasket do not leak. c. Verify that the drain valve is operating. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)

  • Page 30: Monthly Preventive Maintenance Checklist

    10. Use compressed air to clean moisture and dust from all electrical components. 11. Remove chemical supply components (where applicable) and check for residual chemicals. Clean as necessary and replace. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701...

  • Page 31: Quarterly Preventive Maintenance Checklist

    3. Verify that the drain motor shield is in place and secure. 4. Check all painted surfaces for bare metal. Repair, if necessary. 5. Clean steam filter (where applicable). 6. Verify vibration switch gap. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)
