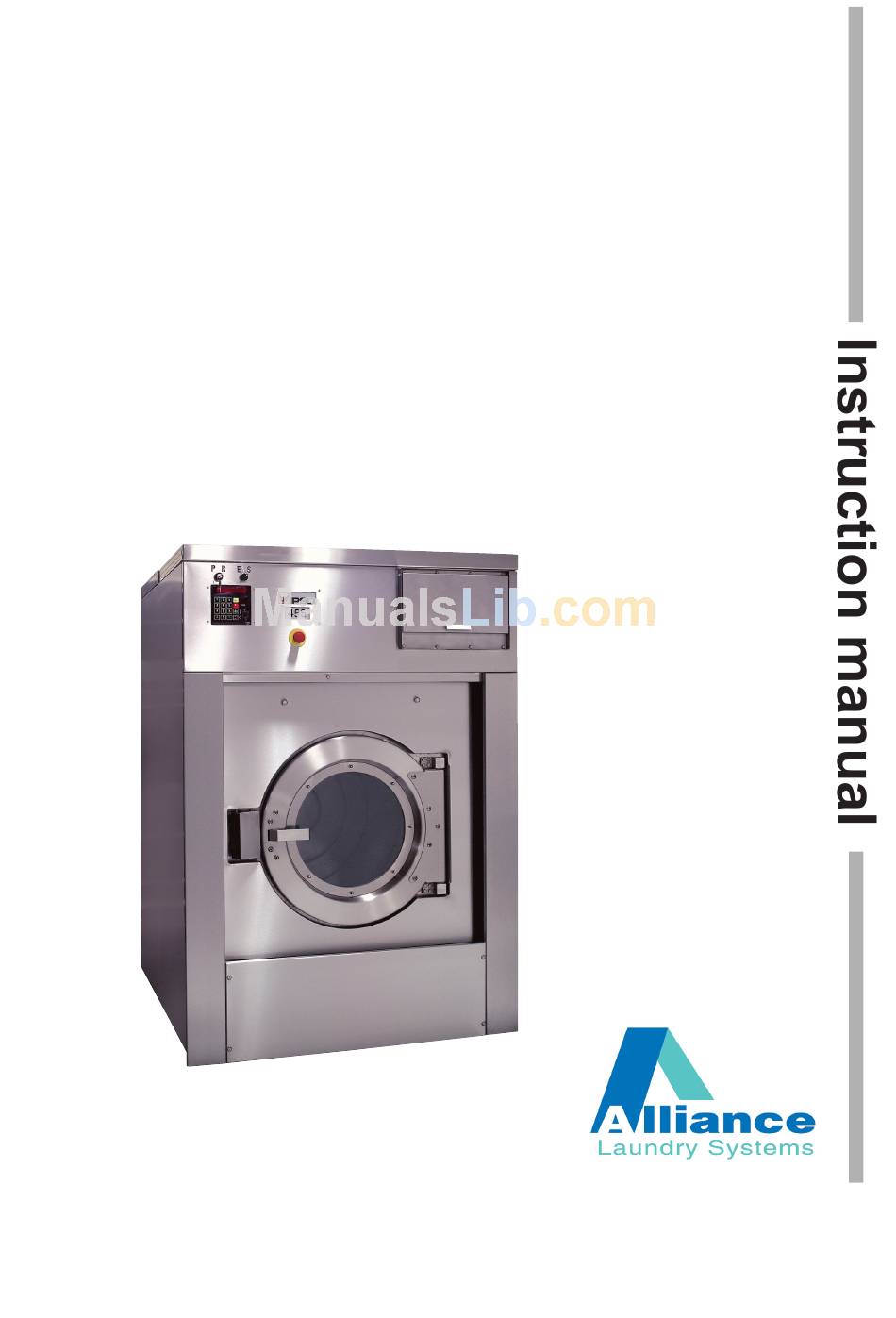

- Page 1 Washer Extractors HF455, HF575, HF730, HF900 for corresponding “CHF” and “IHF” models, see page 5 for complete model list Technical specifications Installation instructions Maintenance Part No. D0291R9 Code: 249/00406/20 January 2011...
-
Page 3: Table Of Contents
Installation and Connection Instructions ... 20 Surface ... 20 Removal of the transport safety ... 20 Mounting Bolt Hole Locations for machines, HF455, IHF455, IHF100, CHF100 ... 21 Mounting Bolt Hole Locations for machines, HF575, IHF575, IHF135, CHF135 ... 22 Mounting Bolt Hole Locations for machines, HF730, IHF730, IHF165, CHF165 ... - Page 4 Steam connection ... 38 Technical remarks ... 39 Internal connections of the electrical heating ... 39 Out of balance switch ... 40 Opening the door in case of an emergency ... 40 Maintenance instruction of the machine ... 41 End of day ... 41 General maintenance ...
-
Page 5: Model Numbers
Model Numbers Build-up Model numbers xHF455 xHF575 xHF730 xHF900 xHF100yyHyyyyyy xHF135yyHyyyyyy xHF165yyHyyyyyy xHF455yyHyyyyyy xHF575yyHyyyyyy xHF730yyHyyyyyy xHF900yyHyyyyyy IHF900MNH IHF100ANH IHF100MNH IHF900ZNH IHF135ANH CHF100ANH CHF100MNH IHF135MNH CHF135ANH IHF165ANH IHF165MNH CHF135MNH IHF455ANH CHF165ANH CHF165MNH IHF455MNH CHF455ANH IHF455ZNH IHF575ANH CHF455MNH IHF575MNH CHF575ANH IHF575ZNH CHF575MNH CHF730ANH IHF730ANH IHF730MNH... -
Page 6: Safety And Environmental Informations
Safety and Environmental Informations Safety CAUTION LABELS Please familiarize yourself with the following standard warning symbols. They are used throughout this manual and on the equipment to alert you to possible hazards. Anyone operating or servicing this equipment must understand these symbols and must follow all safety rules in this manual. -
Page 7: Environmental
Environmental Disposal of Unit This appliance is marked according to the European directive 2002/96/ EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. -
Page 8: Explanation Of Safety Messages
Explanation of Safety Messages Throughout this manual and on machine decals, you will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific instructions. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine. DANGER Indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death. -
Page 9: Important Safety Instructions
Important Safety Instructions WARNING To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions: 1. Read all instructions before using the washer. 2. Refer to the GROUNDING INSTRUCTIONS in the installation Manual for the proper grounding of the washer. -
Page 10: Save These Instructions
21. Loading door MUST BE CLOSED any time the washer is to fill, tumble, or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open. 22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. -
Page 11: Operator Safety
Operator Safety WARNING NEVER insert hands or objects into basket until it has completely stopped. Doing so could result in serious injury. To ensure the safety of machine operators, the following maintenance checks must be performed daily: 1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible signs must be replaced immediately. -
Page 12: Technical Data And Dimensions
Technical data and dimensions Technical data HF455, IHF455, IHF100, CHF100 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 41,4 kg... -
Page 13: Dimensions Hf455, Ihf455, Ihf100, Chf100
Dimensions HF455, IHF455, IHF100, CHF100 Legend: metric mm [inches] 83 [3.27] 1034 [40.71] 1200 [47.24] 303 [11.93] 233 [9.18] 173 [6.81] 113 [4.45] 83 [3.27] 210 [8.27] 83 [3.27] 45 [1.77] 156.5 [6.16] A. Soft water connection 3/4" B. Warm water connection 3/4"... -
Page 14: Technical Data Hf575, Ihf575, Ihf135, Chf135
Technical data HF575, IHF575, IHF135, CHF135 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 52,3 kg 1:10 57,5 kg 63,8 kg Diameter 980 mm... -
Page 15: Dimensions Hf575, Ihf575, Ihf135, Chf135
Dimensions HF575, IHF575, IHF135, CHF135 Legend: metric mm [inches] 83 [3.27] 1034 [40.71] 1200 [47.24] 303 [11.93] 233 [9.18] 173 [6.81] 113 [4.45] 83 [3.27] 210 [8.27] 45 [1.77] 83 [3.27] 155.5 [6.12] A. Soft water connection 3/4" B. Warm water connection 3/4" ... -
Page 16: Technical Data Hf730, Ihf730, Ihf165, Chf165
Technical data HF730, IHF730, IHF165, CHF165 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 66,4 kg 1:10 73 kg 81,1 kg Diameter 1095 mm... -
Page 17: Dimensions Hf730, Ihf730, Ihf165, Chf165
Dimensions HF730, IHF730, IHF165, CHF165 Legend: metric mm [inches] 81 [3.19] 1138 [44.8] 1300 [51.18] 408 [16.06] 323 [12.72] 248 [9.76] 173 [6.81] 81 [3.19] 260 [10.24] 81 [3.19] 44 [1.73] 272 [10.71] A. Soft water connection 3/4" B. Soft water connection 1" ... -
Page 18: Technical Data Hf900, Ihf900
Technical data HF900, IHF900 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 81,8 kg 1:10 90 kg 100 kg Diameter 1095 mm Depth... -
Page 19: Dimensions Hf900, Ihf900
Dimensions HF900, IHF900 Legend: metric mm [inches] 81 [3.19] 1138 [44.8] 1300 [51.18] 408 [16.06] 323 [12.72] 248 [9.76] 173 [6.81] 81 [3.19] 260 [10.24] 81 [3.19] 44 [1.73] 272 [10.71] A. Soft water connection 3/4" B. Soft water connection 1" ... -
Page 20: Installation And Connection Instructions
Installation and Connection Instructions Label 1 Removal of the transport safety Label 2 CAUTION Ensure that the machine is installed on a level floor of sufficient strength and that the recommended clearances for inspection and maintenance are provided. Never allow the inspection and maintenance space to be blocked. -
Page 21: Mounting Bolt Hole Locations For Machines, Hf455, Ihf455, Ihf100, Chf100
Mounting Bolt Hole Locations for machines, HF455, IHF455, IHF100, CHF100 Legend: metric mm [inches] 83 [3.27] 1034 [40.71] 1200 [47.24] 83 [3.27]... -
Page 22: Mounting Bolt Hole Locations For Machines, Hf575, Ihf575, Ihf135, Chf135
Mounting Bolt Hole Locations for machines, HF575, IHF575, IHF135, CHF135 Legend: metric mm [inches] 83 [3.27] 1034 [40.71] 1200 [47.24] 83 [3.27]... -
Page 23: Mounting Bolt Hole Locations For Machines, Hf730, Ihf730, Ihf165, Chf165
Mounting Bolt Hole Locations for machines, HF730, IHF730, IHF165, CHF165 Legend: metric mm [inches] 81 [3.19] 1138 [44.8] 81 [3.19] 1300 [51.18]... -
Page 24: Mounting Bolt Hole Locations For Machines, Hf900, Ihf900
Mounting Bolt Hole Locations for machines, HF900, IHF900 Legend: metric mm [inches] 81 [3.19] 1138 [44.8] 81 [3.19] 1300 [51.18]... -
Page 25: Water Connection
(IRN R150). Water drain The machine is equipped with a drain valve with 3" outer diameter (80 mm) for HF455- 575 and with 2x3" outer diameter (2x80 mm) for HF730-900. This drain valve should be connected to the drain by means of the drain elbow which is delivered with the machine. -
Page 26: Electrical Installation
Electrical Installation Important Electrical ratings are subject to changes. Refer to serial plate decal for electrical ratings information specific to your machine. WARNING Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive. - Page 27 This appliance must be connected to a grounded metal, permanent wiring system; or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment- grounding terminal or lead on the appliance. IMPORTANT: Alliance Laundry Systems Warranty does not cover components that fail as a result of improper input voltage.
-
Page 28: Main Power Connection
Main power connection Connection label: Machine power connections are made at the back of the machine. Three or four conductor power cable is the recommended method (See chapter electrical specs for minimum cable requirements, if local electrical codes exceed these requirements, follow local codes). The number of conductors in this cable and the proper connection points for the cable wires shall be determined by the machine and power requirements. - Page 29 200-240 Volts, 3-Phase, 3-wire + PE, 50 or 60 Hertz Configuration (Named: Q-Voltage or 3-phase X-Voltage): With supply power of: 200-240 Volts, 3-phase, 3-wire, after connecting the green/yellow PE ground wire, connect one power wire to each of the terminals at the bottom of the power contactor switch marked: “L1,L2,L3”. 200-240 volts, 1-Phase, 2-wire + PE, 50 Hertz (called 1-phase, 50 Hz X-voltage): With supply power of: 200-240 Volts, 1-phase, 2-wire, 50Hz, after connecting the green/yellow PE ground wire, connect the power wire to the “L1”...
-
Page 30: Electrical Specifications Hf455, Ihf455, Ihf100, Chf100
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF455, IHF455, IHF100, CHF100 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 WARNING... -
Page 31: Electrical Specifications Hf575, Ihf575, Ihf135, Chf135
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF575, IHF575, IHF135, CHF135 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 WARNING 575 liters / 135 pounds Boiler Fed/Steam Heat NON-US... -
Page 32: Electrical Specifications Hf730, Ihf730, Ihf165, Chf165
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF730, IHF730, IHF165, CHF165 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 WARNING 730 liters / 165 pounds Boiler Fed/Steam Heat NON-US... -
Page 33: Electrical Specifications Hf900, Ihf900
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF900, IHF900 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 WARNING 900 liters / 200 pounds Boiler Fed/Steam Heat NON-US 3+PE... -
Page 34: Automatic Lubricator
Automatic lubricator Label 4 The bearing house of the machine is equipped with a lubricating device (A) which automatically lubricates the bearing during one year. Upon delivery of the machine, this lubricator has not been brought into use. To this effect, please put on the matching screw (B) in the foreseen opening of the lubricator. -
Page 35: Liquid Soap Connection (Option)
Liquid soap connection (option) Label 5 Connection of the liquid soap hoses The liquid soap connection consists of 8 connections for liquid soap (See Label 5). The central opening is used for ventilation. Dangerous Chemicals. May damage eyes and skin. Wear eye and hand protection when handling chemicals;... - Page 36 The 220V can be transformed to other values to drive other type soap pumps. Example: pumps 24V ~. (See Label 7) Label 7 Also, pumps with different operating tension can be combined. Example: 5 pumps 220V ~ and 1 pump 24V ~. (See Label 8) Label 8 With an external tension 24V DC (See Label 9) Label 9...
-
Page 37: Connection Of A Central Operating Panel For Coin Machines (Option)
Connection of a central operating panel for coin machines (option) Label 10 Label 13 To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. -
Page 38: Steam Connection
Steam connection For the HF455, IHF455, IHF100, CHF100 For the HF575, IHF575, IHF135, CHF135 For the HF730, IHF730, IHF165, CHF165 For the HF900, IHF900 WARNING Never touch internal or external steam pipes, connections, or components. These surfaces can be extremely hot and will cause severe burns. -
Page 39: Technical Remarks
Technical remarks Internal connections of the electrical heating 1 AC 3 AC B = Black Br = Brown Gy = Grey Bu = Blue R = Red W = White Heating LC1D0901 Table 7 Heating 3x230V 4,2kw 3x1,4kw See Label 14 3x2kw See Label 14 3x3kw... -
Page 40: Out Of Balance Switch
Out of balance switch Window Probe Label 16 Opening the door in case of an emergency The out of balance switch is mounted on the solid part of the machine. There is a window around the probe of the out of balance switch that is mounted on the movable part of the machine. -
Page 41: Maintenance Instruction Of The Machine
Maintenance instruction of the machine To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Before starting wiring or inspection, power must be switched OFF, check to make sure that the operation panel indicator is off. -
Page 42: Annual Maintenance
Annual maintenance Model Belt HF455 3-XPA2360 HF575 3-XPA2360 HF730 4-XPA2800 HF900 4-XPA2800 Belt tension: Verify that the belts are running in the middle of the basket pulley. Verify the belt tension according to the table below. Belt tension measurements should be taken as close as possible to the center of the belt span (see figure). -
Page 43: Contact Information
Contact Information Nameplate Nameplate Location The nameplate is located at the rear of the machine. Always provide the machine’s serial number and model number when ordering parts or when seeking technical assistance. See Labels 17 and 18. Label 17 Label 18... - Page 44 Position of the Serial plate Replacement Parts If literature or replacement parts are required, contact the source from which the machine was purchased or contact the phone numbers or websites shown on the nameplate.
-
Page 45: Repair And After-Sales Service
Program: ... Date of installation: ... Installed by: ... Serial number: ... Operation voltage and frequency: ... Alliance Laundry Systems Shephard Street, PO BOX 990 Ripon, WI 54971-0990 United States Tel: 001 920 748 3121 - Fax: 001 920 748 1645 www.comlaundry.com...
