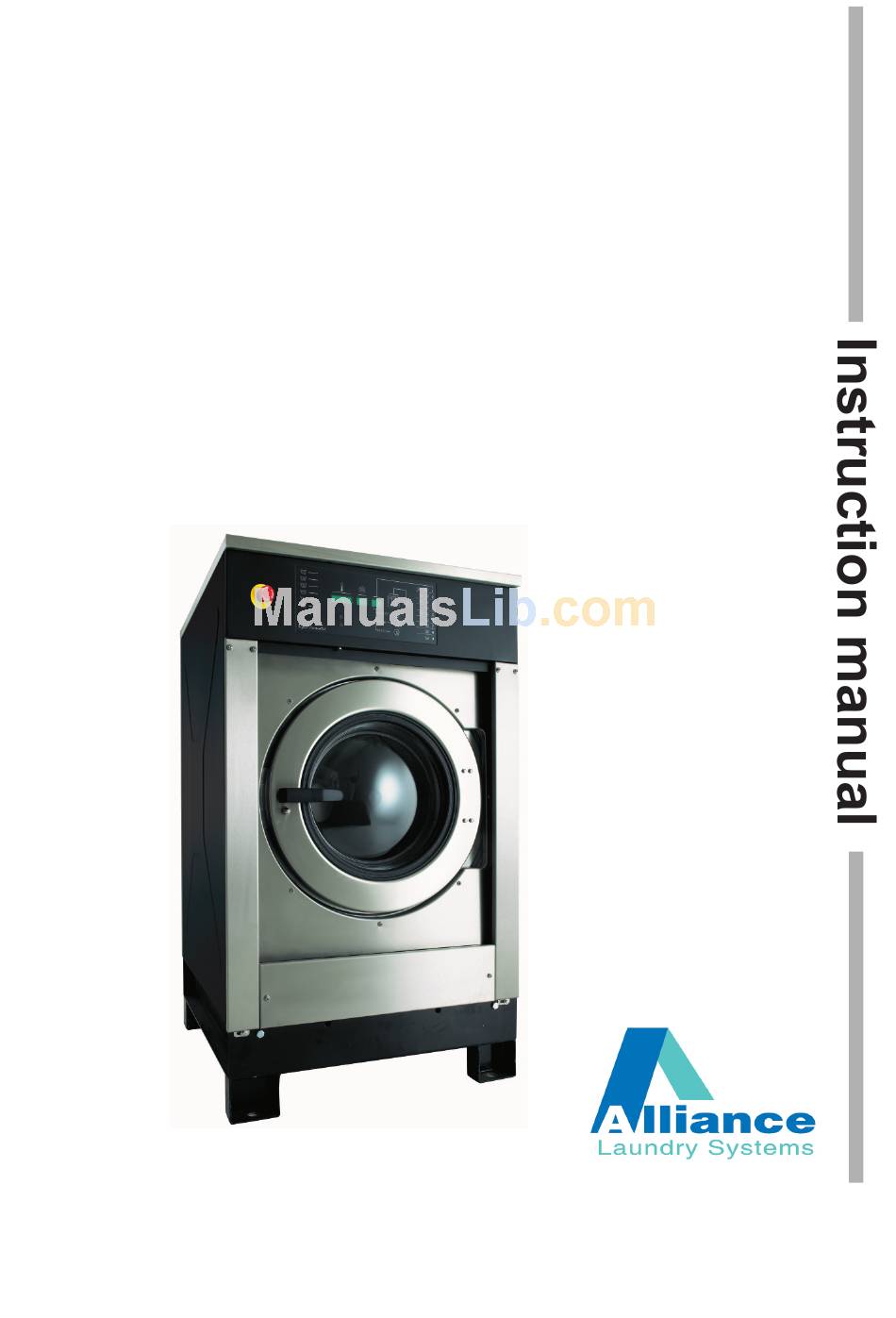

- Page 1 Washer Extractors HF150, HF185, HF234, HF304 for corresponding “CHF” and “IHF” models, see page 5 for complete model list Technical specifications Installation instructions Maintenance Part No. D0289R10 Code: 249/00390/10 March 2012...
-
Page 3: Table Of Contents
Important Safety Instructions ... 9 Operator Safety ... 11 Technical data and dimensions ... 12 Technical data HF150, IHF150, IHF033, CHF150, CHF033 ... 12 Dimensions HF150, IHF150, IHF033, CHF150, CHF033 ... 13 Technical data HF185, IHF185, IHF045, CHF185, CHF045 ... 14 Dimensions HF185, IHF185, IHF045, CHF185, CHF045 ... - Page 4 Steam connection ... 38 Technical remarks ... 39 Internal connections of the electrical heating ... 39 Maintenance instruction of the machine ... 40 End of day ... 40 General maintenance ... 40 Periodical maintenance ... 40 Annual maintenance ... 41 Contact Information ...
-
Page 5: Model Numbers
Model Numbers Build-up Model numbers HF150 HF185 HF234 HF304 HX55 HX75 xHF150yyHyyyyyy xHF185yyHyyyyyy xHF234yyHyyyyyy xHF304yyHyyyyyy xHF033yyHyyyyyy xHF045yyHyyyyyy xHF055yyHyyyyyy xHF075yyHyyyyyy IHF150MNHX1 CHF033 CHF045 IHF150ZNHP1 CHF055 IHF185 IHF185ANHN1 CHF055ANHX1 IHF185ANHP1 CHF055MNHX1 CHF075 IHF185ANHX1 CHF075ANHP1 IHF185YNHP1 IHF185ZNHP1 CHF075ANHQ1 IHF185ZNHX1 CHF150 CHF185 IHF234 CHF234... -
Page 6: Safety And Environmental Informations
Safety and Environmental Informations Safety CAUTION LABELS Please familiarize yourself with the following standard warning symbols. They are used throughout this manual and on the equipment to alert you to possible hazards. Anyone operating or servicing this equipment must understand these symbols and must follow all safety rules in this manual. -
Page 7: Environmental
Environmental Disposal of Unit This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. -
Page 8: Explanation Of Safety Messages
Explanation of Safety Messages Throughout this manual and on machine decals, you will find precautionary statements (“DANGER”, “WARNING” and “CAUTION”) followed by specific instructions. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine. DANGER Indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death. -
Page 9: Important Safety Instructions
Important Safety Instructions WARNING To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions: 1. Read all instructions before using the washer. 2. Refer to the GROUNDING INSTRUCTIONS in the installation Manual for the proper grounding of the washer. -
Page 10: Save These Instructions
21. Loading door MUST BE CLOSED any time the washer is to fill, tumble, or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open. 22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. -
Page 11: Operator Safety
Operator Safety WARNING NEVER insert hands or objects into basket until it has completely stopped. Doing so could result in serious injury. To ensure the safety of machine operators, the following maintenance checks must be performed daily: 1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible signs must be replaced immediately. -
Page 12: Technical Data And Dimensions
Technical data and dimensions Technical data HF150, IHF150, IHF033, CHF150, CHF033 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11... -
Page 13: Dimensions Hf150, Ihf150, Ihf033, Chf150, Chf033
Dimensions HF150, IHF150, IHF033, CHF150, CHF033 Legend: metric mm [inches] 680 [26.77] 780 [30.71] 332 [13.05] 267 [10.49] 202 [7.93] 105 [4.13] 35 [1.38] 109 [4.3] 170 [6.69] 868 [34.17] 772 [30.39] 858 [33.78] 770 [30.31] 858 [33.78] A. Ventilation soap dispenser ... -
Page 14: Technical Data Hf185, Ihf185, Ihf045, Chf185, Chf045
Technical data HF185, IHF185, IHF045, CHF185, CHF045 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 16,5 kg 1:10 18,1 kg 20,1 kg Diameter 680 mm... -
Page 15: Dimensions Hf185, Ihf185, Ihf045, Chf185, Chf045
Dimensions HF185, IHF185, IHF045, CHF185, CHF045 Legend: metric mm [inches] 680 [26.77] 780 [30.71] 332 [13.05] 267 [10.49] 202 [7.93] 105 [4.13] 35 [1.38] 109 [4.3] 170 [6.69] 970 [38.19] 874 [34.41] 863 [33.98] 956 [37.64] A. Ventilation soap dispenser ... -
Page 16: Technical Data Hf234, Ihf234, Ihf055, Chf234, Chf055
Technical data HF234, IHF234, IHF055, CHF234, CHF055 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 21,3 kg 1:10 23,4 kg 26 kg Diameter 750 mm... -
Page 17: Dimensions Hf234, Ihf234, Ihf055, Chf234, Chf055
Dimensions HF234, IHF234, IHF055, CHF234, CHF055 Legend: metric mm [inches] 738 [29.05] 900 [35.43] 346 [13.62] 251 [9.88] 156 [6.12] 35 [1.38] A. Ventilation soap dispenser 116 [4.57] B. Liquid soap connections C. Hard water connections 3/4" ... -
Page 18: Technical Data Hf304, Ihf304, Ihf075, Chf304, Chf075
Technical data HF304, IHF304, IHF075, CHF304, CHF075 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Dynamic bottom load (N/Hz) Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 27,6 kg 1:10 30,4 kg 33,8 kg Diameter 850 mm... -
Page 19: Dimensions Hf304, Ihf304, Ihf075, Chf304, Chf075
Dimensions HF304, IHF304, IHF075, CHF304, CHF075 Legend: metric mm [inches] 865 [34.06] 1060 [41.73] 488 [19.21] 367.5 [14.47] 247 [9.72] 187 [7.36] 35 [1.38] A. Ventilation soap dispenser B. Liquid soap connections C. Hard water connections 3/4" ... -
Page 20: Installation And Connection Instructions
Installation and Connection Instructions Label 1 Out of balance switch Window Probe Label 2 CAUTION Ensure that the machine is installed on a level floor of sufficient strength and that the recommended clearances for inspection and maintenance are provided. Never allow the inspection and maintenance space to be blocked. -
Page 21: Removal Of The Transport Safety
After the machine has been placed level, take off the service panel and back panel to remove these transport brackets. (See Labels 3 and 4) Important The machine must never be activated before removing these transport brackets. HF150-185 Label 4... -
Page 22: Mounting Bolt Hole Locations For Machines, Hf150, Ihf150, Ihf033, Chf150, Chf033
Mounting Bolt Hole Locations for machines, HF150, IHF150, IHF033, CHF150, CHF033 Legend: metric mm [inches] 50 [1.97] 680 [26.77] 780 [30.71] 50 [1.97]... -
Page 23: Mounting Bolt Hole Locations For Machines, Hf185, Ihf185, Ihf045, Chf185, Chf045
Mounting Bolt Hole Locations for machines, HF185, IHF185, IHF045, CHF185, CHF045 Legend: metric mm [inches] 50 [1.97] 680 [26.77] 780 [30.71] 50 [1.97]... -
Page 24: Mounting Bolt Hole Locations For Machines, Hf234, Ihf234, Ihf055, Chf234, Chf055
Mounting Bolt Hole Locations for machines, HF234, IHF234, IHF055, CHF234, CHF055 Legend: metric mm [inches] 81 [3.19] 738 [29.05] 900 [35.43] 81 [3.19]... -
Page 25: Mounting Bolt Hole Locations For Machines, Hf304, Ihf304, Ihf075, Chf304, Chf075
Mounting Bolt Hole Locations for machines, HF304, IHF304, IHF075, CHF304, CHF075 Legend: metric mm [inches] 97.5 [3.84] 865 [34.06] 97.5 [3.84] 1060 [41.73]... -
Page 26: Water Connection
(IRN R150). Water drain The machine is equipped with a drain valve with 2" outer diameter (50 mm) for HF150- 185 and with 3" outer diameter (80 mm) for HF234-304. This drain valve should be connected to the drain by means of the drain elbow which is delivered with the machine. -
Page 27: Electrical Installation
Electrical installation Important Electrical ratings are subject to changes. Refer to serial plate decal for electrical ratings information specific to your machine. WARNING Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive. - Page 28 This appliance must be connected to a grounded metal, permanent wiring system; or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment- grounding terminal or lead on the appliance. IMPORTANT: Alliance Laundry Systems Warranty does not cover components that fail as a result of improper input voltage.
-
Page 29: Main Power Connection
Main power connection Connection label: Machine power connections are made at the back of the machine. Three or four conductor power cable is the recommended method (See chapter electrical specs for minimum cable requirements, if local electrical codes exceed these requirements, follow local codes). The number of conductors in this cable and the proper connection points for the cable wires shall be determined by the machine and power requirements. - Page 30 200-240 Volts, 3-Phase, 3-wire + PE, 50 or 60 Hertz Configuration (Named: Q-Voltage or 3-phase X-Voltage): With supply power of: 200-240 Volts, 3-phase, 3-wire, after connecting the green/yellow PE ground wire, connect one power wire to each of the terminals at the bottom of the power contactor switch marked: “L1,L2,L3”. 200-240 volts, 1-Phase, 2-wire + PE, 50 Hertz (called 1-phase, 50 Hz X-voltage): With supply power of: 200-240 Volts, 1-phase, 2-wire, 50Hz, after connecting the green/yellow PE ground wire, connect the power wire to the “L1”...
-
Page 31: Electrical Specifications Hf150, Ihf150, Ihf033, Chf150, Chf033
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF150, IHF150, IHF033, CHF150, CHF033 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60... -
Page 32: Electrical Specifications Hf185, Ihf185, Ihf045, Chf185, Chf045
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF185, IHF185, IHF045, CHF185, CHF045 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415... -
Page 33: Electrical Specifications Hf234, Ihf234, Ihf055, Chf234, Chf055
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF234, IHF234, IHF055, CHF234, CHF055 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415... -
Page 34: Electrical Specifications Hf304, Ihf304, Ihf075, Chf304, Chf075
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications HF304, IHF304, IHF075, CHF304, CHF075 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415... -
Page 35: Liquid Soap Connection (Option)
Liquid soap connection (option) Label 6 Connection of the liquid soap hoses The liquid soap connection consists of 8 connections for liquid soap (See Label 6). The central opening is used for ventilation. Dangerous Chemicals. May damage eyes and skin. Wear eye and hand protection when handling chemicals;... - Page 36 The 220V can be transformed to other values to drive other type soap pumps. Example: pumps 24V ~. (See Label 8) Label 8 Also, pumps with different operating tension can be combined. Example: 5 pumps 220V ~ and 1 pump 24V ~. (See Label 9) Label 9 With an external tension 24V DC (See Label 10) Label 10...
-
Page 37: Connection Of A Central Operating Panel For Coin Machines (Option)
Connection of a central operating panel for coin machines (option) Label 11 Label 14 To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. -
Page 38: Steam Connection
Steam connection For the HF150, IHF150, IHF033, CHF150, CHF033 For the HF185, IHF185, IHF045, CHF185, CHF045 For the HF234, IHF234, IHF055, CHF234, CHF055 For the HF304, IHF304, IHF075, CHF304, CHF075 WARNING Never touch internal or external steam pipes, connections, or components. These surfaces can be extremely hot and will cause severe burns. -
Page 39: Technical Remarks
Technical remarks Internal connections of the electrical heating 1 AC 3 AC B = Black Br = Brown Gy = Grey Bu = Blue R = Red W = White Heating LC1D0901 Table 8 Heating 3x230V 4,2kw 3x1,4kw See Label 15 3x2kw See Label 15 3x3kw... -
Page 40: Maintenance Instruction Of The Machine
Maintenance instruction of the machine To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Before starting wiring or inspection, power must be switched OFF, check to make sure that the operation panel indicator is off. -
Page 41: Annual Maintenance
Annual maintenance Model Belt HF150 10J 1549 HF185 10J 1549 HF234 10J 1663 HF304 10PK 2120 Belt tension: Verify that the belts are running in the middle of the basket pulley. Verify the belt tension according to the table below. Belt tension measurements should be taken as close as possible to the center of the belt span (see figure). -
Page 42: Contact Information
Contact Information Nameplate Nameplate Location The nameplate is located at the rear of the machine. Always provide the machine’s serial number and model number when ordering parts or when seeking technical assistance. See Labels 17 and 18. Label 17 Label 18... - Page 43 Position of the Serial plate Replacement Parts If literature or replacement parts are required, contact the source from which the machine was purchased or contact the phone numbers or websites shown on the nameplate.
-
Page 44: Repair And After-Sales Service
Program: ... Date of installation: ... Installed by: ... Serial number: ... Operation voltage and frequency: ... Alliance Laundry Systems Shephard Street, PO BOX 990 Ripon, WI 54971-0990 United States Tel: 001 920 748 3121 - Fax: 001 920 748 1645 www.comlaundry.com...
