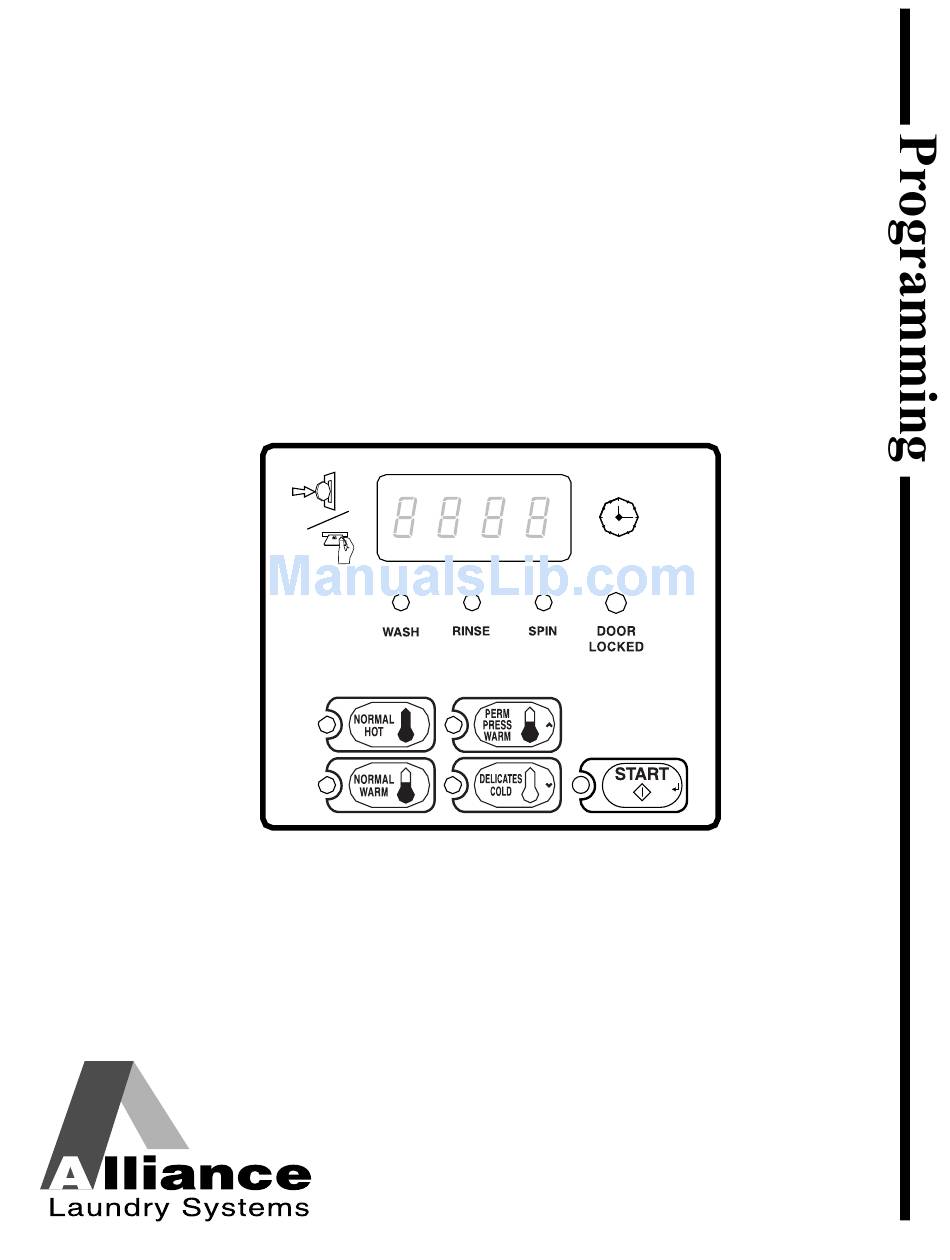

- Page 1 Frontload Washer Refer to Page 4 for Model Numbers FLW1R FLW1R Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 801184R7 www.alliancelaundry.com December 2012...
-
Page 3: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
W030 Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand. 801184 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... - Page 5 How to Use Rapid Advance ..............29 How to Exit Rapid Advance Feature ............ 29 Default Washer Settings..............30 Default Settings ..................30 Default Cycle ..................30 801184 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 6 HTGBCF HWRY61 STEZ17 SWRTE1 HTGBDF HWRY71 STGBCF SWRX61 HTGBYF HWRYE1 STGBXF SWRX71 HTGT19 HWRZ61 STGBYF SWRY61 HTGT79 HWRRE1 STGT19 SWRY71 HTGX19 HWRTE1 STGT79 SWRZ61 HTGX79 HWRXE1 STGX13 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184...
-
Page 7: Preliminary Information
LED (Light Emitting Diode) – This term refers to the lights on the keypads and status words of the control. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 8: Mdc Identification
FLW1R Four 7-Segment Digits Four-Digit Display LED Status Lights SELECT CYCLE Keypads START Keypad LED Light Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 9: Display Identification
(as described in Entering the Manual The RINSE LED is lit at the beginning of the rinse or Mode). extra rinse cycle and will remain lit until the cycle is complete. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 10: Washer Operation
START LED will begin to flash. If a third party card reader is used, the START LED will begin to flash when a valid cash card is entered into the reader. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 11: Mdc Special Features
Manual Programming, Audit Collection, and • Show Drain Time Test Diagnostics. • Production Test For detailed information on running diagnostic tests, refer to Testing Machine and MDC Functions. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 12: Opening The Service Door
FLW3R FLW3R FLW4R FLW4R STACKED WASHERS AND DRYERS FRONT CONTROL WASHERS FLW6R FLW6R FLW5R REAR CONTROL COIN WASHERS REAR CONTROL CARD WASHERS FLW5R Service Door Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 13: Entering The Manual Mode
4. Press the PERM PRESS/WARM ( ) or the DELICATES/COLD ( ) keypad to scroll through the options until the desired option appears in the display. 5. Press the START (enter) keypad. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 14: Programming Mdc
NOTE: The letters in the Option column of the Programmable Options List are what will show in the Four-Digit Display when that option is selected. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 15: Vend Price "Ats
2. While pressing and holding the NORMAL/HOT DRY550R keypad with one hand, press the NORMAL/WARM Figure 6 keypad with the other hand. The control will revert back to the previous mode of operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 16: Coin #1 Amount "Den1
NORMAL/ WARM keypad with the other hand. The control will revert back to the previous mode of operation. DRY552R DRY552R Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 17: Coin #2 Amount "Den2
NORMAL/ WARM keypad with the other hand. The control will revert back to the previous mode of operation. DRY553R Figure 12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 18: Start Pulse Value "Plse
2. While pressing and holding the NORMAL/HOT keypad with one hand, press the NORMAL/WARM Figure 15 keypad with the other hand. The control will revert back to the previous mode of operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 19: Cycle Stages "Cycl
NORMAL/ WARM keypad with the other hand. The control will revert back to the previous mode of operation. DRY555R Figure 18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 20: Configuration "Cnfg
“CnFg” appears WARM keypad with the other hand. The control in the Four-Digit Display. will revert back to the previous mode of operation. DRY563R Figure 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 21: Configuration Programming
Pump/Gravity Drain Pump = Turns pump on and turns gravity drain off Gravity Drain = Turns gravity drain on and turns pump off © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... - Page 22 Coin Drop #1 Pump Coin Drop #1 Gravity Drain Coin Drop #1 Pump Coin Drop #1 Gravity Drain Coin Drop #1 Pump Coin Drop #1 Gravity Drain Table 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184...
-
Page 23: Default Cycle "Dcyc
4. Press the PERM PRESS/WARM ( ) or the DELICATES/COLD ( ) keypad to scroll through the programmable options until “dCyC” appears in the Four-Digit Display. TLW1944N Figure 22 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 24: Collecting Audit Information
“S003” or higher. NOTE: To exit Audit Feature when using Coin Vault Open method, owner must close coin vault. 2. Press the START (enter) keypad. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 25: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
The control will return to the previous mode of Diagnostic Mode Four-Digit Display Number operation. Refer to Figure 2. d001 Show Fill Time Test FXXX d002 Show Drain Time dXXX Test Table 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 26: Production Test Cycle
Refer to Table 4 for all tests in the Production Test Cycle. To Exit Production Test Cycle The control must be powered down to end the test. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... - Page 27 Door Lock is unpowered. The door will take approximately 1 minute to unlock. The motor will run at Regular Agitate speed. The control will remain in this step until the door unlocks. Table 4 (continued) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184...
- Page 28 Motor runs at Regular Agitate speed until door is unlocked. When door unlocks, control will exit test. * These test steps are only on controls with software versions “S005” or higher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184...
-
Page 29: Rapid Advance Feature
Table 5 for cycle steps. NOTE: When the Rapid Advance feature is used to end a cycle, the loading door will stay locked for 1 minute after the cycle has ended. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184... -
Page 30: Default Washer Settings
2 minutes Final Rinse Distribute 45 seconds Final Rinse Spin 2 minutes and 15 seconds Final High Spin 5 minutes Breakaway 1 minute Total Cycle Time 25 minutes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 801184...
