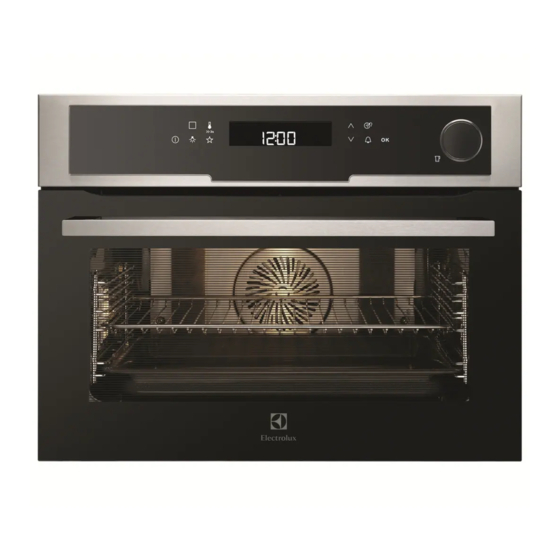

Compact mulitifunction oven with steam, 15 functions with white led display in stainless steel.
Hide thumbs Also See for EVY9741AAX:
Table of Contents

Advertisement

Quick Links

................................................ .............................................
EVY9741AA
EN STEAM OVEN
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVY9741AAX and is the answer not in the manual?

Questions and answers

Related Manuals for Electrolux EVY9741AAX

Summary of Contents for Electrolux EVY9741AAX

  • Page 1 ..................... EVY9741AA EN STEAM OVEN USER MANUAL...

  • Page 2: Table Of Contents

    16. EUROPEAN GUARANTEE ..........45 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind.

  • Page 3: Safety Information

    ENGLISH 1. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the instructions with the appliance for future reference. 1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent disability.

  • Page 4: Safety Instructions

    • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass. • Only use the core temperature sensor recommended for this appliance.

  • Page 5: Steam Cooking

    ENGLISH • Discoloration of the enamel has no ef- 2.2 Use fect on the performance of the appli- WARNING! ance. It is not a defect in the sense of Risk of injury, burns or electric the warranty law. shock or explosion. •...

  • Page 6: Product Description

    WARNING! • Disconnect the appliance from the Risk of electrical shock. mains supply. • Cut off the mains cable and discard it. • Before replacing the lamp, disconnect • Remove the door catch to prevent chil- the appliance from the power supply.

  • Page 7: Before First Use

    ENGLISH Sponge For absorbing the remaining water from the steam generator. Steam set One unperforated and one perforated food container. The steam set drains the condensing wa- ter away from the food during steam cooking. Use it to prepare food that should not be in the water during the cooking (e.g.

  • Page 8: Control Panel

    5. CONTROL PANEL 5.1 Electronic programmer 7 8 9 10 Use the sensor fields to operate the appli- ance. Sensor Function Description Field ON/OFF To activate and deactivate the appliance. OPTIONS To set an oven function, an automatic programme or a cleaning function.

  • Page 9: Daily Use

    ENGLISH 5.2 Display Oven function symbol Number of the oven function / pro- gramme Indicators for the clock functions (refer to the table "Clock functions") Clock / residual heat display (also Mi- nute Minder and Time of Day) Temperature / time display 5.3 Other indicators in the display Symbols Name...

  • Page 10: Oven Functions

    10 www.electrolux.com 6.1 Oven functions Oven function Application Full Steam For vegetables, fish, potatoes, rice, pasta or special side dishes. Half Steam + For dishes with a high moisture content and for Heat poaching fish, custard royale and terrines. Quarter Steam...

  • Page 11: Setting The Oven Function

    ENGLISH Oven function Application True Fan To bake maximum on 2 shelf positions at the Cooking same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking. Additional information: 6.2 Setting the oven function •...

  • Page 12: Clock Functions

    12 www.electrolux.com the remaining temperature, 6.7 Energy saving and the bars show the tem- The appliance contains fea- perature as it decreases. tures which help you save en- • Cooking with the lamp off - ergy during everyday cooking: Touch to deactivate the •...

  • Page 13: Automatic Programmes

    ENGLISH results of the cooking, and, if necessary, If you touch while you add the END or DURATION time. set the DURATION, the appliance switches to the setting of the END function. 7.5 Setting the MINUTE When the set time ends, an acoustic MINDER signal sounds for two minutes.

  • Page 14: Automatic Programmes With Weight Input

    14 www.electrolux.com There are 9 automatic pro- There are three types of automatic grammes and recipes. Use an au- programmes: tomatic programme or recipe • Automatic recipes when you do not have the knowl- • Automatic programmes with weight in- edge or experience on how to prepare a dish.

  • Page 15: Using The Accessories

    ENGLISH 8.4 Automatic programmes with Touch to set the pro- gramme for the core temperature the core temperature sensor sensor. The core temperature of the food is de- The display shows the cooking time, fault and fixed in programmes with the core temperature sensor.
  • Page 16 16 www.electrolux.com Remove the core temperature sensor set the core temperature, touch from the socket and remove the meat to set a new value. from the appliance. Set the oven function and, if necessa- ry, the oven temperature. WARNING! Be careful when you remove the The display shows the current core core temperature sensor.

  • Page 17: Additional Functions

    ENGLISH 10. ADDITIONAL FUNCTIONS 10.1 My Favourite Programme Touch and hold at the same time for 2 seconds. An acoustic function signal sounds. SAFE comes on or goes out in the dis- Use this function to save your favourite play. temperature and time settings for an oven function or programme.

  • Page 18: Helpful Hints And Tips

    18 www.electrolux.com You can set the settings menu on- Touch to change the value ly when the appliance is deactiva- of the setting. ted. Touch Activating the settings menu: 10.5 Automatic switch-off If necessary, deactivate the appliance with For safety reasons the appliance deacti- Touch and hold for three seconds.

  • Page 19: Steam Water Table

    ENGLISH Chrome steel food containers are correct Increase the amount of water for rice to too (see special accessories). the ratio 1 : 1.5 - 1: 2 contrary to the specifications in the table. Oven levels • There are the correct oven levels in the 11.3 True Fan Cooking and Full table below.
  • Page 20 20 www.electrolux.com • Put the clean containers in the middle • Fill the drawer with the maximum of the shelf on the 1st level. Make sure amount of water and set a time of 40 that the opening faces down at a small min.
  • Page 21 ENGLISH Temperature Water Time Food Shelf position ºC amount in ml min. White haricot 25 - 35 beans Savoy cab- 20 - 25 bage Courgette, sli- 1) The times are for guidance only. Side dishes / accompaniments Temperature Water Shelf posi- Time Food ºC...
  • Page 22 22 www.electrolux.com Temperature Water Shelf posi- Time Food ºC amount in ml tion min. Salmon trout, approx. 1000 40 - 45 Mussels 20 - 30 Flat fish filet 1) The times are for guidance only. Meat Temperature Water Shelf posi-...
  • Page 23 ENGLISH 11.6 Half Steam + Heat Cooking Table Half Steam + Heat (water amount about 300 ml) Type of Food Temperature ºC Time in min. Shelf position Custard / flan in 40 - 45 individual dishes 35 - 45 Baked eggs 40 - 50 Terrine Thin fish fillet...

  • Page 24: Baking On One Oven Level

    24 www.electrolux.com Quarter Steam + Heat (water amount about 300 ml) Type of Food Temperature Shelf posi- Quantity Time in min. ºC tion Misc. types of 0,5 - 1 kg 180 - 190 45 - 60 bread Rolls 40 - 60 g...
  • Page 25 ENGLISH Type of baking Oven func- Shelf Temperature Time (min) tion position (°C) Apple pie / Apple pie True Fan 70 - 90 (2 tins Ø 20 cm, diag- Cooking onally off set) Apple pie / Apple pie Convectional 70 - 90 (2 tins Ø...
  • Page 26 26 www.electrolux.com Type of baking Oven func- Shelf po- Temperature Time (min) tion sition (°C) Yeast cakes with deli- Convectional 160 - 180 40 - 80 cate toppings (e.g. Cooking quark, cream, cus- tard) Biscuits Food Oven func- Shelf po-...

  • Page 27: Multileveled Baking

    ENGLISH Type of Food Temperature °C Time in min Oven level Plaited bread / 160 - 180 40 - 50 bread crown Cake with crumble 150 - 160 20 - 30 topping (dry) Buttered almond 180 - 200 20 - 30 cake / sugar cakes Biscuits made with 150 - 160...

  • Page 28: Pizza Setting

    28 www.electrolux.com Slow Cook table Food to be cooked Weight Temperature Shelf po- Time (min) (°C) sition Roast beef 1 - 1,5 kg 120 - 150 Fillet of beef 1 - 1,5 kg 90 - 110 Roast veal 1 - 1,5 kg...
  • Page 29 ENGLISH • Roast lean meats in the roasting tin with • If necessary, turn the roast (after 1 / 2 - the lid. This keeps the meat more suc- 2 / 3 of the cooking time). culent. • Baste large roasts and poultry with their •...
  • Page 30 30 www.electrolux.com Veal Type of Quantity Oven func- Shelf po- Temperature Time meat tion sition °C (min) Roast veal 1 kg Turbo Grill- 160 - 180 150 - 120 Knuckle of 1.5 - 2 Turbo Grill- 160 - 180 120 - 150...
  • Page 31 ENGLISH Fish (steamed) Type of Quanti- Oven Shelf Temperature Time meat function position (°C) (min) Whole fish 1 - 1.5 Conven- 210 - 220 45 - 60 tional Cooking • Set the shelf in the shelf level as recom- 11.13 Grilling mended in the grilling table.

  • Page 32: Convenience Food

    32 www.electrolux.com • Use the first shelf position. The one on 11.14 Convenience food the bottom. • Remove the food packaging. Put the food on a plate. • Do not cover it with a bowl or a plate. This can extend the defrost time.

  • Page 33: Making Preserves

    ENGLISH • Use the first oven shelf level. The one 11.15 Defrosting on the bottom. • Remove the food packaging. Put the food on a plate. • Do not cover it with a bowl or a plate. This can extend the defrost time. Defrosting table Food Quantity...

  • Page 34: Core Temperature Sensor Table

    34 www.electrolux.com Preserves table - Stone fruits Preserve Tempera- Cooking time Cooking time ture (°C) until simmering at 100 °C (min) (min) Pears, quinces, plums 160 - 170 35 - 45 10 - 15 Preserves table - Vegetables Preserve Tempera-...

  • Page 35: Care And Cleaning

    ENGLISH Pork Food to be Cooked Food Core Temperature Shoulder of pork, ham joint, neck 80 - 82 °C Chop (saddle), smoked pork loin 75 - 80 °C Meat loaf 75 - 80 °C Veal Food to be Cooked Food Core Temperature Roast veal 75 - 80 °C Knuckle of veal...

  • Page 36: Steam Cleaning

    36 www.electrolux.com • To clean metal surfaces, use a usual The display shows the duration (15 cleaning agent. minutes) and the default temperature. Touch to start the cleaning. • Clean the appliance interior after each use. Then you can remove dirt more An acoustic signal sounds when the easily and it does not burn on.

  • Page 37: Steam Generation System

    ENGLISH Pull the support out of the rear catch. Installing the shelf support 12.4 Lamp To install the shelf support follow the pro- WARNING! cedure in the opposite order. There is a risk of electrical shock. The lamp and the lamp glass cov- er can be hot.
  • Page 38 38 www.electrolux.com 12.5 Door and glass panels Remove the door to clean it. Removing the door CAUTION! Be careful when you remove the door from the appliance. The door is heavy. Open the door as far as it goes. Fully lift up the clamping levers (A) on the two door hinges.

  • Page 39: What To Do If

    ENGLISH 13. WHAT TO DO IF… WARNING! Refer to the Safety chapters. Problem Possible cause Remedy The appliance does not The appliance is deacti- Activate the appliance. heat up. vated. The appliance does not The clock is not set. Set the clock. Refer to heat up.
  • Page 40 40 www.electrolux.com CAUTION! For UK use only This oven must be earthed! The cable used to connect the oven to the electrical supply must comply to the specifications given below. Connection via Min. size Cable/ Cable/flex type Fuse flex Cooker Control 2,5 mm²...
  • Page 41 ENGLISH min. 448-452 min. 448-452 min. 448-452 min.
  • Page 42 42 www.electrolux.com 448-452 448-452 min. 560 448-452 min.
  • Page 43 ENGLISH 90° 2x3,5x25...

  • Page 44: Great Britain & Ireland - Guarantee/Customer Service

    For address of local Service Force Centre and further information, please vis- it: www.serviceforce.co.uk Before call- We, Electrolux, undertake that if within 12 ing out an engineer, please ensure you months of the date of the purchase this have read the details under the heading Electrolux appliance or any part thereof is "What to do if...

  • Page 45: European Guarantee

    Electrolux and is only used within the • The appliance guarantee starts from the home, i.e. is not used for commercial date you first purchased the appliance purposes.

  • Page 46: Environment Concerns

    Mägenwil Slovenija +38 61 24 25 731 Gerbičeva ulica 110, 1000 Ljubljana Slovensko +421 2 32 14 13 34-5 Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Galvaniho 17/ B, 821 04 Bratislava Suomi 030 600 5200 Lankapuhelinverkosta 0,0828€/puhelu+0,032€/min Matkapuhelinver- kosta 0,192€/min...
  • Page 47 ENGLISH with the household waste. Return the product to your local recycling facility or contact your municipal office.
  • Page 48 www.electrolux.com/shop...
