Checking the LED
Indicators
Downloaded from www.Manualslib.com
When the Bridge is connected to power, LEDs indicate activity as follows:

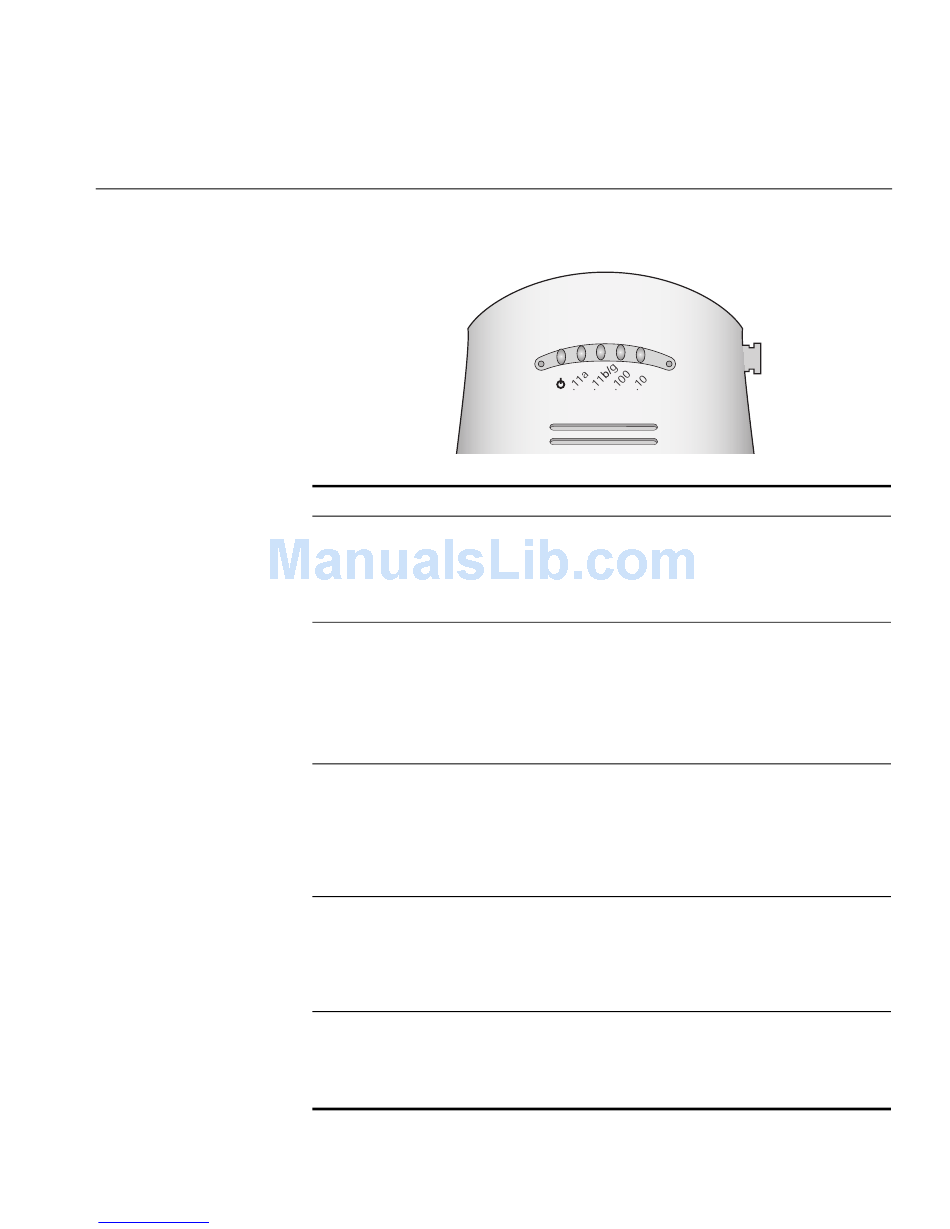

Figure 13 LED Indicators
Table 3 LED Descriptions
LED
Power
11a
11b/g
100
10
manuals search engine
Color Indicates
Green The Bridge is powered up and operating
normally.
Off The Bridge is not receiving power or there is a
fault with the power supply.
Green (solid) The Bridge has an 802.11a 5 GHz radio band
connection.
Green (blinking) The Bridge has WLAN frame transmission over
the 802.11a 5 GHz radio band.
Off No link is present.
Green (solid) The Bridge has an 802.11g 2.4 GHz radio band
connection.
Green (blinking) The Bridge has WLAN frame transmission over
the 802.11g 2.4 GHz radio band.
Off No link is present.
Green (solid) The Bridge has a 100 Mbps Fast Ethernet
connection.
Green (blinking) The Bridge has 100 Mbps Fast Ethernet activity.
Off No link is present.
Green (solid) The Bridge has a 10 Mbps Ethernet connection.
Green (blinking) The Bridge has 10 Mbps Ethernet activity.
Off No link is present.

Checking the LED Indicators

17
