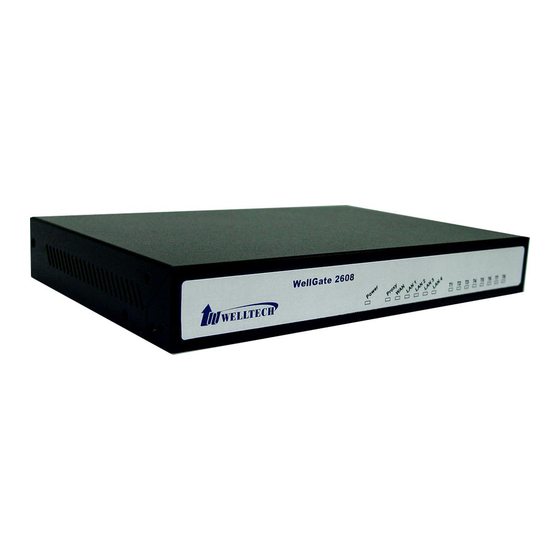

WellGate 2608

8-FXS port Gateway

Revision Information

Version

EN-V1.00

Welltech

(SIP)

User Manual

Date

Description

Jul-30-2007

English Version

Table of Contents

Need help?

Do you have a question about the WELLGATE 2608 - V1.00 and is the answer not in the manual?

Questions and answers

Summary of Contents for WELLTECH WELLGATE 2608 - V1.00

Page 1: User Manual
Welltech WellGate 2608 8-FXS port Gateway (SIP) User Manual Revision Information Version Date Description EN-V1.00 Jul-30-2007 English Version Copyright © 2007 Welltech Computer Co., Ltd. All right reserved...
Page 2: Table Of Contents
SIP Advanced Configuration ..................39 Number Configuration......................41 Digit Manipulation ......................41 System Configuration......................43 System configuration ....................43 SNTP configuration .......................47 Payload type........................49 Line Configuration ......................51 Media Configuration ........................53 Codec..........................53 Voice ..........................56 Phone ..........................58 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 3 Updating the firmware by FTP ...................65 Updating the firmware by TFTP .................67 Updating the firmware by HTTP ................69 Provision Server ......................70 Flash clean........................71 System Status...........................72 Network system status ....................72 Port Status........................73 Version Information ......................74 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 4: Introduction
4-LAN port, for PC or other network devices connecting. Telephony port (RJ-11) 8-FXS ports, to connect with analog phone (POTS) Reset button (Factory Default) AC power Jack Status indicated LED Indicates Ethernet, FXS, and SIP system status Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 5: Specification
CNG – Comfortable Noise Generation Echo Cancelation (G.165/G.168) Jitter Buffer – Adaptive & Configurable Packet Loss compensation - increasing voice quality DTMF: In-band, Out-of-band (RFC 2833), and SIP-Info Caller Generation – FSK Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 6: Setting And Maintenance
Dimension: 35 × 242 × 160 mm (Desktop) Weight: 0.935kg (unit) Operating Temp. & Humidity Temp.: 0℃～45℃ (32℉～113℉) Humidity: 10％～85% relative humidity, non-condensing Storage Temp. & Humidity Temp.: 0℃～55℃ (32℉～131℉) Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 7 WellGate 2608 Technical Manual EN-V1.00 Humidity: 10％～95％ relative humidity, non-condensing AC Power Adaptor: INPUT: AC100V-240V, 50/60Hz OUTPUT: DC 12V, 3.0A Regulatory Compliance: FCC (Part 15, Class B) & CE Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 8: Appearance
LAN port 2). When data is transmitted through this port, it will flash green. LAN 3 This will light up green when the gateway’s LAN port 1 is physically Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 9 It will flash amber orange when there is an incoming call. The status LED for FXS port 5, this will light up amber orange when the Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 10 2. Rear Panel: LED Indicators Item Description Reset Press and hold over 3 seconds to reload factory default setting, this will erase all the settings configured on the gateway. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 11 10/100 Base-T RJ-45 socket for LAN port 1, connects to local area network. 10/100 Base-T RJ-45 socket for WAN port, connects to wide area network. DC 12V The power socket, input AC 100V~120V; output DC12V. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 12: Environment Setup And Ip Connection
Configuration Login to the WG2608 web configuration menu 1. Open your WEB browser and key in the IP address of the gateway (http://192.168.123.123) in the Address box (see figure below). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 13 2. You will see a pop-up window requesting username and password before you can login to the web configuration menu. Username is “root” while password is blank “ “ (see figure below). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 14 WellGate 2608 Technical Manual EN-V1.00 3. You will enter the main page of the web configuration interface after you keyed in the username and password correctly (see figure below). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 15: Quick Setup Guide Using Installation Wizard
1. Click on the Installation Wizard option located on the navigation panel on the left hand side of the web menu. 2. Click the Next>> button to proceed or the Cancel button to exit the installation wizard. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 16 3. Select the Network Connection Mode for your device, you can choose either Static IP Address, DHCP or PPPoE. Click the <<Back button to go back or Next>> to proceed. To exit the installation wizard, click the CANCEL button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 17: Static Ip Address
1. Input the IP address, subnet mask, default gateway, primary and secondary DNS address. 2. Click the <<Back button to go back or Next>> to proceed. To exit the installation wizard, click the CANCEL button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 18 2. Click the View button to view the current settings, click the Modify button to apply the changes made to the SIP settings. 3. Click the <<back button to go back. To finish the installation, click the OK button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 19 WellGate 2608 Technical Manual EN-V1.00 4. You will be prompted with a pop-up window for confirmation, to proceed, click OK. To quit, click cancel. 5. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 20: Dhcp
1. Select the Network Connection Mode for your device, you can choose either Static IP Address, DHCP or PPPoE. Click the <<Back button to go back or Next>> to proceed. To exit the installation wizard, click the CANCEL button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 21 3. Click the View button to view the current settings, click the Modify button to apply the changes made to the SIP settings. 4. Click the <<back button to go back. To finish the installation, click the OK button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 22 WellGate 2608 Technical Manual EN-V1.00 5. You will be prompted with a pop-up window for confirmation, to proceed, click OK. To quit, click cancel. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 24: Pppoe
1. Select the Network Connection Mode for your device, you can choose either Static IP Address, DHCP or PPPoE. Click the <<Back button to go back or Next>> to proceed. To exit the installation wizard, click the CANCEL button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 25 WellGate 2608 Technical Manual EN-V1.00 2. Input the PPPoE username and password. 3. Click the <<Back button to go back or Next>> to proceed. To exit the installation wizard, click the CANCEL button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 26 5. Click the View button to view the current settings, click the Modify button to apply the changes made to the SIP settings. 6. Click the <<back button to go back. To finish the installation, click the OK button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 27 WellGate 2608 Technical Manual EN-V1.00 7. You will be prompted with a pop-up window for confirmation, to proceed, click OK. To quit, click cancel. 6. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 28: Network Configuration
FXS port of the gateway. You will hear an IVR announcing the current IP address of the WAN port. WAN Configuration Static IP Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 29 Specify the port number for WEB management, the allowable range is 1024~65535. 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 30: Dhcp
Select the DNS behaviour, you can choose the following: DNS auto Manual “DNS auto” will retrieve the DNS information sent from the DHCP server. “Manual” will look at the specified Primary and Secondary DNS address. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 31 Specify the port number for WEB management, the allowable range is 1024~65535. 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 32: Pppoe
“DNS auto” will retrieve the DNS information sent from the DHCP server. “Manual” will look at the specified Primary and Secondary DNS address. Primary DNS Specify the address of the primary Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 33 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the CANCEL button (next to the OK button) to clear the values in the page. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 35: Lan Configuration
DHCP server Enable/Disable DHCP function on the LAN port. Once enabled, the LAN ports will function as a DHCP server, network devices connected to them will be issued with IP addresses. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 36 You can specify the IP address of the DNS server that will be allocated to the DHCP client. 1. Press the OK button (at the bottom) after you finish to save changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 38: Making A Voip Call
Phone number Enter the phone number Account name Enter the SIP account Account password Enter the associated password to the Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 39 SIP account and password. Once finished, press the OK button to save changes, or press the RESET button to restore back to default values. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 40: Sip Advanced Configuration
Specify the session expire time that will be used to negotiate with the remote host or proxy. Minimum Session Expire Specify the minimum session expire time that other host or proxy will need Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 41 Local RTP port Specify the local RTP port’s number. 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 42: Number Configuration
1. Click the Add button (at the bottom) to add a new record in the routing table, to delete a record in the routing table, specify the prefix you want to delete in the prefix text box and click the Delete button. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 44: System Configuration
In-Band RFC2833 SIP Info End of dial key Specify the type of end of dial symbol to use for accelerating the dialing process, you can choose the following: Disable Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 46 Specify the IP address of the syslog server. cdr mode Enable/Disable Call Detail Record (CDR) feature, the CDR will store the following details: CDR record time Type (outgoing or incoming) Source Number Destination Number Call ID Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 47 Specify the IP address of the CDR server. 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 48: Sntp Configuration
SNTP server, the time displayed is synchronized. Therefore, to see the latest time, refresh your web browser. 1. Press the OK button (at the bottom) after you finish to save changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 50: Payload Type
FAX by pass payload type Specify the FAX by pass payload type (range is 96~128, default value is 102. 100, 103~105 is reserved by other payload types). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 51 100, 102~104 is reserved by other payload types). 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 52: Line Configuration
To disable this function, input the value “x” in this field. Forward Type Specify the forwarding type to use, you can choose the following: Disable Unconditional Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 53 Displays the line status, whether it is ready or busy. 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 54: Media Configuration
You can specify the priority of this codec from 1 to 5 (1 being the highest priority and 5 being the lowest). You can also specify the packet size in the Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 55 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the CANCEL button (next to the CANCEL button) to restore back to default values. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 57: Voice
WG2608 equips. Local voice volume Specify the volume gain of the voice in the local side (0~63, default is 28). You can set this option for each of the 8 lines. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 58 You can set this option for each of the 8 lines. 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 59: Phone
Specify the Ringing OFF value. Ringing level Specify the ringing level. Country Specify the ringing standard to use. 1. Press the OK button (at the bottom) after you finish to save changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 60: Wellgate 2608 Technical Manual En-V1.00
(Unit : V) tone frequency : 0 ~ 65535 (Unit : Hz) tone freqLevel : 0 ~ 65535 (Unit : mVrms) tone Tone ON/OFF : 0 ~ 8000 (Unit : ms) Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 62 On and Off time for tone 1 and 2. 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 63: Device Management
New password Specify the new password for the user selected in the drop down list above. Confirm new password Repeat the new password again for confirmation. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 64 WellGate 2608 Technical Manual EN-V1.00 1. Press the OK button (at the bottom) after you finish to save changes. 2. Press the reboot button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 65: Software Upgrade
Specify the login username/password for the FTP server. Target file name Specify the target file name for the firmware. Http Upload Specify the location of the firmware for uploading through Http. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 66: Updating The Firmware By Ftp
4. Please wait while the device updates itself with the firmware. 5. After the update process is finish, you will be taken to a web page indicating that it was successful (see figure below). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 68: Updating The Firmware By Tftp
5. Please wait while the device updates itself with the firmware. 6. After the update process is finish, you will be taken to a web page indicating that it was successful (see figure below). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 70: Updating The Firmware By Http
6. Please wait while the device updates itself with the firmware. 7. After the update process is finish, you will be taken to a web page indicating that it was successful (see figure below). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 71: Provision Server
Specify the username to login to the provisioning server. Provisioning user password Specify the password associated to the username of the provisioning server above. Provisioning cycle time Specify the cycle time of the provisioning. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 72: Flash Clean
Users can restore back to factory default settings using this feature. The password of the account and the network configurations are the things that will not be changed when this feature is executed. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 73: System Status
Displays the current default gateway’s Primary DNS address Displays the current primary DNS address. Second DNS address Displays the current secondary DNS address. WAN MAC Displays the MAC address of the WAN Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 74: Port Status
Displays the corresponding port number. Status Displays the status of the port. Port Type Displays the port type of the corresponding port number. Register Displays the registration status of the corresponding port number. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 75: Version Information
Displays the current boot version loaded on the WG2608. Post version Displays the current post version loaded on the WG2608. Application version Displays the current application version loaded on the WG2608. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
Page 76: Rebooting The System
Executing this function will reboot the whole system, when configuration changes are made to the device, it needs to be rebooted for the changes to take effect (see figure below). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
