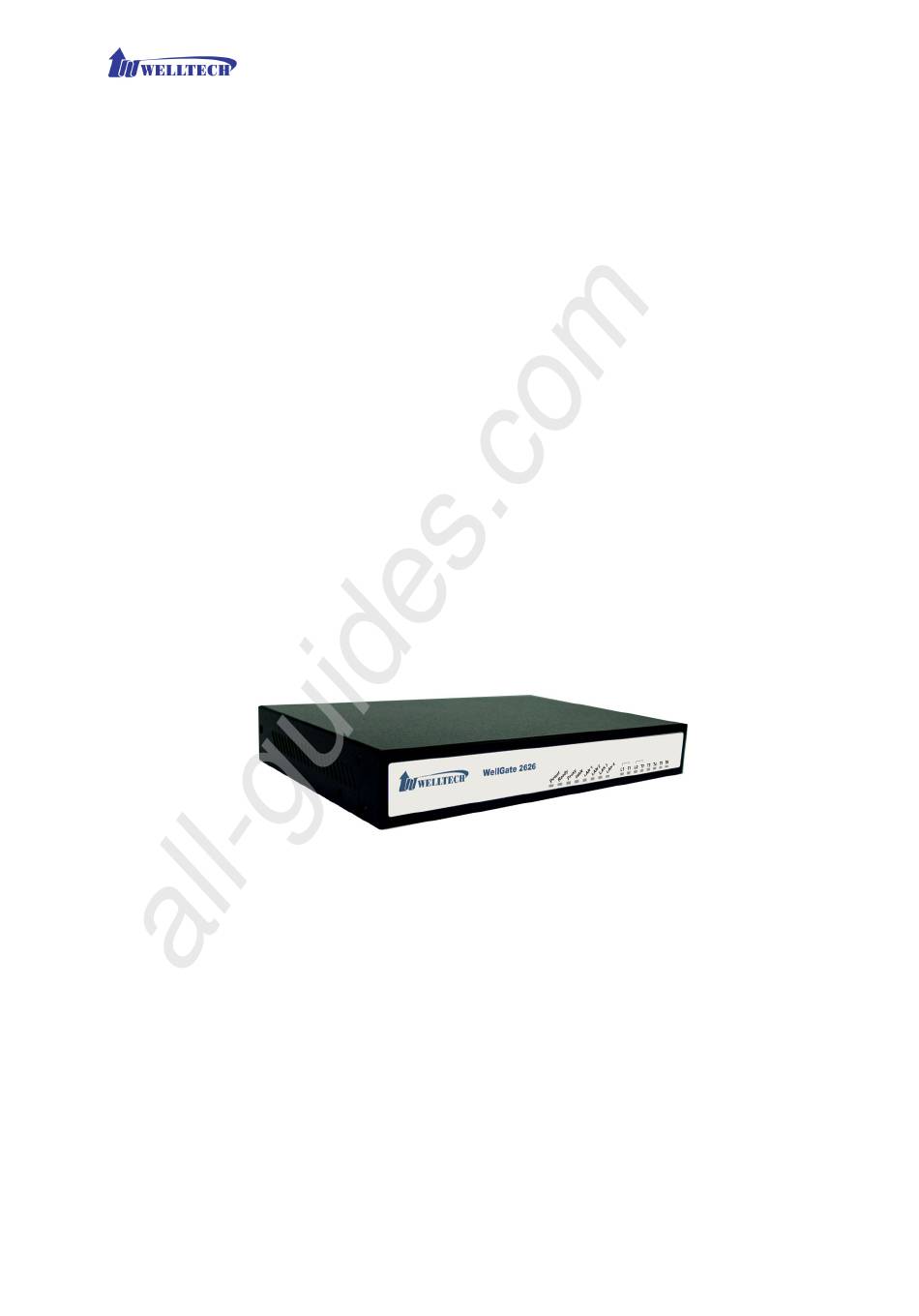

  • Page 1 All manuals and user guides at all-guides.com Welltech WellGate 2626 An Easy to Use PBX Gateway User Manual Copyright © 2009 Welltech Computer Co., Ltd. All right reserved...

  • Page 2: Table Of Contents

    IVR Greeting ........................20 Service_Status ........................21 Management..........................23 Management_Backup-Restore Setting..............23 Management_Upgrade Firmware................23 Updating the firmware by FTP ...................24 Updating the firmware by TFTP .................25 Updating the firmware by HTTP ................26 Management_Reset to Default................27 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 3: Introduction

    Introduction WellGate™ 2626 - An Easy to Use PBX Gateway Wellgate 2626 is a plug and play PBX gateway for SOHO and small office user which provides 2 PSTN lines, 6 Extension and SIP Calls together. It can work stand-along without any network connection just power on and use it. Also it becomes a small and simple IP-PBX when you enable the SIP service.

  • Page 4: Environmental

    T5: 25 T6: 26 All outgoing calls are route to PSTN automatically All incoming call is answered by Auto Attendant Press 9 for operator and # for end of dialing Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 5: Appearance

    It will flash amber orange when there is an incoming call. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 6 DC 12V The power socket, input AC 100V~120V; output DC12V. * L1/T1 and L2/T2 is a bypass pair. When power is lost or Wellgate 2626 is malfunction, L1’s PSTN will directly bypass to T1 and L2 will bypass to T2.

  • Page 7: Environment Setup And Ip Connection

    DHCP server of WG2626 LAN will assign IP address (192.168.123.1) for your PC. 2. Open your WEB browser and key in the IP address of the gateway (http://192.168.123.123) in the Address box (see figure 1). (Figure 1) Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 8 “ “ (see figure 2). (Figure 2) 3. You will enter the main page of the web configuration interface after you keyed in the username and password correctly (see figure 3). (Figure 3) Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 9: Device

    WG2626. There are in total three methods of connections: Static IP, DHCP and PPPoE. (see figure 4) Device_WAN Setting (Figure 4) The table shown below describes the configuration items for 3 connection types of network (Static IP, DHCP and PPPoE). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 10 100M HTTP port for WEB Specify the port number for management WEB management, the allowable range is 80,1024~65535. IP address Specify the IP address. Subnet mask Specify the subnet mask. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 11 It is used to specified the max transmission unit when using PPPoE. The default value is 1492 and it could be smaller is you are encounter the PPPoE connecting issues. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 12: Device_Wan Setting --Static Ip

    5. 2. Press the “Apply” button (at the bottom) after you finish to save changes. (Figure 6) 3. Press the “Reboot” button to apply the changes.(see figure 6) Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 13: Device_Wan Setting --Dhcp

    Press the “Apply” button (at the bottom) after you finish to save changes. 3. Press the “Reboot” button to apply the changes. Device_WAN Setting --PPPoE (Figure 8) 1. When you select the “PPPoE” mode, please Specify the marked item shown as Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 14: Device_Login

    Press the “Apply” button (at the bottom) after you finish to save changes. 3. Press the “Reboot” button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 15: Service

    G.711, G.729 and G.723 The default setting is “Regular”. Press the “Apply” button (at the bottom) after you finish to save changes. 3. Press the “Reboot” button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 16: Service_Extension Line

    2. Simultaneous Ring: Parallel Ring all priority of operators’ extension, exclude those extension’s operator set to ”NA”. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 17 Forward TEL Specify the forward extension number 1. Press the “Apply” button (at the bottom) after you finish to save changes. 2. Press the “Reboot” button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 18: Service_Pstn Line

    PSTN tone to become the active value. You can modify it if necessary. Route Setting Those prefix defined here, will be route to PSTN no matter VOIP is active or not. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 19: Service_Sip Trunk

    Secondary SIP Proxy Server Enable/Disable Secondary SIP Proxy Server SIP Account Setting Line Number Specify the SIP line number (This item is essential for VOIP service) User ID Specify SIP account Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 20 Specify the port number, the default port number is 5060 1. Press the “Apply” button (at the bottom) after you finish to save changes. 2. Press the “Reboot” button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 21: Ivr Greeting

    IVR Greeting (Figure 14) (Figure 15) In the “Service_IVR Greeting ” section (see figure 14,15), you can customize the IVR greeting prompts by uploading those files into Wellgate 2626. Greeting Type The default contents of greeting are shown below: 1. Welcome : Thank you for calling 2.

  • Page 22: Service_Status

    1. Press the “Reboot” button to apply the changes. Service_Status (Figure 16) In the “Service_Status” section (see figure 16), Display the status of Network, S/W version and line. Network Status Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 23 Displays the port type (FXS,FXO)of the corresponding port number. Line Number Displays the line number Status Displays the status of the port. Register Displays the registration status of the corresponding port number. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 24: Management

    After import data, press the “Reboot” button to apply the changes. Management_Upgrade Firmware (Figure 18) Download mode Select the connection method to update the WG2626’s firmware, you can choose the following: Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 25: Updating The Firmware By Ftp

    4. Please wait while the device updates itself with the firmware. 5. After the update process is finish, you will be taken to a web page indicating that it was successful. 6. Press the “Reboot” button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 26: Updating The Firmware By Tftp

    6. After the update process is finish, you will be taken to a web page indicating that it was successful (see figure below). 7. Press the “Reboot” button to apply the changes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 27: Updating The Firmware By Http

    WG2626. However, you will lose all the settings configured on the WG2626 except Network configuration. For more details on reload default setting, please refer to the next page below. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 28: Management_Reset To Default

    Executing this function will reboot the whole system, when configuration changes are made to the device, it needs to be rebooted for the changes to take effect (see figure 23). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
