WELLTECH FTP PROVISION How To Use

Http and ftp provision

How to use Http and Ftp provision

Get the http provisioning packet from Welltech and start the provisioning as follows:

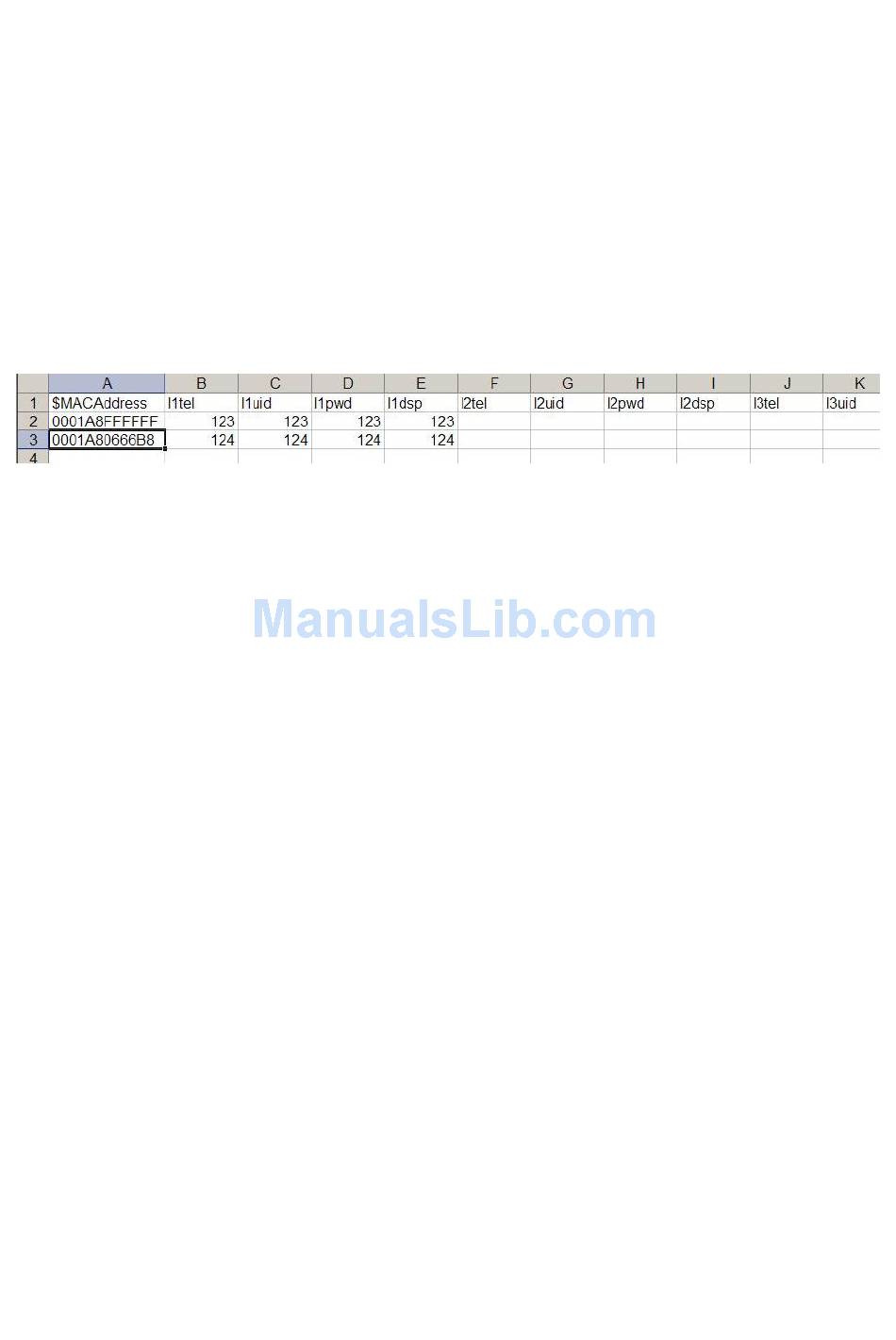

Please open the "LP389 MAC.csv" gotten from Welltecg by using Microsoft Excel, you can refer the

picture below. Normally, you should get all required configuration mac list from Welltech and use

it for configuration file generation.

The LP389 MAC.csv contains most frequently changed parameters as following:

MACAddress: Wellgate LP389 MAC Address

L1tel~l3tel: tel no for each line

L1uid~l3uid: user name for register to SIP proxy for each line

L1pwd~l3pwd: user password for register to SIP proxy for each line

L1dsp~l3dsp: display name for each line

Please save and close it.

Open the "LP 389 Parameter.txt" getting from Welltech and make the required change. Please at

least make the changes for those provisioning and SIP proxy settings. For detail, please refer the

comments of "LP389 Parameter.txt".

# Template File

BaseFile=.\LP389 Parameter.txt

# MAC list file

ListFile=.\LP389 MAC.csv

# 0: Off, 1: On

Encrypt=0

Table of Contents

Do you have a question about the FTP PROVISION and is the answer not in the manual?

Page 1 Step 1: build mac list for mass configuration file generation Please open the “LP389 MAC.csv” gotten from Welltecg by using Microsoft Excel, you can refer the picture below. Normally, you should get all required configuration mac list from Welltech and use it for configuration file generation.
Page 2 26xx Technical Manual EN-V107 Step 4: Generate the individual configuration file. Double click the “wtgencfg.exe”, it will generate the configuration file for each MAC list in “MAC address.cfg” as the following pictures. Step 5: Put the “*.cfg” file into http or ftp directory. Set the provisioning settings in LP389 and reboot to test it.
