MINOURA LEVEL-170 Instruction Manual

Thank you for purchasing the Minoura LEVEL-
170 race stand. You may hang up to 5 bikes by
the saddle nose on the horizontal bar of the
170.
The LEVEL-170 comes standard with a 38.1
mm (diameter) x 1700 mm (length) bar. If you
need a different length, a 22.2 mm bar may be
used. Maximum load for the standard bar is
150 kg.
IMPORTANT NOTE
How To Assemble The Stand
1.
Holding the bar in one hand, push the right or left leg of the stand out with your
foot until the jaws come in contact with the bar. Once the jaws have come in contact
with the bar, use your hand to push the LINK PLATE down until the jaws and LINK
PLATE lock securely into place. Repeat the procedure for the other side of the stand.
!
LEVEL-170 Instruction Manual
Read this instruction manual carefully before use.

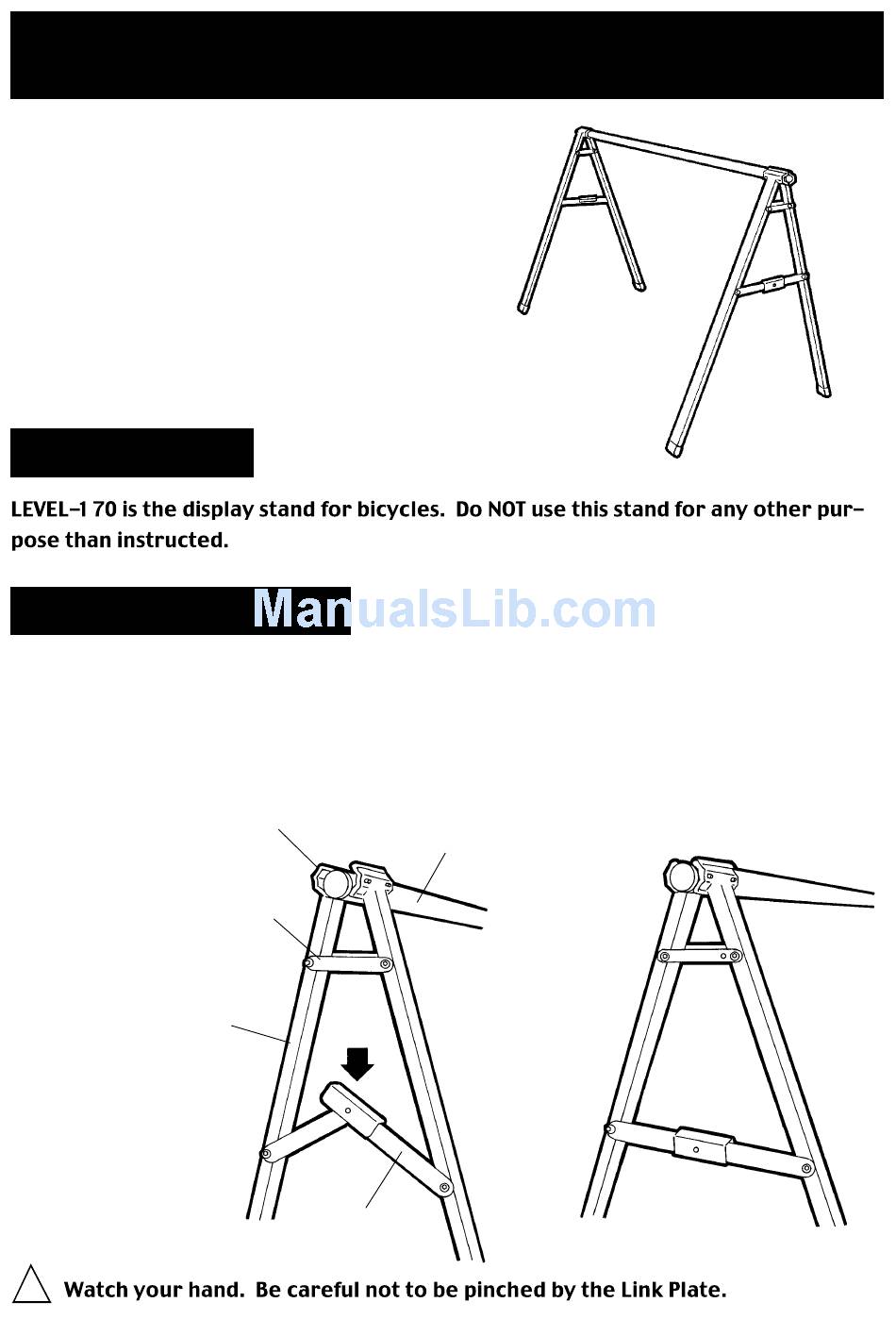

Clamp Jaw
Connecting
Plate
Leg
Link Plate
Bar
Ü"
(Fig. A)
(Fig. B)
