Closing the blade server cover
Important: The blade server cannot be inserted into the SBCE unit until the cover is installed and
closed or an expansion unit is installed. Do not attempt to override this protection.

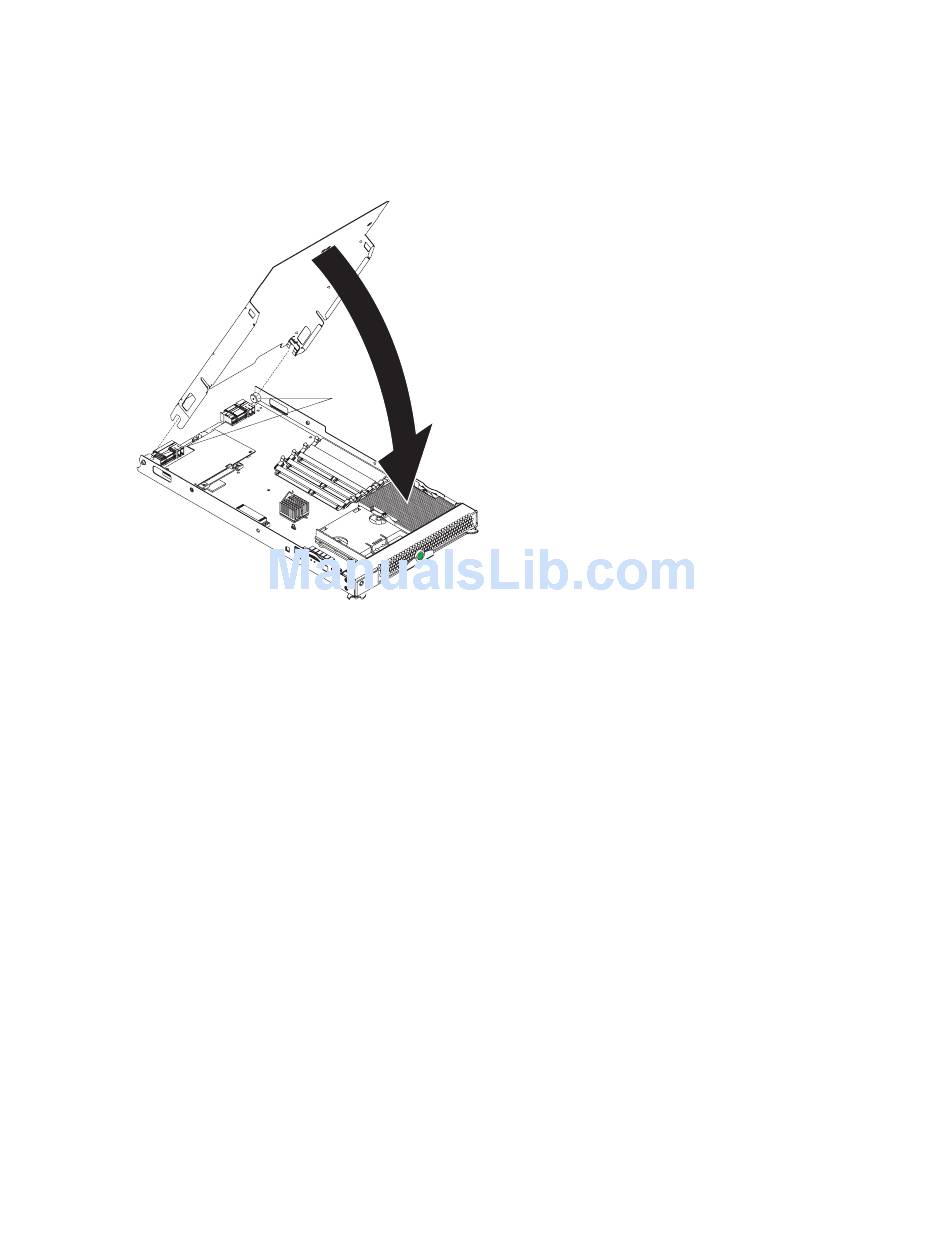

The following illustration shows how to close the blade server cover.
Complete the following steps to close the blade server cover:
1. Read the safety information beginning on page "Safety" on page vii and "Installation
guidelines" on page 19.
2. If you removed the blade bezel assembly, replace it now (see "Installing the blade server bezel
assembly" on page 44 for instructions).
3. Lower the cover so that the slots at the rear slide down onto the pins at the rear of the blade
server, as shown in the illustration. Before closing the cover, check that all components are
installed and seated correctly and that you have not left loose tools or parts inside the blade
server.
4. Pivot the cover to the closed position, as shown in the illustration, until it clicks into place.
Cover
pins
45
