Chapter 1 Cisco SRST SNMP MIB Support

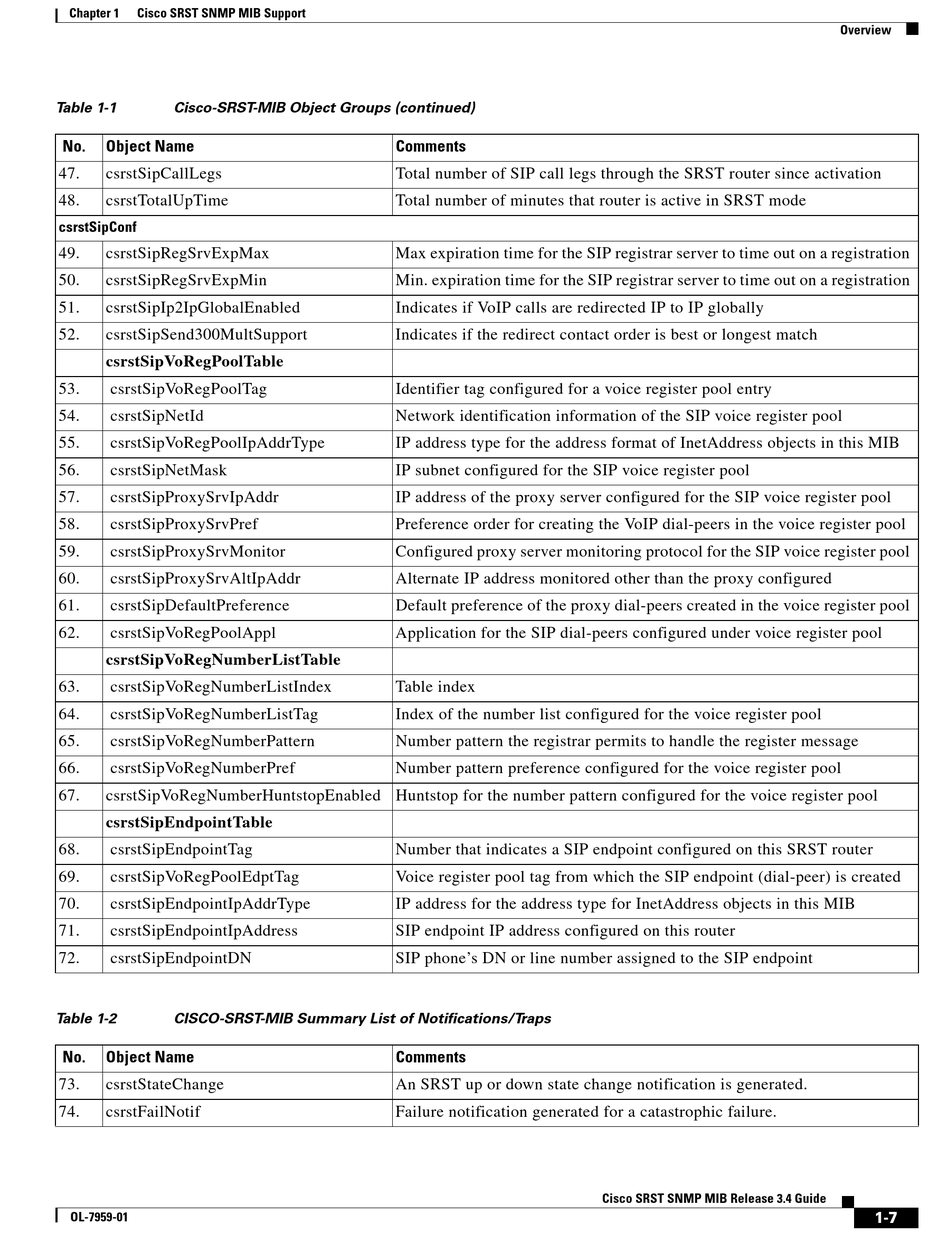

Table 1-1 Cisco-SRST-MIB Object Groups (continued)
No. Object Name
47. csrstSipCallLegs
48. csrstTotalUpTime
csrstSipConf
49. csrstSipRegSrvExpMax
50. csrstSipRegSrvExpMin
51. csrstSipIp2IpGlobalEnabled
52. csrstSipSend300MultSupport
csrstSipVoRegPoolTable
53. csrstSipVoRegPoolTag
54. csrstSipNetId
55. csrstSipVoRegPoolIpAddrType
56. csrstSipNetMask
57. csrstSipProxySrvIpAddr
58. csrstSipProxySrvPref
59. csrstSipProxySrvMonitor
60. csrstSipProxySrvAltIpAddr
61. csrstSipDefaultPreference
62. csrstSipVoRegPoolAppl
csrstSipVoRegNumberListTable
63. csrstSipVoRegNumberListIndex
64. csrstSipVoRegNumberListTag
65. csrstSipVoRegNumberPattern
66. csrstSipVoRegNumberPref
67. csrstSipVoRegNumberHuntstopEnabled Huntstop for the number pattern configured for the voice register pool
csrstSipEndpointTable
68. csrstSipEndpointTag
69. csrstSipVoRegPoolEdptTag
70. csrstSipEndpointIpAddrType
71. csrstSipEndpointIpAddress
72. csrstSipEndpointDN
Table 1-2 CISCO-SRST-MIB Summary List of Notifications/Traps
No. Object Name
73. csrstStateChange
74. csrstFailNotif
OL-7959-01
Comments
Total number of SIP call legs through the SRST router since activation
Total number of minutes that router is active in SRST mode
Max expiration time for the SIP registrar server to time out on a registration
Min. expiration time for the SIP registrar server to time out on a registration
Indicates if VoIP calls are redirected IP to IP globally
Indicates if the redirect contact order is best or longest match
Identifier tag configured for a voice register pool entry
Network identification information of the SIP voice register pool
IP address type for the address format of InetAddress objects in this MIB
IP subnet configured for the SIP voice register pool
IP address of the proxy server configured for the SIP voice register pool
Preference order for creating the VoIP dial-peers in the voice register pool
Configured proxy server monitoring protocol for the SIP voice register pool
Alternate IP address monitored other than the proxy configured
Default preference of the proxy dial-peers created in the voice register pool
Application for the SIP dial-peers configured under voice register pool
Table index
Index of the number list configured for the voice register pool
Number pattern the registrar permits to handle the register message
Number pattern preference configured for the voice register pool
Number that indicates a SIP endpoint configured on this SRST router
Voice register pool tag from which the SIP endpoint (dial-peer) is created
IP address for the address type for InetAddress objects in this MIB
SIP endpoint IP address configured on this router
SIP phone's DN or line number assigned to the SIP endpoint
Comments
An SRST up or down state change notification is generated.
Failure notification generated for a catastrophic failure.
Cisco SRST SNMP MIB Release 3.4 Guide
Overview
1-7
