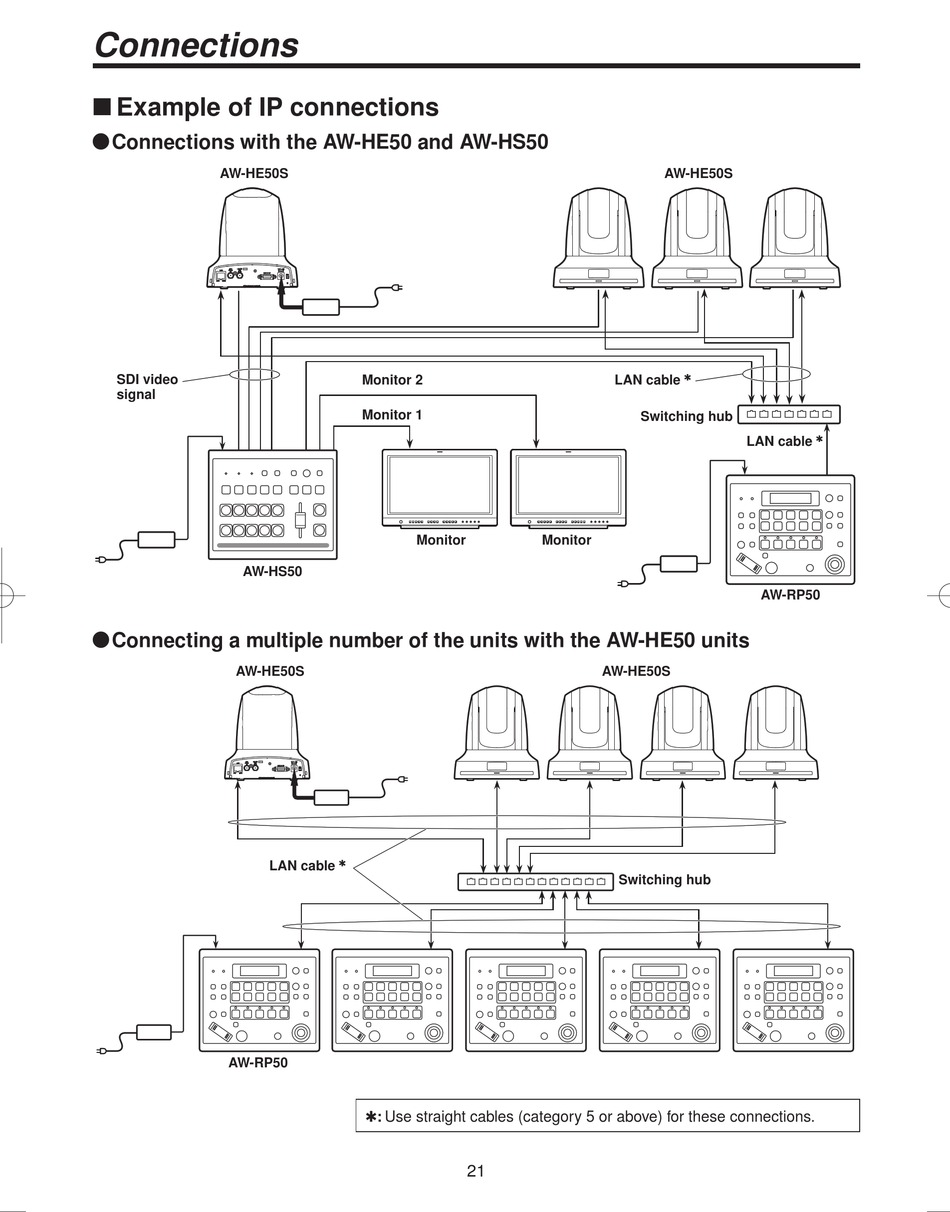

Connections
Example of IP connections
Connections with the AW-HE50 and AW-HS50
AW-HE50S
SDI video
signal
AW-HS50
Connecting a multiple number of the units with the AW-HE50 units
AW-HE50S
AW-RP50
Monitor 2
Monitor 1
Monitor
LAN cable
: Use straight cables (category 5 or above) for these connections.
LAN cable
Monitor
AW-HE50S
Switching hub
21
AW-HE50S
Switching hub
LAN cable
AW-RP50
