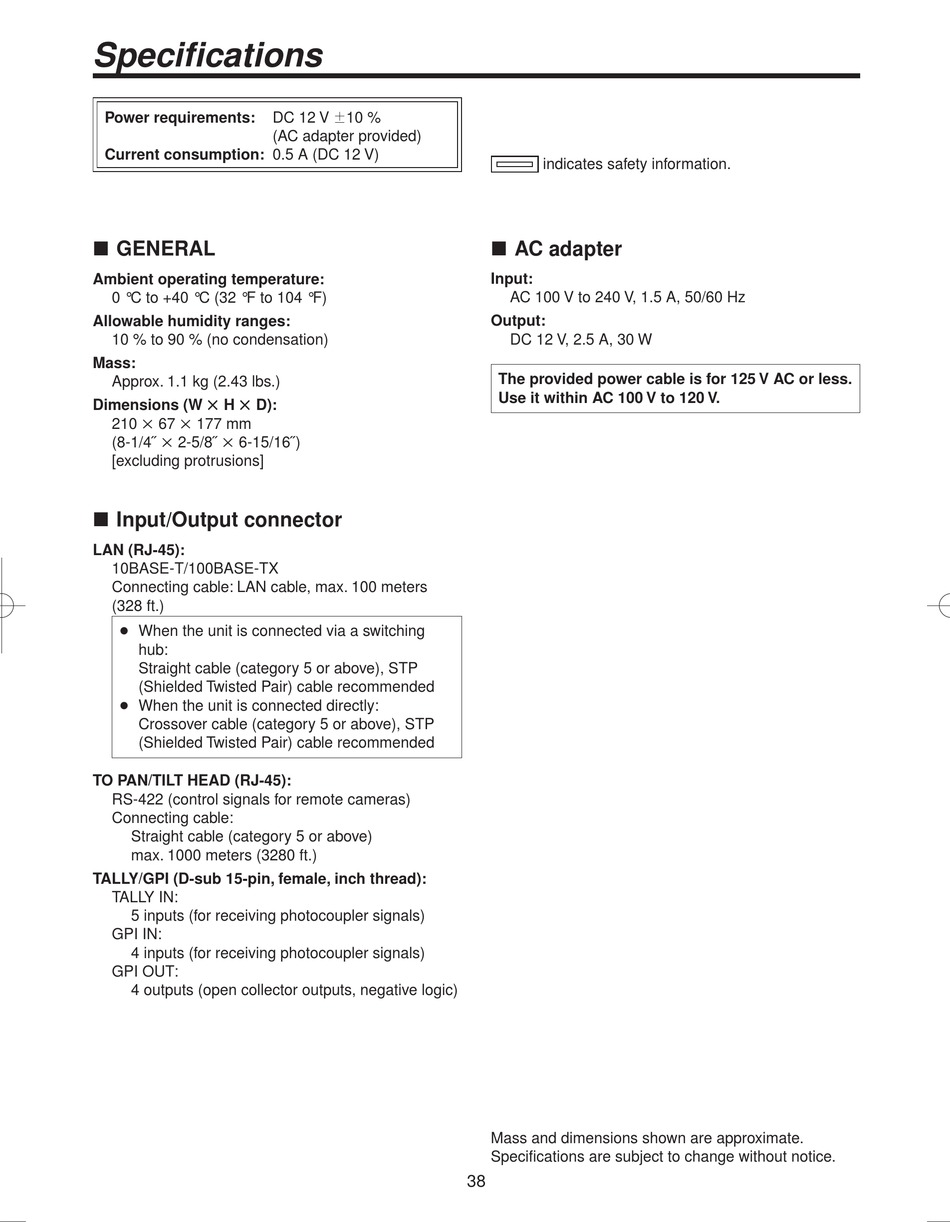

Specifications

Power requirements:
Current consumption: 0.5 A (DC 12 V)
 GENERAL 
Ambient operating temperature:
0 °C to +40 °C (32 °F to 104 °F)
Allowable humidity ranges:
10 % to 90 % (no condensation)
Mass:
Approx. 1.1 kg (2.43 lbs.)
Dimensions (W  H  D):
210  67  177 mm
(8-1/4˝  2-5/8˝  6-15/16˝)
[excluding protrusions]
 Input/Output connector 
LAN (RJ-45):
10BASE-T/100BASE-TX
Connecting cable: LAN cable, max. 100 meters
(328 ft.)
  When the unit is connected via a switching
hub:
Straight cable (category 5 or above), STP
(Shielded Twisted Pair) cable recommended
  When the unit is connected directly:
Crossover cable (category 5 or above), STP
(Shielded Twisted Pair) cable recommended
TO PAN/TILT HEAD (RJ-45):
RS-422 (control signals for remote cameras)
Connecting cable:
Straight cable (category 5 or above)
max. 1000 meters (3280 ft.)
TALLY/GPI (D-sub 15-pin, female, inch thread):
TALLY IN:
5 inputs (for receiving photocoupler signals)
GPI IN:
4 inputs (for receiving photocoupler signals)
GPI OUT:
4 outputs (open collector outputs, negative logic)
DC 12 V 10 %
(AC adapter provided)
indicates safety information.
 AC adapter 
Input:
AC 100 V to 240 V, 1.5 A, 50/60 Hz
Output:
DC 12 V, 2.5 A, 30 W
The provided power cable is for 125 V AC or less.
Use it within AC 100 V to 120 V.
Mass and dimensions shown are approximate.
Specifications are subject to change without notice.
38
