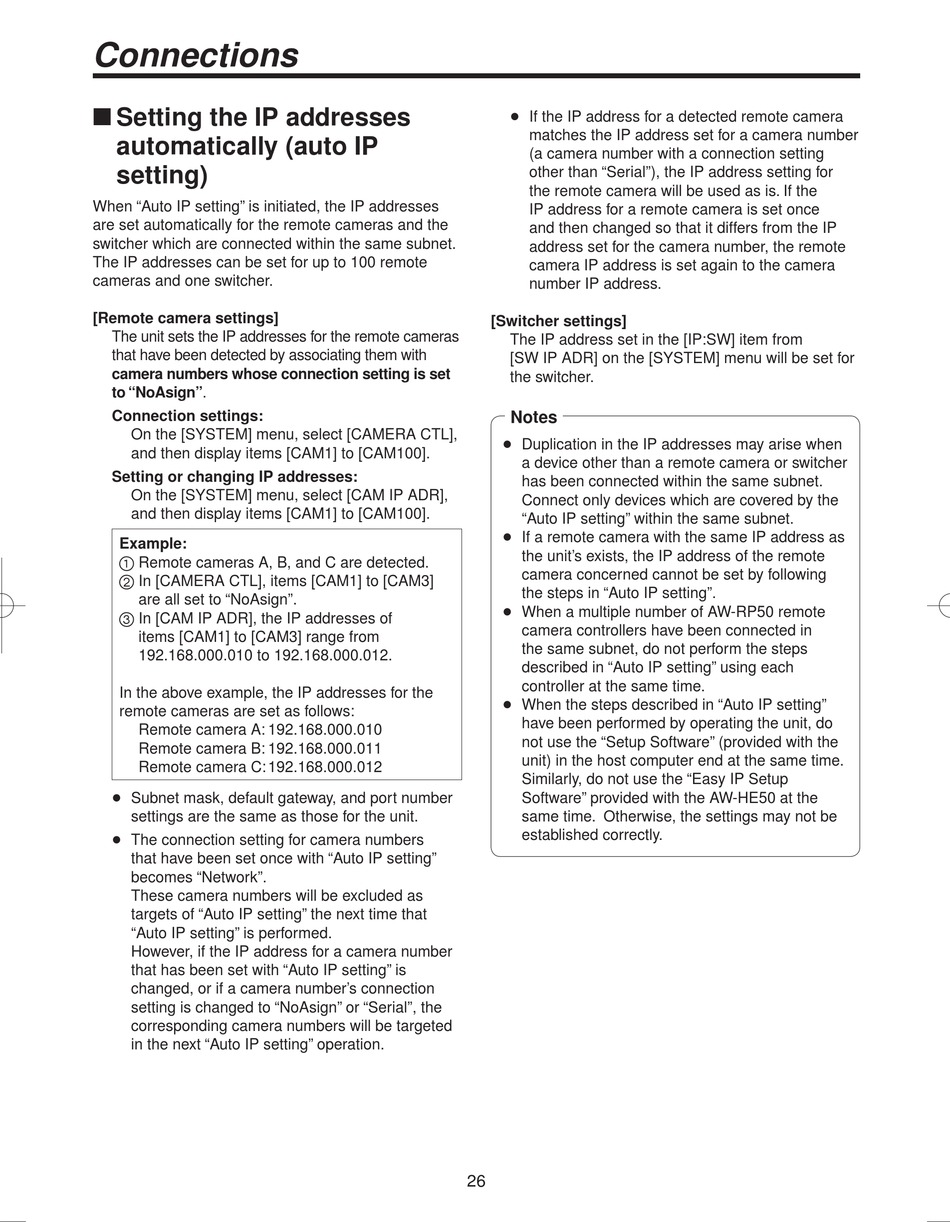

Connections
 Setting the IP addresses 
automatically (auto IP
setting)
When "Auto IP setting" is initiated, the IP addresses
are set automatically for the remote cameras and the
switcher which are connected within the same subnet.
The IP addresses can be set for up to 100 remote
cameras and one switcher.
[Remote camera settings]
The unit sets the IP addresses for the remote cameras
that have been detected by associating them with
camera numbers whose connection setting is set
to "NoAsign".
Connection settings:
On the [SYSTEM] menu, select [CAMERA CTL],
and then display items [CAM1] to [CAM100].
Setting or changing IP addresses:
On the [SYSTEM] menu, select [CAM IP ADR],
and then display items [CAM1] to [CAM100].
Example:
 Remote cameras A, B, and C are detected.
 In [CAMERA CTL], items [CAM1] to [CAM3]
are all set to "NoAsign".
 In [CAM IP ADR], the IP addresses of
items [CAM1] to [CAM3] range from
192.168.000.010 to 192.168.000.012.
In the above example, the IP addresses for the
remote cameras are set as follows:
Remote camera A: 192.168.000.010
Remote camera B: 192.168.000.011
Remote camera C: 192.168.000.012
 Subnet mask, default gateway, and port number
settings are the same as those for the unit.
 The connection setting for camera numbers
that have been set once with "Auto IP setting"
becomes "Network".
These camera numbers will be excluded as
targets of "Auto IP setting" the next time that
"Auto IP setting" is performed.
However, if the IP address for a camera number
that has been set with "Auto IP setting" is
changed, or if a camera number's connection
setting is changed to "NoAsign" or "Serial", the
corresponding camera numbers will be targeted
in the next "Auto IP setting" operation.
 If the IP address for a detected remote camera
matches the IP address set for a camera number
(a camera number with a connection setting
other than "Serial"), the IP address setting for
the remote camera will be used as is. If the
IP address for a remote camera is set once
and then changed so that it differs from the IP
address set for the camera number, the remote
camera IP address is set again to the camera
number IP address.
[Switcher settings]
The IP address set in the [IP:SW] item from
[SW IP ADR] on the [SYSTEM] menu will be set for
the switcher.
Notes
  Duplication in the IP addresses may arise when
a device other than a remote camera or switcher
has been connected within the same subnet.
Connect only devices which are covered by the
"Auto IP setting" within the same subnet.
  If a remote camera with the same IP address as
the unit's exists, the IP address of the remote
camera concerned cannot be set by following
the steps in "Auto IP setting".
  When a multiple number of AW-RP50 remote
camera controllers have been connected in
the same subnet, do not perform the steps
described in "Auto IP setting" using each
controller at the same time.
  When the steps described in "Auto IP setting"
have been performed by operating the unit, do
not use the "Setup Software" (provided with the
unit) in the host computer end at the same time.
Similarly, do not use the "Easy IP Setup
Software" provided with the AW-HE50 at the
same time. Otherwise, the settings may not be
established correctly.
26
