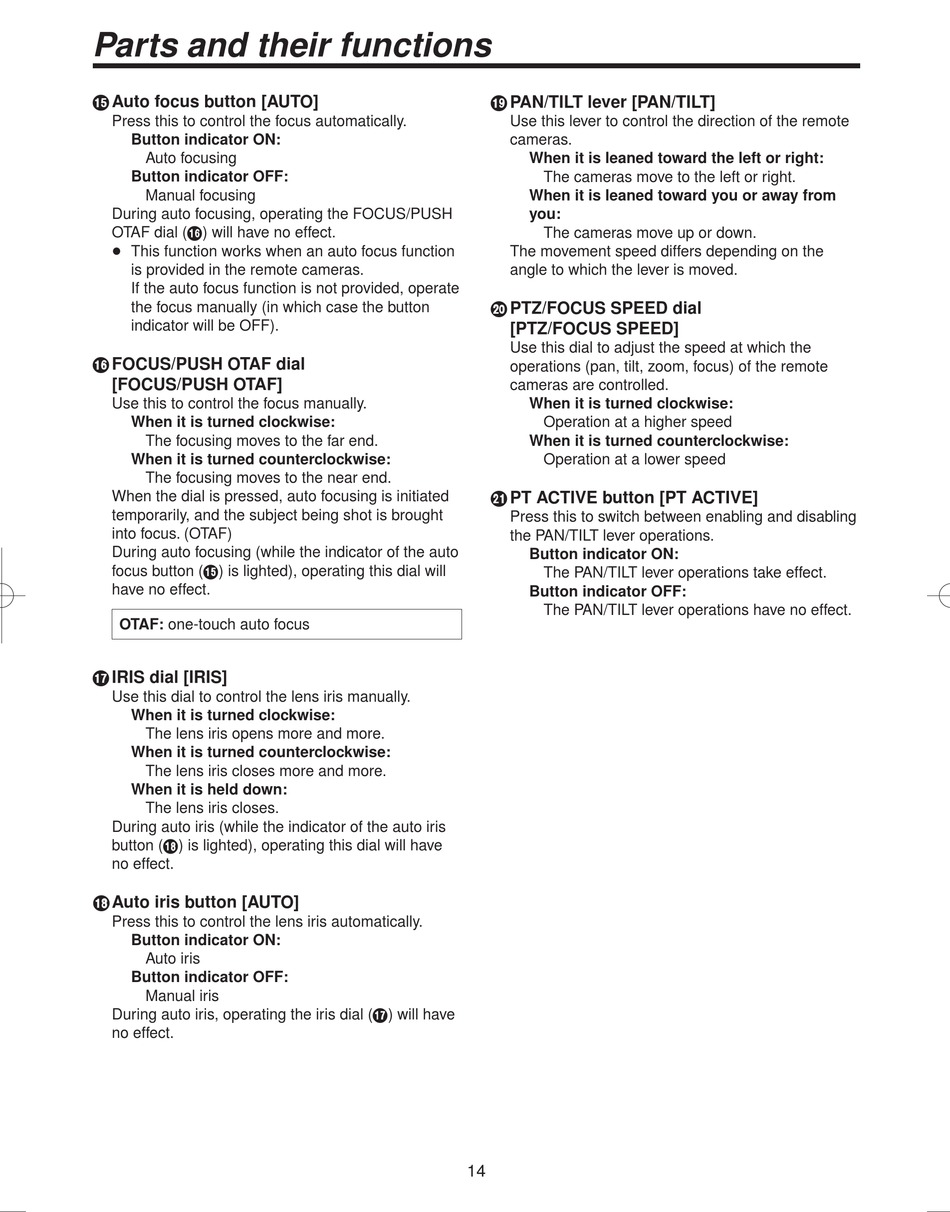

Parts and their functions
 Auto focus button [AUTO]
Press this to control the focus automatically.
Button indicator ON:
Auto focusing
Button indicator OFF:
Manual focusing
During auto focusing, operating the FOCUS/PUSH
OTAF dial () will have no effect.
 This function works when an auto focus function
is provided in the remote cameras.
If the auto focus function is not provided, operate
the focus manually (in which case the button
indicator will be OFF).
 FOCUS/PUSH OTAF dial
[FOCUS/PUSH OTAF]
Use this to control the focus manually.
When it is turned clockwise:
The focusing moves to the far end.
When it is turned counterclockwise:
The focusing moves to the near end.
When the dial is pressed, auto focusing is initiated
temporarily, and the subject being shot is brought
into focus. (OTAF)
During auto focusing (while the indicator of the auto
focus button () is lighted), operating this dial will
have no effect.
OTAF: one-touch auto focus
 IRIS dial [IRIS]
Use this dial to control the lens iris manually.
When it is turned clockwise:
The lens iris opens more and more.
When it is turned counterclockwise:
The lens iris closes more and more.
When it is held down:
The lens iris closes.
During auto iris (while the indicator of the auto iris
button () is lighted), operating this dial will have
no effect.
 Auto iris button [AUTO]
Press this to control the lens iris automatically.
Button indicator ON:
Auto iris
Button indicator OFF:
Manual iris
During auto iris, operating the iris dial () will have
no effect.
 PAN/TILT lever [PAN/TILT]
Use this lever to control the direction of the remote
cameras.
When it is leaned toward the left or right:
The cameras move to the left or right.
When it is leaned toward you or away from
you:
The cameras move up or down.
The movement speed differs depending on the
angle to which the lever is moved.
 PTZ/FOCUS SPEED dial
[PTZ/FOCUS SPEED]
Use this dial to adjust the speed at which the
operations (pan, tilt, zoom, focus) of the remote
cameras are controlled.
When it is turned clockwise:
Operation at a higher speed
When it is turned counterclockwise:
Operation at a lower speed
 PT ACTIVE button [PT ACTIVE]
Press this to switch between enabling and disabling
the PAN/TILT lever operations.
Button indicator ON:
The PAN/TILT lever operations take effect.
Button indicator OFF:
The PAN/TILT lever operations have no effect.
14
