Connections

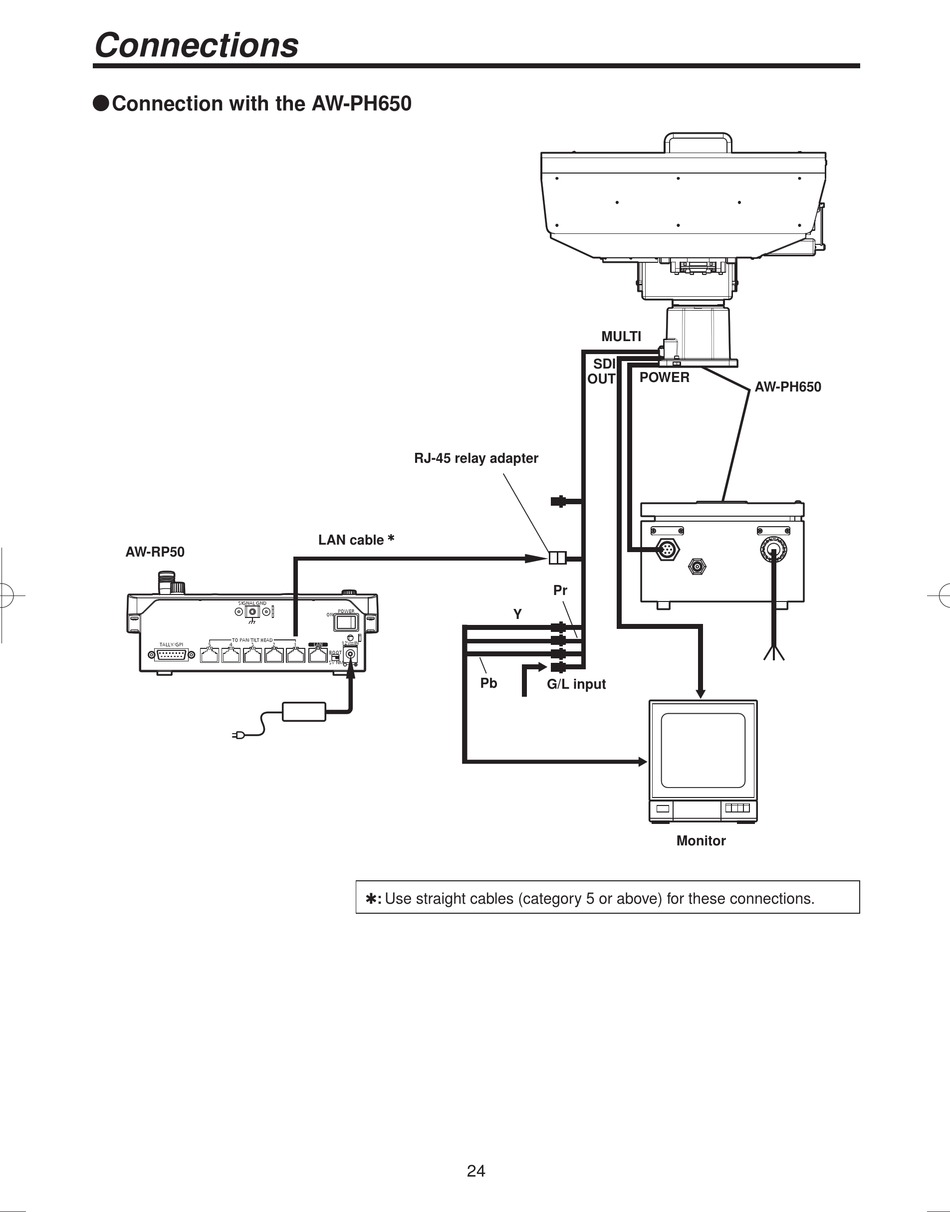

 Connection with the AW-PH650 
MULTI
SDI
POWER
OUT
AW-PH650
RJ-45 relay adapter

LAN cable
AW-RP50
Pr
SIGNAL GND
POWER Y
ON
TO PAN/TILT HEAD
12V IN
5 4 3 2 1 LAN
TALLY/GPI
BOOT
SV NM
Pb
G/L input
Monitor
: Use straight cables (category 5 or above) for these connections.
