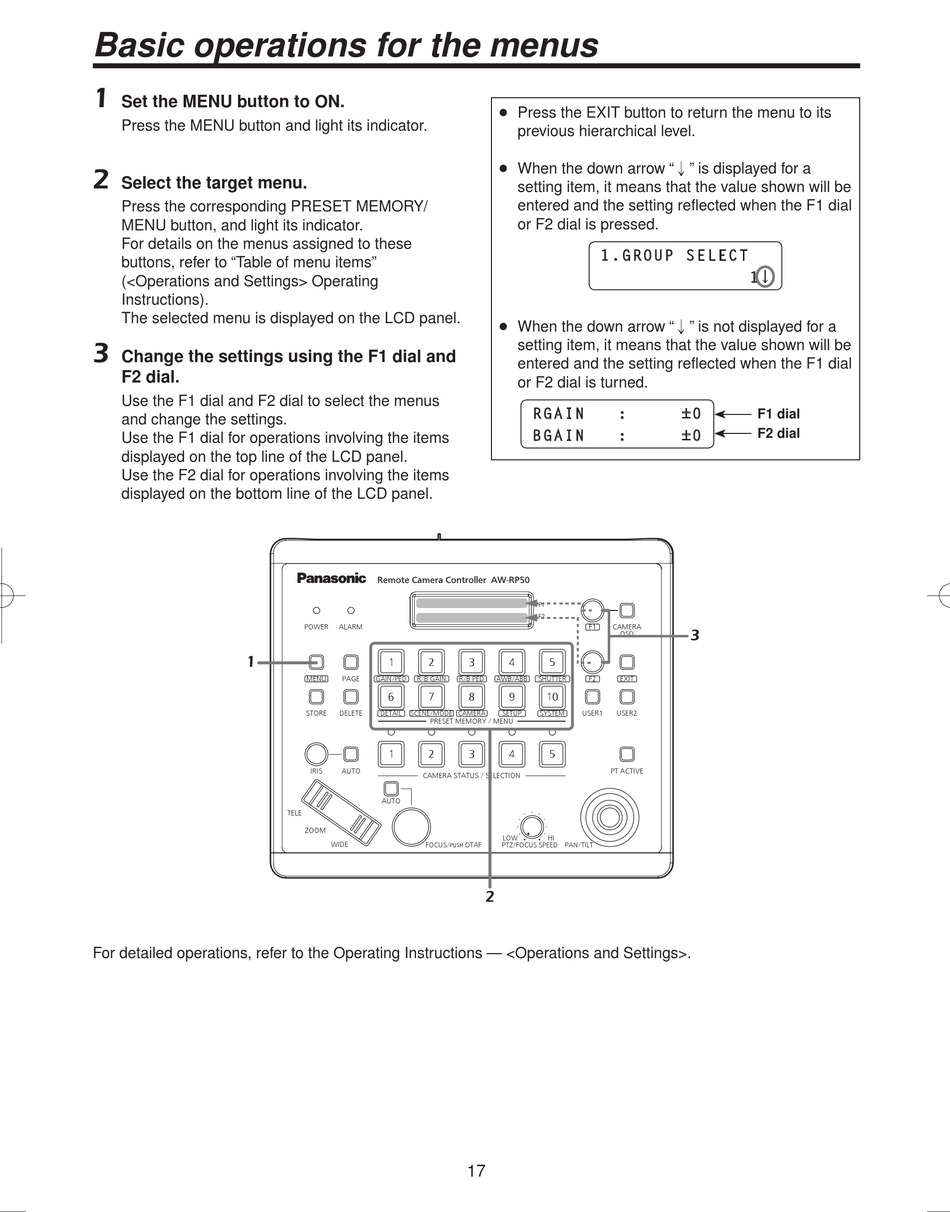

Basic operations for the menus

1
Set the MENU button to ON.
Press the MENU button and light its indicator.
2
Select the target menu.
Press the corresponding PRESET MEMORY/
MENU button, and light its indicator.
For details on the menus assigned to these
buttons, refer to "Table of menu items"
(<Operations and Settings> Operating
Instructions).
The selected menu is displayed on the LCD panel.
3
Change the settings using the F1 dial and
F2 dial.
Use the F1 dial and F2 dial to select the menus
and change the settings.
Use the F1 dial for operations involving the items
displayed on the top line of the LCD panel.
Use the F2 dial for operations involving the items
displayed on the bottom line of the LCD panel.
For detailed operations, refer to the Operating Instructions — <Operations and Settings>.
POWER ALARM
1
1
MENU PAGE GAIN/PED
6
STORE DELETE DETAIL
1
IRIS AUTO
AUTO
TELE
ZOOM
WIDE
  Press the EXIT button to return the menu to its
previous hierarchical level.
  When the down arrow "" is displayed for a
setting item, it means that the value shown will be
entered and the setting reflected when the F1 dial
or F2 dial is pressed.
  When the down arrow "" is not displayed for a
setting item, it means that the value shown will be
entered and the setting reflected when the F1 dial
or F2 dial is turned.
RG A I N
BG A I N
F1
F2
2 3 4 5
R/B GAIN R/B PED AWB/ABB SHUTTER
7 8 9 10
SCENE/MODE CAMERA SETUP SYSTEM
PRESET MEMORY / MENU
2 3 4 5
CAMERA STATUS / SELECTION
LOW HI
FOCUS/ OTAF PTZ/FOCUS SPEED
PUSH
2
17
1 . G RO U P S E L EC T
: ± 0
: ± 0
F1 CAMERA
3
OSD
F2 EXIT
USER1 USER2
PT ACTIVE
PAN/TILT
1
F1 dial
F2 dial
