Field Controls 46334200 Instruction Sheet page 7

SWG-4B BARD SIDEWALL POWER VENTING KIT
Kit Includes:
SWGII-4HD Sidewall Power Venter
CK-43F Control Kit
Includes:
For Use With The Following Bard Standard Furnaces:
Upflow
IH60D36 (A,B)
IH85D48 (A,B,D)
IH115D48 (A,B)
IH115D60A
IH145D60A
Unit Selection Table:
Furnace Input
Btu/Hr
58,000
86,000
115,000
145,000
* Transition should be attached to the furnace vent pipe collar if required.
** 86,000 Btu models with A or B suffix letter have 3" collars.
*** 86,000 Btu models with D suffix have 4" collars and do not require a 3" to 4" transition.

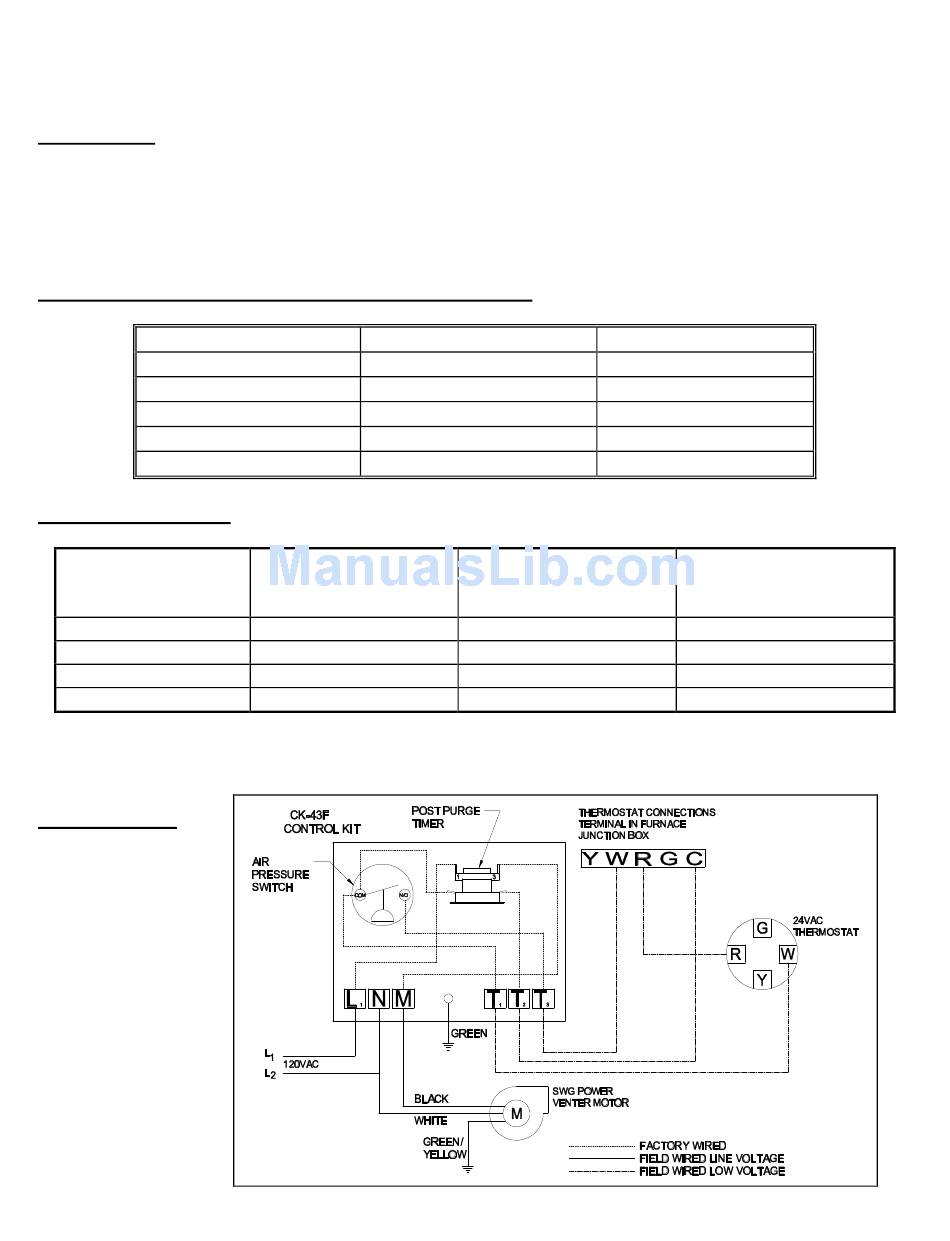

General Wiring
For complete
installation
information refer to
the Field Controls
SWG-4B Power
Venter Installation
Manual for details
(P/N 46332100.)
Field Controls P/N 46205410
4" MG-1 Barometric Draft Control
Fan Proving Switch
Fixed post purge
Downflow
IC60D36A
IC85D42 (A,D)
IC115D48A
Diameter Of Vent
Pipe Collar On
Furnace (In.)
3"
4" **
4"
4"
Page 7
------
------
Installer Provided Flue
Pipe Transition Size*
3"-4"
3"-4" ***
None Required
None Required
Lowboy
------
IL85D42 (A,D)
IL115D48A
------
IL145D60A
Maximum Equivalent
Vent Length (Ft.)
4" Vent Pipe
65
65
65
65
