Field Controls 46334200 Instruction Sheet page 15

Swg sidewall power venting kit

Advertisement

Unit Sizing:
BTU/HR Input
50,000
75,000
100,000
125,000
Maximum Pipe Length - (3) 90° Elbows, 30 feet of vent pipe and reducer or increaser if required.
Minimum Pipe Length - (1) 90° Elbow, 5 feet of vent pipe and a reducer or increaser if required.

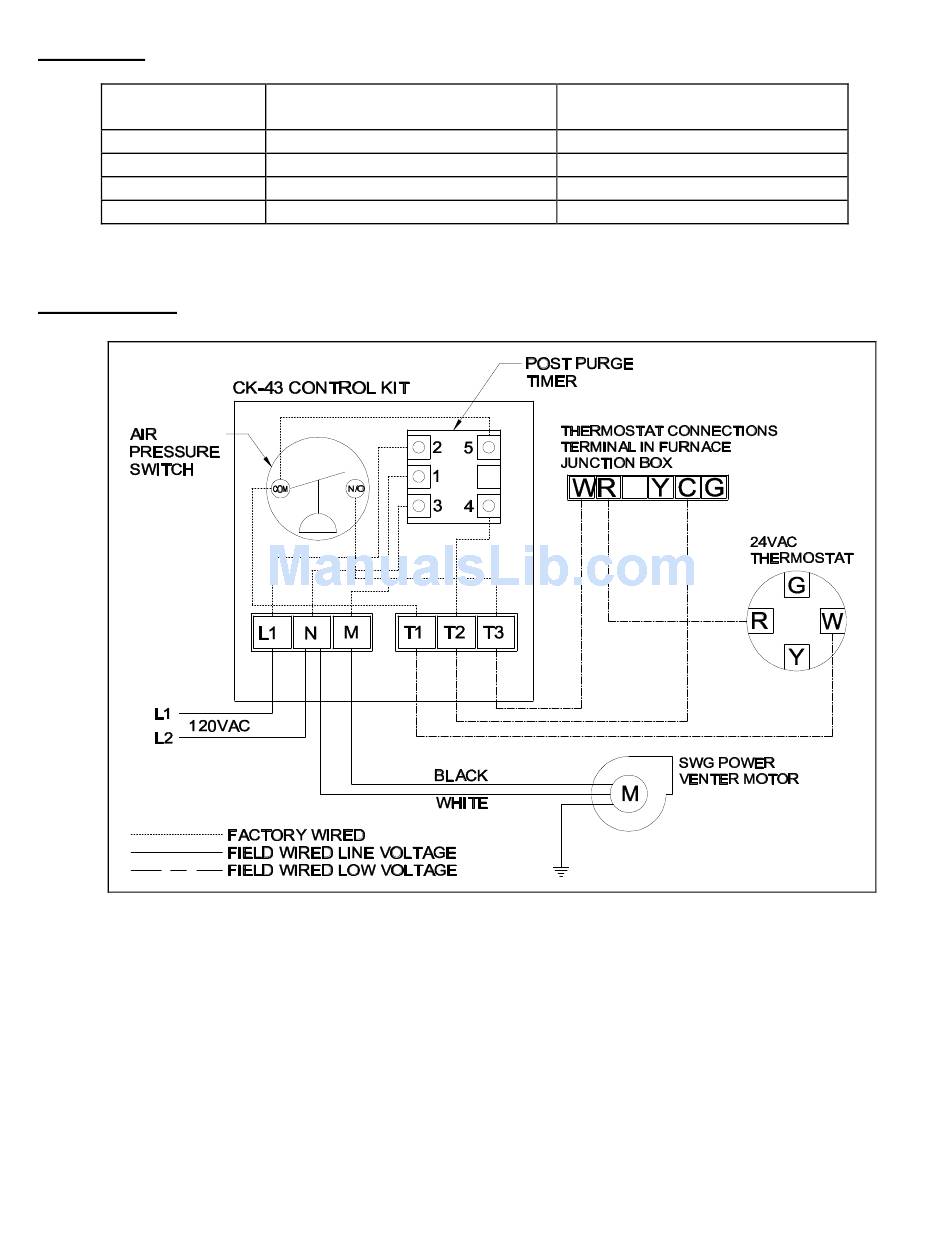

General Wiring
For complete installation information refer to the Field Controls SWG-4IC Power Venter Installation
Manual for details (P/N 46201400.)
Diameter Of Vent Pipe To
Power Venter
3"
4"
4"
4"
Page 15
Flue Pipe Transition Size
Diameter
3" TO 4"
None Required
None Required
None Required
