Summary of Contents for Fanvil PA2

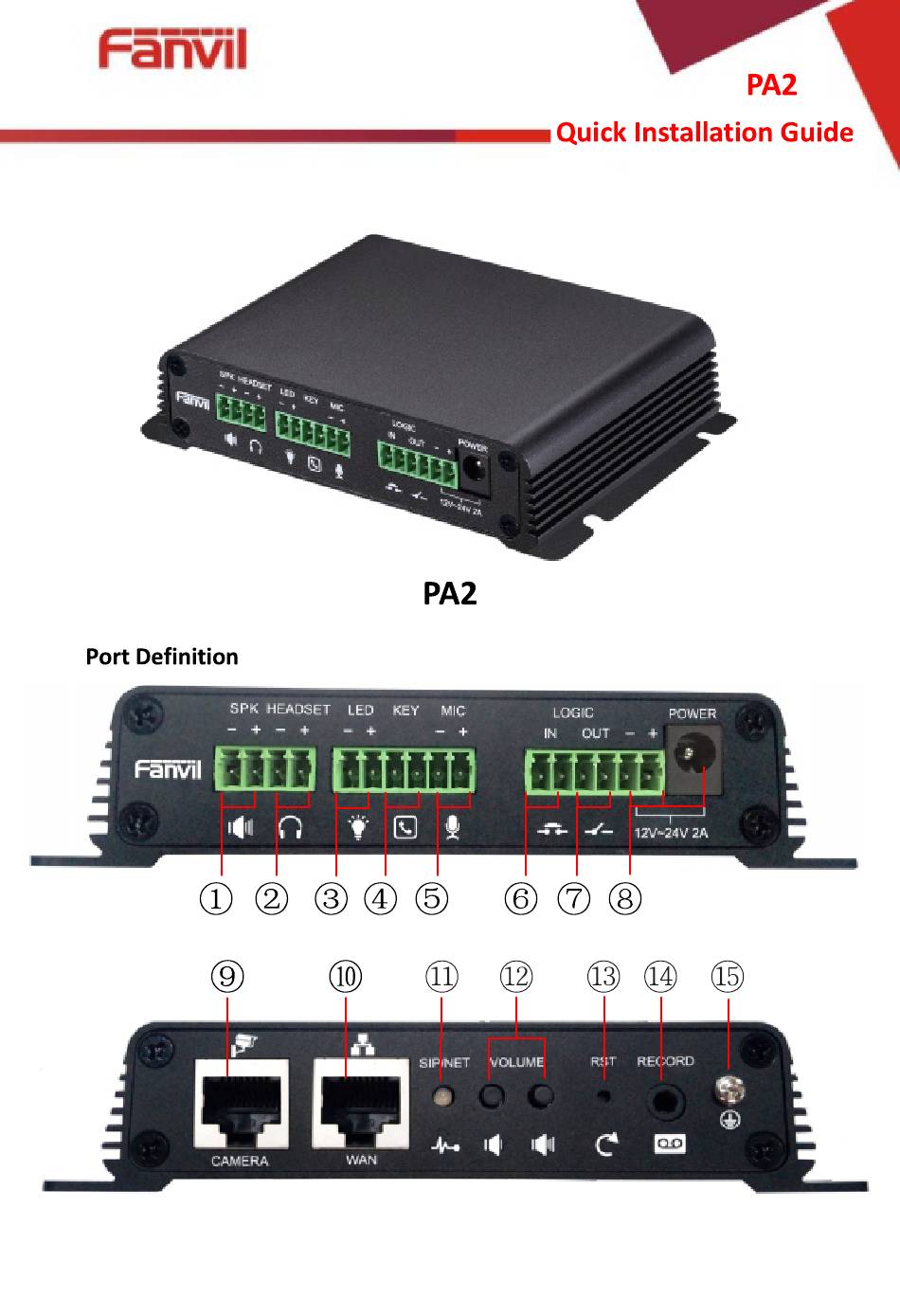

- Page 1 Quick Installation Guide port Definition IN-2zv2A...
- Page 2 Speaker interface: according to the device input vo tage adaptive output maximum power; 40 speaker, POE,/8W, 12V / low, 18V / 20W, 24V / 30W. The greater the horn impedance, the smaller the output power. Suggested wire diameter: 18AWG or larger diameter. Headset interface: speaker audio signal output, for external headset or active speakers.
- Page 3 Installation The first step: the equipment with metal strips (user-owned) fixed in the installation location. The second step: the microphone, Function Key, speakers and other metal shell with grounding screw. And then connect the line of thick wires connected to the device the terminal in turn inserted into the corresponding interface.
- Page 4 3. SIP door phone setting Step I: Log in to the device page Use the web browser input IP (for example: http: //192.168.1.128) access, the default user admin. password admin. Step 2: Add the SIP account. Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters.
- Page 5 Step 3: Set the volume (if not connected can skip) Setthe device volume size, asshown below, click [Apply). Hands-free volume setting: normal call speaker volume size. Broadcast output volume: server music broadcast speaker volume size. Signal volume: call ringing, power back to ling, correct tone, error tone and other volume size.
- Page 6 Information on this document issubject to change without notice. Fanvil makes no warranties with respect to this document, due to misuse this document is caused by indirect or incidental damages, Fanvil does not assume any responsibility. For more product information, please visit www.fanvil.com...
