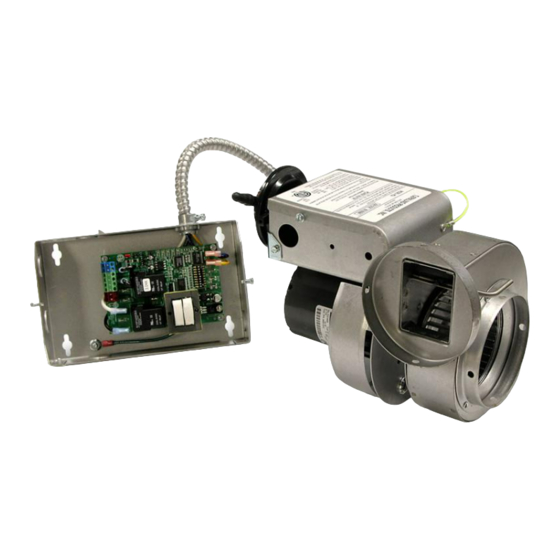

Any non-condensing gas or oil fired heater that
can be vented by natural draft can be Side Wall
Vented with a Tjernlund Power Venter. Power
Venters are available in a variety of capacities and
also packaged for specific applications. All models
feature built-in interlock controls and most have
post-purge operation. Selection is based on type
of fuel, burner type and the BTU/hr. input rating
of the heater(s).
Safety proven Side Wall Venting Systems save time
and money and are an excellent choice for electric-
to-gas conversions, renovations, new construction
and for replacing deteriorated chimneys. Side Wall
Venting saves costly materials and labor on two,
three or more story runs. Install heaters where it
was previously impossible...in most cases up to 100
equivalent feet from an outside wall.
www.tjernlund.com • 800.255.4208
Venting for heating appliances
doesn't have to go through
the roof. Neither does the cost.
Advertisement
Related Manuals for TJERNLUND SIDE WALL VENT SYSTEM REFERENCE GUIDE 8500594 REV C 0805
Summary of Contents for TJERNLUND SIDE WALL VENT SYSTEM REFERENCE GUIDE 8500594 REV C 0805
- Page 1 Any non-condensing gas or oil fired heater that can be vented by natural draft can be Side Wall Vented with a Tjernlund Power Venter. Power Venters are available in a variety of capacities and also packaged for specific applications. All models feature built-in interlock controls and most have post-purge operation.
- Page 2 Models VH1-3, 4 and 6 also have built in clearances from combustibles. Building exteriors are kept clean while the structure’s exterior aesthetics remain undis- turbed. All mounting hardware is included. www.tjernlund.com • 800.255.4208...
- Page 3 NOTE: Termination of a Side Wall Vent System with a device ter through the A - B other than the Tjernlund VH1 Series Hood could affect Dry contacts. The system performance and result in a possible safety hazard.
- Page 4 Natural & LP Gas Natural & LP Gas Feet 70,000 - 168,000* 40,000 - 150,000 BTU/hr 40,000 - 125,000 BTU/hr 1.2 gal/hr. max. *Maximum capacity based on 13% CO and Max. 500 F inlet temperature. Consult factory for details. www.tjernlund.com • 800.255.4208...
-
Page 5: Model Dimensions
VP-2 includes VH1-3 Vent Hood. 14 3/4" 15 1/4" 13" 8" VP-3 includes VH1-4 Vent Hood. 18" 16 1/2" 16 1/2" 10" UC1 Universal Control is 8" x 5" x 2 3/4" and includes a 2' wire whip. www.tjernlund.com • 800.255.4208... - Page 6 Residential and commercial fixed & variable speed capacities up In-Forcer ™ to 6000 CFM available. TJERNLUND PRODUCTS, INC. 1601 Ninth Street White Bear Lake, MN 55110-6794 Phone: 651.426.2993 800.255.4208 Fax: 651.426.9547 Visit our web site: www.tjernlund.com Copyright © 2005 Tjernlund Products, Inc. P/N 8500594 Rev C 8/05...
