Appendix. Product specifications

This appendix contains the following information:
v "Weight and physical dimensions"
v "Environmental requirements"
v "Facility requirements" on page 34
v "System specifications" on page 35
v "Memory specifications" on page 35
v "Data transmission ranges" on page 36
v "Fibre Channel port specifications" on page 36
v "Serial port specifications" on page 36
v "Power supply specifications" on page 36
v "Supported SFPs and HBAs" on page 37

Weight and physical dimensions

Table 9 lists the weight and physical dimensions of the switch.

Environmental requirements

Table 10 lists the acceptable environment for both operating and nonoperating
conditions.
Note: The -10° to 40° Celsius range applies to the ambient air temperature at the
© Copyright IBM Corp. 2008, 2010

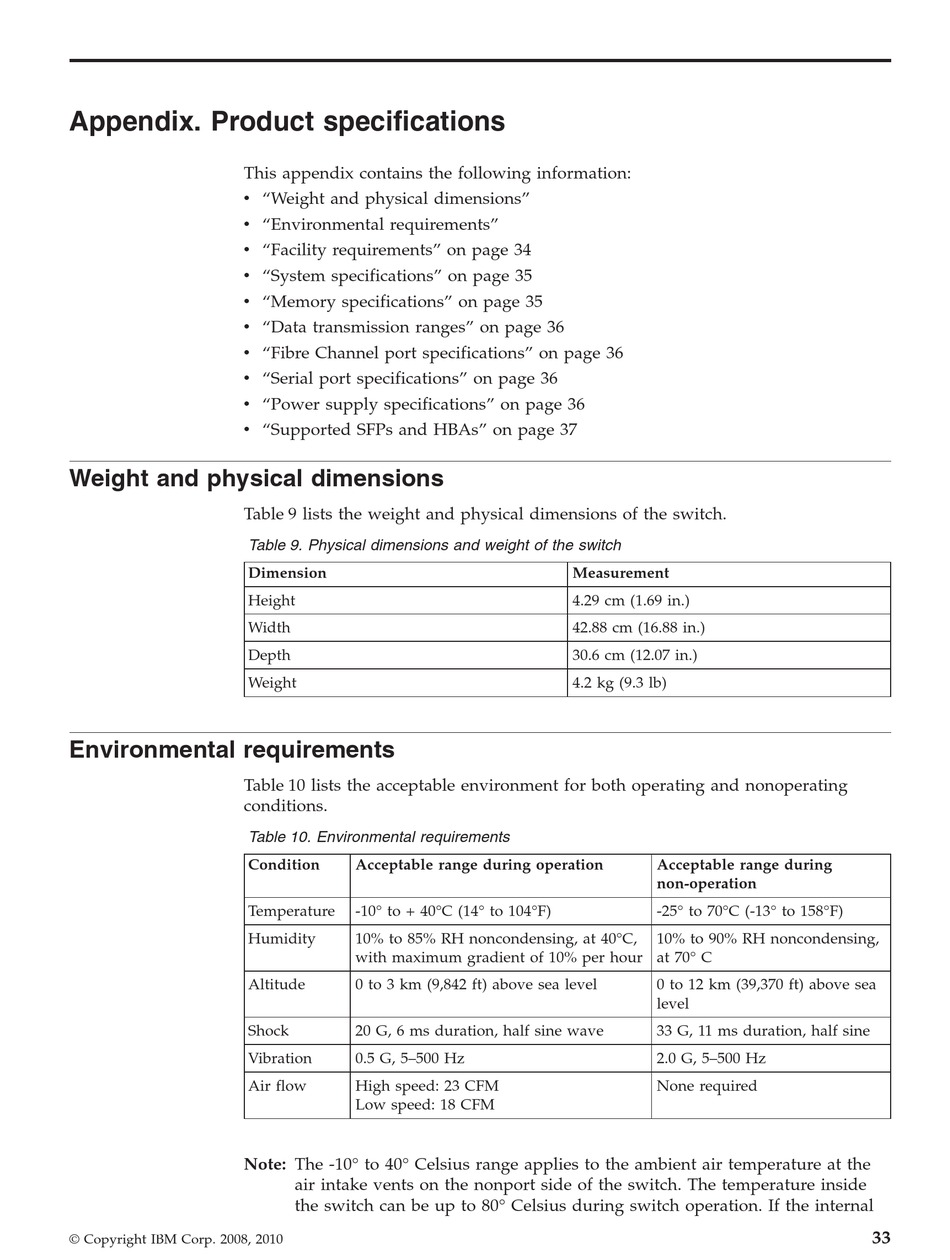

Table 9. Physical dimensions and weight of the switch
Dimension
Height
Width
Depth
Weight
Table 10. Environmental requirements
Condition Acceptable range during operation
Temperature -10° to + 40°C (14° to 104°F)
Humidity 10% to 85% RH noncondensing, at 40°C,
with maximum gradient of 10% per hour
Altitude 0 to 3 km (9,842 ft) above sea level
Shock 20 G, 6 ms duration, half sine wave
Vibration 0.5 G, 5–500 Hz
Air flow High speed: 23 CFM
Low speed: 18 CFM
air intake vents on the nonport side of the switch. The temperature inside
the switch can be up to 80° Celsius during switch operation. If the internal
Measurement
4.29 cm (1.69 in.)
42.88 cm (16.88 in.)
30.6 cm (12.07 in.)
4.2 kg (9.3 lb)
Acceptable range during
non-operation
-25° to 70°C (-13° to 158°F)
10% to 90% RH noncondensing,
at 70° C
0 to 12 km (39,370 ft) above sea
level
33 G, 11 ms duration, half sine
2.0 G, 5–500 Hz
None required
