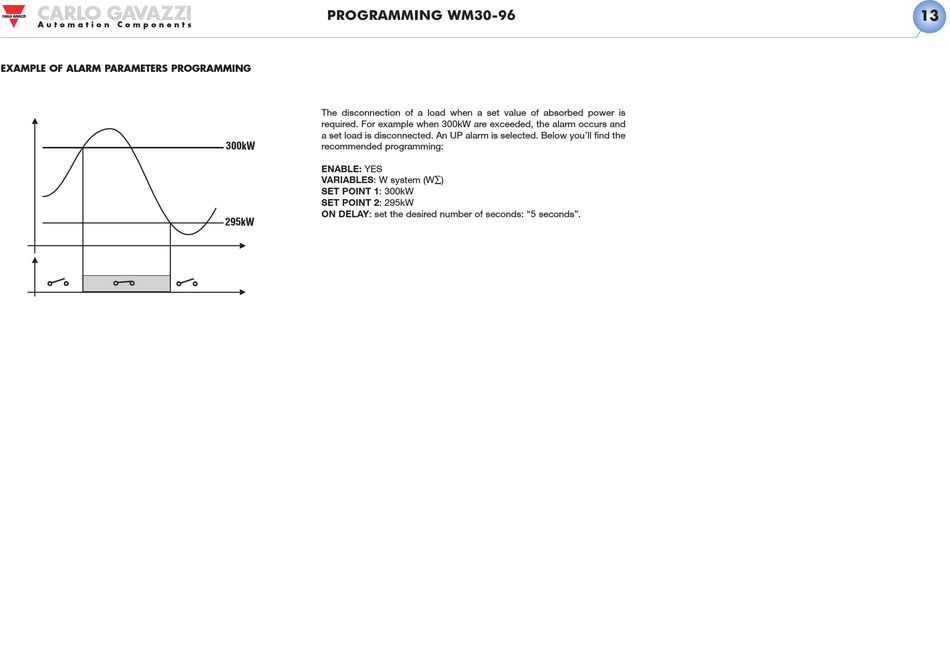

EXAMPLE OF ALARM PARAMETERS PROGRAMMING
PROGRAMMING WM30-96
The disconnection of a load when a set value of absorbed power is
required. For example when 300kW are exceeded, the alarm occurs and
a set load is disconnected. An UP alarm is selected. Below you'll find the
300kW
recommended programming:
ENABLE: YES
VARIABLES: W system (W∑)
SET POINT 1: 300kW
SET POINT 2: 295kW
ON DELAY: set the desired number of seconds: "5 seconds".
295kW
