Summary of Contents for Xtool S1

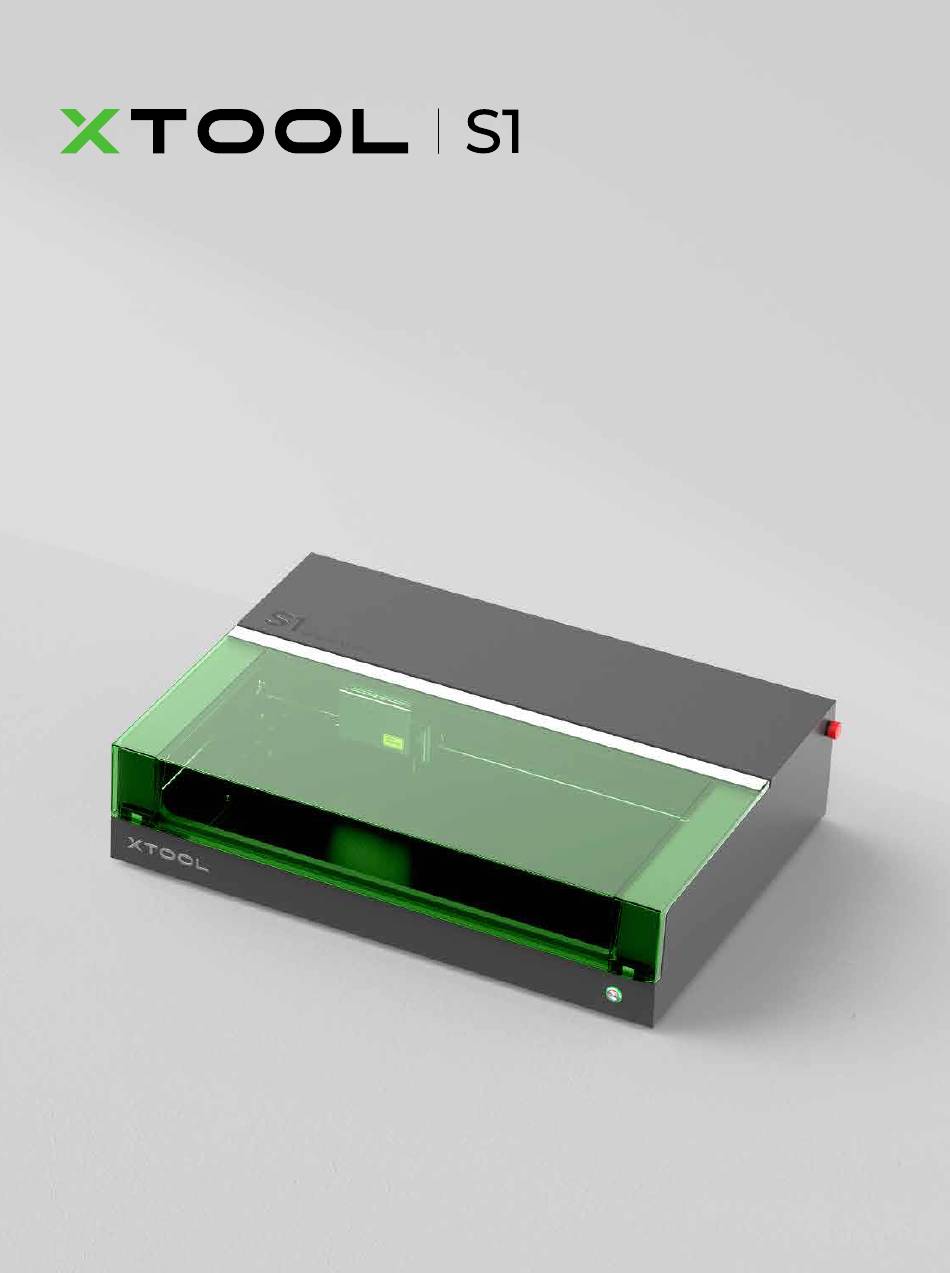

- Page 1 User Manual...
- Page 2 List of items Meet your xTool S1 Use your xTool S1 Use xTool S1 with the air assist set Use xTool S1 with the riser base Use xTool S1 with the honeycomb panel Use xTool S1 with the rotary attachment...
- Page 3 5. Warning and instruction signs the lid is closed during operation and do not tamper with the safety On xTool S1, the warning and instruction signs are labeled where mechanism of the lid. physical injuries or damage to the machine may be caused ■...
- Page 4 List of items xTool S1 x 11 Laser module Screwdriver Screw M3*8 USB cable Distance sensor Smoke exhaust pipe Parts storage box XTOOL SELECTED WITH CREATITY D1.1.3_DPB01001300 Power cable and adapter Material pack Brochure User manual...
- Page 5 The following items are included only in some packs. Honeycomb panel components Air assist set components Air assist set components...
- Page 6 Meet your xTool S1 Emergency stop switch Laser module Distance sensor Baseplate Button Annular indicator Extension port Tube fitting for the air assist set Power switch Power port Smoke outlet USB port Extension port × 3 Port for the key...
- Page 7 Use your xTool S1 Preparations...
- Page 10 After inserting the locating pin, move it down to lock it in the slot.
- Page 12 Do not leave the fan exposed. Laser beams may leak out, and your hands may get hurt when touching the fan. M3*8 ×4 M3*8 ×4...
- Page 14 Ensure that the emergency stop switch is not pressed.
- Page 15 Download and install xTool Creative Space (XCS) or the third-party software Lightburn. xTool Creative Space xtool.com/software lightburnsoftware.com You need to purchase Lightburn before using it. Turn on xTool S1, connect it to a PC, and then connect it on the software. Connect device xtool.com/software...
- Page 16 Turn on xTool S1. Follow the instructions on XCS to connect xTool S1. Connect device You can start your creation after connecting xTool S1 to the software. For details about how to use the software to operate xTool S1 for material processing, visit support.xtool.com.
- Page 17 S1 to view example projects and tutorials. xTool S1 is delivered with a material pack that allows you to start your creation. Emergency stop If an emergency occurs, you can press the emergency stop switch to shut off the machine.
- Page 18 After dealing with the emergency, you can turn the emergency stop switch to reset it. Operation access control You can insert the key to unlock the processing and related functions. To prevent others from using your machine, you can remove the key to lock the processing and related functions.
- Page 19 Use xTool S1 with the air assist set If the pack you purchase does not include the air assist set, you need to purchase one before using it. The air assist set will be powered by xTool S1.
- Page 20 Airflow adjustment The airflow increases from 1 to MAX. You are advised to use a small airflow for engraving and a large airflow for cutting. Powered off The airflow is automatically adjusted by XCS. Replace the filter...
- Page 21 If the pack you purchase does not include the air assist set, you need to purchase one before using it.
- Page 22 Replace the filter...
- Page 23 Do not use the filter if it is moistened.
- Page 24 Use xTool S1 with the riser base If the pack you purchase does not include the riser base, you need to purchase one before using it. If you do not need to use the riser base, do not place the machine on it. The riser base will block the air inlet of the machine (with the baseplate in place).
- Page 25 M3*14 ×14...
- Page 26 M3*14 ×6...
- Page 27 Place the side with the "xTool" logo as the rear side.
- Page 28 M3*14 ×6...
- Page 29 Use xTool S1 with the honeycomb panel If the pack you purchase does not include the honeycomb panel, you need to purchase one before using it. For laser cutting, the honeycomb panel can reduce the areas burned during material processing and protect the baseplate.
- Page 30 Move the honeycomb panel to the right.
- Page 31 � mm ＜ H ≤ �� mm Move the honeycomb panel to the right.
- Page 32 �� mm ≤ H ≤ �� mm Move the honeycomb panel to the right.
- Page 33 Use xTool S1 with the rotary attachment The rotary attachment needs to be used together with the riser base on xTool S1. If the pack you purchase does not include the rotary attachment or riser base, you need to purchase them before using them.
- Page 34 Buzzing for 3 seconds Exceptions occur on Wi-Fi Blinking red communication Flame detected Short press to stop the warning Keeping buzzing Blinking red After-sales services For technical support, contact us at support@xtool.com. For more information about after-sales services, visit support.xtool.com.
- Page 35 Before the problem is solved, you can measure the distance manually. For more information on how to Nozzle measure the distance, see support.xtool.com. Without the air assist set, you are advised to clean the laser module at the following frequencies: ■...
- Page 36 The Company is committed to continuously improving the product and related materials. The product and the Manual are subject to change, and updates can be found at xtool.com. DECLARATION OF CONFORMITY Hereby, Makeblock Co., Ltd., declares that this product is in...
- Page 37 Dear xTooler: Thank you for choosing xTool S1. We are so grateful for your recognition, and sincerely hope you will enjoy it! xTool S1 is an easy-to-use powerful laser cutter and engraver with high processing speed and accuracy, supporting accurate coordinates-based positioning, automatic focus, and curved surface engraving.
