Summary of Contents for Xtool S1
- Page 1 Quick Start Guide...
-
Page 2: Table Of Contents

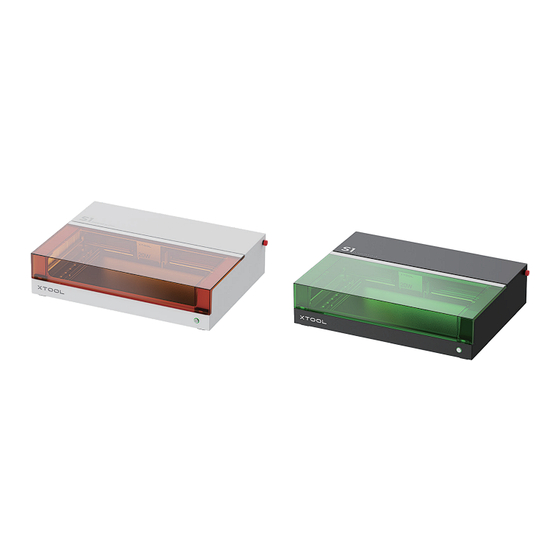

S1 provides two color options. This quick start guide uses the black-green version for illustration. List of items Meet your xTool S1 Preparations Use your xTool S1 Example projects Understand the annular indicator Knowledge about parts and accessories... -
Page 3: List Of Items
Istruzioni di sicurezza Veiligheidsinstructies Instruções 安全上のご注意 안전�지침 安全說明 安全说明 de segurança Power cable and adapter Material pack Quick Start Safety Brochure Guide Instructions Meet your xTool S1 Emergency stop switch Laser module Baseplate Distance sensor Extension port Button Annular indicator... -
Page 4: Preparations
Power switch Tube fitting for the air assist set Power port USB port Tube fitting for the fire safety set Extension port × 3 Port for the key Smoke outlet Preparations Get the following tools ready: Included in the pack Not included in the pack Remove the blocks that fix the x-axis guide rail... - Page 5 Install the laser module M3*10 After inserting the locating pin, move it down.
- Page 6 Install the distance sensor...
- Page 7 Install the smoke exhaust pipe Harmful smoke and fumes may be produced during laser processing. Therefore, you are advised to install the smoke exhaust pipe and connect it to a purifier or inline duct fan or place the outlet outside through a window. You can put the cover away after removing it.
- Page 8 Insert the key Check and ensure that the emergency stop switch is not pressed Connect to a power supply...
-
Page 9: Use Your Xtool S1
Creative Space lightburnsoftware.com https://www.xtool.com/pages/software For details about how to use the software to operate xTool S1 for material processing, scan the QR code or visit https://support.xtool.com/product/24. For mobile devices Scan the QR code or search for xTool Creative Space in Google Play or App Store, or visit https://www.xtool.com/pages/software... -
Page 10: Example Projects
Scan the QR code to find example projects and tutorials. https://support.xtool.com/product/24 and go to Try Some Projects to view Alternatively, you can visit example projects and tutorials. xTool S1 is delivered with a material pack that allows you to https://support.xtool.com/article/1328 start your creation. -
Page 11: Knowledge About Parts And Accessories
Knowledge about parts and accessories Access-control key For laser machines, the key is a physical security device used to control processing access. You need to insert it into the machine to unlock the processing and related functions. You can remove it to prevent others from using the machine without your consent. - Page 12 For better processing results, you are advised to use an air assist set. You can go to https://www.xtool.com/ to purchase one.
- Page 13 Lens protector Laser processing often produces a large amount of smoke, which may cause the lens protector to get dirty or block the nozzle. If you do not clean the laser module in a timely manner, the laser power may be reduced and the laser module may be damaged.
