Behringer VINTAGE TUBE OVERDRIVE TO800 Manual

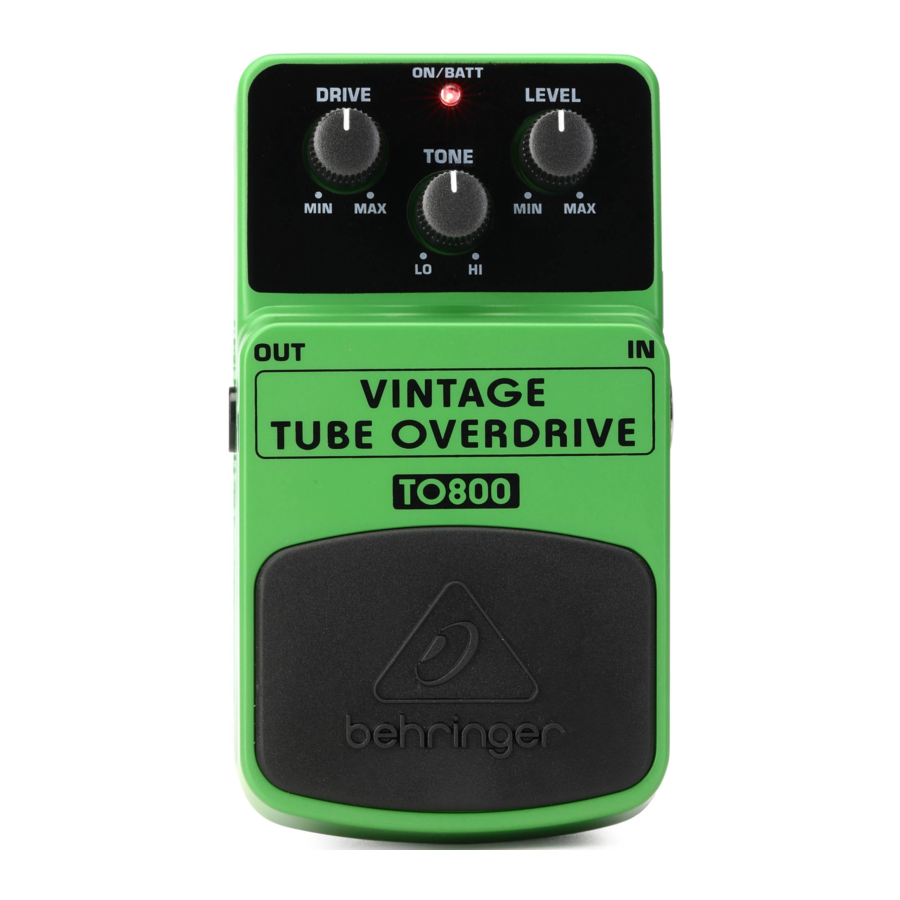

Controls

1. TheDRIVE control adjusts the intensity of the overdrive effect.
2. TheLEVEL control adjusts the output level.
3. TheTONE control allows you to shape your overall sound.
4. TheON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
5. Use the footswitch to activate/deactivate the effect.
6. Use this 1/4" TSIN connector to plug in the instrument cable.
7. The 1/4" TSOUT connector sends the signal to your amp.

Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

• The TO800 has no on/off switch. As soon as you insert the jack into the in connector, the TO800 begins running. When not using the TO800, remove the jack from the in connector. This extends the life of the battery.

The SERIAL NUMBER is located at the bottom.

Specifications

In
Connector	1/4" TS
Impedance	500 kΩ

In

Connector 1/4" TS

Impedance 1 kΩ

Power Supply
	9 V , 100 mA DC, regulated
PSU-SB-CN Behringer	220 VAC adaptor China
PSU-SB-EU Behringer	230 VAC adaptor Europe
PSU-SB-JP Behringer	100 VAC adaptor Japan
PSU-SB-SAA Behringer	240 VAC adaptor Australia
PSU-SB-UK 2 Behringer	40 VAC adaptor UK
PSU-SB-UL Behringer	115 VAC adaptor USA
Power connector	2 mm DC jack, negative center
Battery	9 V type 6LR61
Power consumption	30 mA

Physical/Weight
Dimensions (H x W x D)	approx. 2 1/8 x 2 3/4 x 4 4/5" approx. 54 x 70 x 123 mm
Weight	approx. 0.73 lbs / 0.33 kg

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.
Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice.

Safety Instruction

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Use only attachments/ accessories specified by the manufacturer.

10.
    Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

11. Do not install in a confined space, such as a book case or similar unit.
12. Do not place naked flame sources, such as lighted candles, on the apparatus.

• As with all small batteries, the batteries used with this product should be kept away from small children who still put things in
• their mouths. If they are swallowed, promptly call your local poison control center
• Always remove battery if consumed or if product is to be left unused for a long time
• Clean the battery contacts and also those of the device prior to battery installation
• Replacement of a battery with an incorrect type that can defeat a safeguard! Replace only with the same or equivalent type
• Replace all batteries of a set at the same time, ensure the batteries are installed correctly with the regard to polarity (+ and -)
• disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas
• Attention should be drawn to the environmental aspects of battery disposal
  Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

This high-quality effects pedal is ideally suited for giving electric guitars maximum flexibility with classic overdrive sounds that capture every nuance of your playing—from smooth overdrive to screaming tube sounds. Thanks to its high-performance features you get tube-like vintage-style distortion, smooth sustain and super fat tone.

Safety Instructions
Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.
